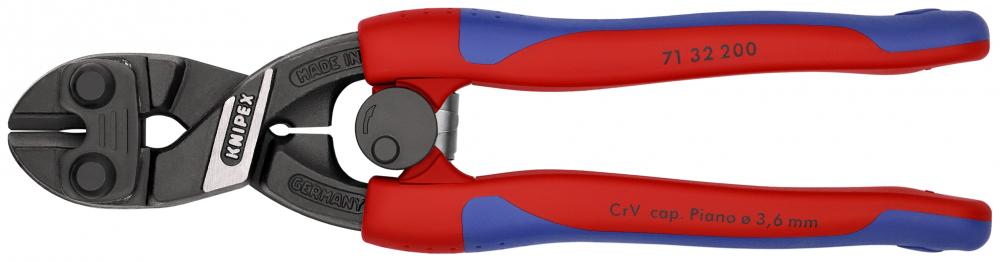

8" CoBolt® High Leverage Compact Bolt Cutters-Notched Blade (71 32 200)
by Knipex Tools
Product Specification
Item #
71 32 200
Dimensions
Height: 0.94"
Width: 2.19"
Additional product details
Vendor Item #
71 32 200
Industrial Category
Hand Tools
Industrial Subcategory
Cutting Tools
Industrial Subtype
Bolt Cutters
1000 Volt Insulated
No
Brand Name
KNIPEX
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
5/32"
Cutting Capacity - Medium Hard Wire (Nail)
13/64"
Cutting Capacity - Piano Wire
9/64"
Cutting Capacity - Soft Wire
1/4"
Cutting Capacity Hard Wire Steel Wire
5/32"
Cutting Capacity Medium Hard Wire Nail
13/64"
Cutting Capacity Piano Wire
9/64"
Cutting Capacity Soft Wire
1/4"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Center cut
Data Sheet Filename
7132200_en.pdf
ECCN
EAR99
Handle Length
5"
Handle Type
Slim multi-component
Harmonized Tariff Code
8203.40.3000
Included Products/Items
Surface Finish: Black atramentized
Item Height (inches)
15/16"
Item Height inches
15/16"
Item Length (inches)
8
Item Length inches
8"
Item Quantity
1
Item Weight (lbs)
0.839
Item Weight lbs
0.839
Item Width (inches)
2 3/16"
Item Width inches
2 3/16"
Joint Type
Rivet
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Nomintal Length mm
200
Packaging Height mm
30 mm
Packaging Length mm
211 mm
Packaging Width mm
66 mm
Prop 65 Conflict
No
Reach
contains SVHC
RoHS
not applicable
Spare Part
71 19 200 01
Sub Brand Name
CoBolt®
Surface Finish
Black atramentized
Tool Attributes
Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.
, Cuts materials like bolts, nails, rivets, etc. up to 1/4" dia.
, Cutting edge hardness approx. 64 HRC.
, Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters.
, Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
, Induction hardened edges cut soft, hard and piano wire.
, Opening spring and locking device are integrated in the handles for comfortable work and protected transport.
, Recess in the blade allows easier cutting of thicker wires, e.g. for anchor bolts in the false ceilings.
, The cutting force is about 20 times higher than hand force applied.
, The lever-action mechanism ensures an extremely favorable lever ratio with very little friction.
Tool Height mm
30 mm
Tool Length mm
200 mm
Tool Weight grams
370 g
Tool Width mm
65 mm
Unit Of Measure
Each
UNSPSC
27111512
UNSPSC Number
27111512
UOM Qty
1
UPC Code
843221008260
Manufactured By
Knipex Tools
Other Details:
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
- Cuts materials like bolts, nails, rivets, etc. up to 1/4" (6.0 mm) diameter
- Exceptional cutting performance with minimum effort because of lever action design
- Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters
- Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
- Induction hardened cutting edges (approx. 64 HRC) for cutting soft, hard and piano wire
- Opening spring and locking device are integrated in the handles for comfortable work and protected transport
- Recess in the blade allows easier cutting of thicker wires, the wire won't slip out
