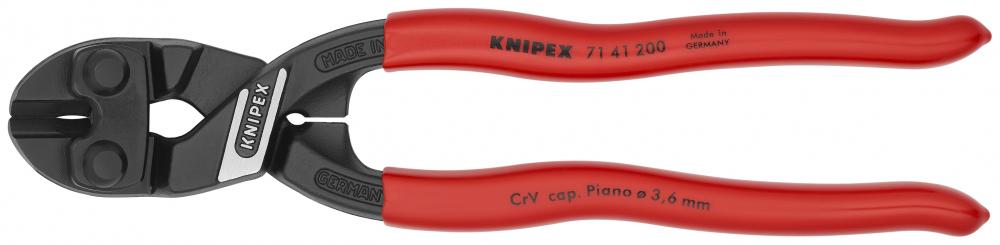

8" CoBolt® High Leverage 20° Angled Compact Bolt Cutters-Notched Blade (71 41 200 SBA)
by Knipex Tools
Product Specification
Item #
71 41 200 SBA
Dimensions
Height: 0.75"
Width: 1.80"
Additional product details
Vendor Item #
71 41 200 SBA
Industrial Category
Hand Tools
Industrial Subcategory
Cutting Tools
Industrial Subtype
Bolt Cutters
1000 Volt Insulated
No
Angled Head
20 degree
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
5/32"
Cutting Capacity - Medium Hard Wire (Nail)
13/64"
Cutting Capacity - Piano Wire
9/64"
Cutting Capacity - Soft Wire
1/4"
Cutting Capacity Hard Wire Steel Wire
5/32"
Cutting Capacity Medium Hard Wire Nail
13/64"
Cutting Capacity Piano Wire
9/64"
Cutting Capacity Soft Wire
1/4"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
ECCN
EAR99
Handle Type
Plastic coating
Harmonized Tariff Code
8203.40.3000
Included Products/Items
Surface Finish: Black atramentized
Item Height (inches)
3/4"
Item Height inches
3/4"
Item Length (inches)
8
Item Length inches
8"
Item Quantity
1
Item Weight (lbs)
0.725
Item Weight lbs
0.725
Item Width (inches)
1 13/16"
Item Width inches
1 13/16"
Joint Type
Rivet
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Nomintal Length mm
200
Package Height (inches)
0.9"
Package Height inches
0.9"
Package Length (inches)
10.85"
Package Length inches
10.85"
Package Weight (lbs)
0.76
Package Weight lbs
0.76
Package Width (inches)
3.3"
Package Width inches
3.3"
Packaging Height mm
92 mm
Packaging Length mm
344 mm
Packaging Width mm
115 mm
Prop 65 Conflict
No
Reach
contains SVHC
RoHS
not applicable
Sub Brand Name
CoBolt®
Surface Finish
Black atramentized
Tool Attributes
20 degree angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping.
, Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened.
, Cuts materials like bolts, nails, rivets, etc. up to 1/4" dia.
, Cutting edge hardness approx. 64 HRC.
, Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters.
, Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
, Induction hardened edges cut soft, hard and piano wire.
, Recess in the blade allows easier cutting of thicker wires, e.g. for anchor bolts in false ceilings.
, The cutting force is about 20 times higher than hand force applied.
, The lever-action mechanism ensures an extremely favorable lever ratio with very little friction.
Tool Height mm
21 mm
Tool Weight grams
335 g
Tool Width mm
115 mm
Unit Of Measure
Each
UNSPSC
27111512
UNSPSC Number
27111512
UOM Qty
1
UPC Code
843221008819
Manufactured By
Knipex Tools
Other Details:
- 20˚ angled head with single-sided joint bar and diagonal cutting edge for flush cutting; with space for gripping
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
- Cuts materials like bolts, nails, rivets, etc. up to 1/4" (6.0 mm) diameter
- Exceptional cutting performance with minimum effort because of lever action design
- Exceptional cutting performance: 60% less effort compared to conventional high leverage diagonal cutters
- Gripping surface below the joint for gripping and pulling wires with a diameter from 3/64"
- Induction hardened cutting edges (approx. 64 HRC) for cutting soft, hard and piano wire
- Micro-structured cutting edges allow easy cutting of large cross-sections
- Recess in the blade allows easier cutting of thicker wires, the wire won't slip out
