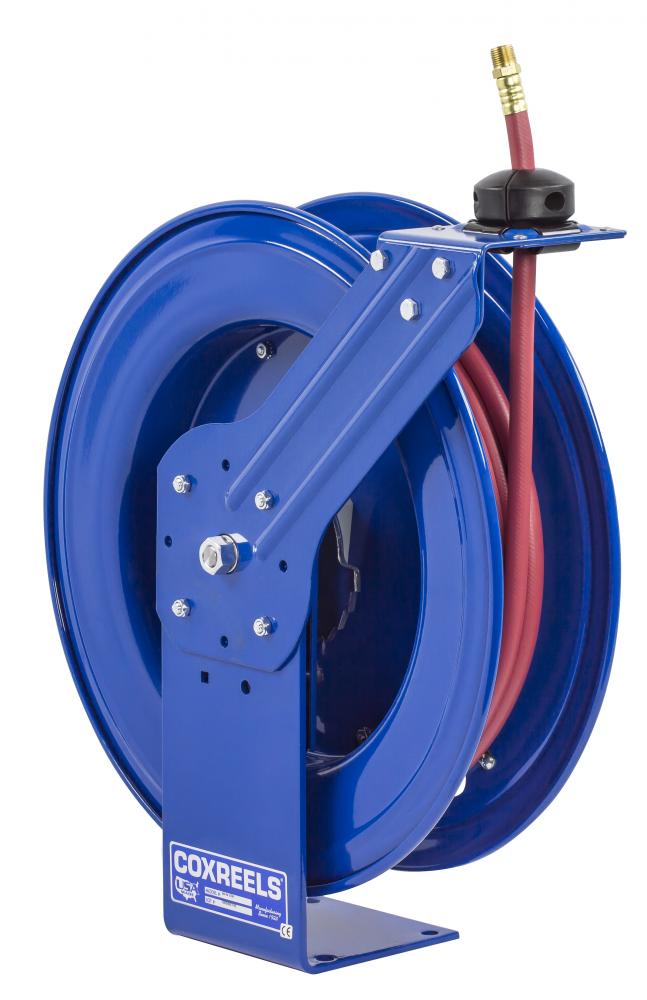

Heavy Duty Spring Driven Hose Reel 3/8inx100ft 300PSI (SH-N-3100)
by Coxreels
Coxreels SH-N-3100 Low Pressure Spring Rewind Hose Reel with Super Hub™: 3/8" I.D, 100' hose capacity, with hose, 300 PSI
Product Specification
Item #
SH-N-3100
Dimensions
Height: 21.25"
Width: 8.25"
Additional product details
Vendor Item #
SH-N-3100
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
24.00
Item Quantity
1
Item Weight (lbs)
71
Ordering Quantity
1
Product Series
SH Series
Spec 01
ID: 3/8"
Spec 02
OD: 5/8"
Spec 03
Length: 100'
Spec 04
Reel Inlet: 3/8" (F)NPT
Spec 05
Hose Material: PVC
Spec 06
PSI: 300
UPC Number
0674255729551
Manufactured By
Coxreels
Other Details:
- 1" solid steel axle and lubricated precision bearings for smooth rotation
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned and matched cartridge-style spring motor.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet.
- Guide arm adjusts to wall, floor, vehicle & overhead positions.
- Leading 2-year manufacturer's limited warranty
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- Multi-position lock ratchet mechanism secures hose at desired length.
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- PVC red hose
- Rolled edges & ribbed discs provide strength & safety
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability.
- Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system.
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
