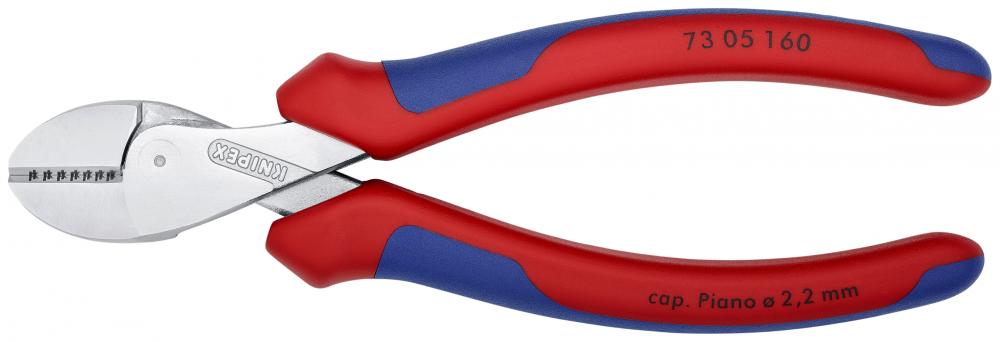

6 1/4" X-Cut® Compact Diagonal Cutters (73 05 160)
by Knipex Tools
Product Specification
Item #
73 05 160
Dimensions
Height: 0.90"
Width: 2.10"
Additional product details
Vendor Item #
73 05 160
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
1000 Volt Insulated
No
Brand Name
KNIPEX
Color
Red/Blue
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Cu and Al conductor
15/32"
Cutting Capacity - Hard Wire (Steel Wire)
7/64"
Cutting Capacity - Medium Hard Wire (Nail)
5/32"
Cutting Capacity - Piano Wire
3/32"
Cutting Capacity - Soft Wire
3/16"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
Data Sheet Filename
7305160_en.pdf
DIN
DIN ISO 5749
ECCN
EAR99
Handle Type
Multi-component
Harmonized Tariff Code
8203.20.6060
Included Products/Items
Surface Finish: Chrome Plated
Item Height (inches)
7/8"
Item Height inches
7/8"
Item Length (inches)
6.25
Item Length inches
6 1/4"
Item Quantity
1
Item Weight (lbs)
0.395
Item Weight lbs
0.395
Item Width (inches)
2 1/8"
Item Width inches
2 1/8"
Joint Type
Box-joint with rivet
Joint Type 2
Fixed Joint
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Package Height (inches)
1.2"
Package Height inches
1.2"
Package Length (inches)
6.9"
Package Length inches
6.9"
Package Weight (lbs)
0.433
Package Weight lbs
0.433
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
51 mm
Packaging Length mm
264 mm
Packaging Width mm
94 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Sub Brand Name
X-Cut®
Surface Finish
Chrome Plated
Tool Attributes
40% less effort required compared to diagonal cutters of the same length
, Box-joint design for highest stability at low weight
, Chrome plated for better chemical resistance
, Cuts precisely - even through fine copper wires
, Cutting capacity - up to 3/16" for soft wire, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
Tool Height mm
50 mm
Tool Length mm
160 mm
Tool Weight grams
175 g
Tool Width mm
60 mm
Unit Of Measure
Each
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
1
UPC Code
843221020361
Manufactured By
Knipex Tools
Other Details:
- 40% less effort required compared to diagonal cutters of the same length
- Box-joint design for highest stability and lightweight
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
- Compact, low weight construction
- Cuts all wires precisely, even fine copper wires
- Cuts fine strands as well as multi-stranded cables and piano wires
- Cutting capacity - up to 3/16" for soft, up to 5/32" for medium, up to 7/64" for hard , up to 3/32" for piano wire and up to 15/32" for Cu and Al multi conductor cable
- Double supported joint axis for heavy-duty work
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Large opening width for thicker cables
- Powerful, light weight and a universal cutter
- Universal usage in the assembly, maintenance and production
