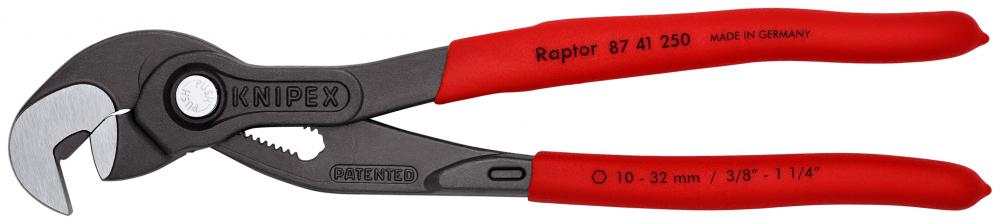

10" Raptor™ Pliers (87 41 250)
by Knipex Tools
Product Specification
Item #
87 41 250
Dimensions
Height: 0.75"
Width: 1.85"
Additional product details
Vendor Item #
87 41 250
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Tongue and Groove Pliers
1000 Volt Insulated
No
Accessory Part Number
87 09 250 V01
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Data Sheet Filename
8741250_en.pdf
ECCN
EAR99
Gripping Surface
Smooth
Handle Length
8"
Handle Type
Non-slip plastic
Harmonized Tariff Code
8204.12.0000
Included Products/Items
Gripping Surface: Smooth
Item Height (inches)
3/4"
Item Height inches
3/4"
Item Length (inches)
10
Item Length inches
10"
Item Quantity
1
Item Weight (lbs)
0.75
Item Weight lbs
0.75
Item Width (inches)
1 7/8"
Item Width inches
1 7/8"
Joint Type
Box-joint
Joint Type 2
Adjustable
Material Type
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex
3/8" to 1 1/4"
Max Jaw Opening - Working Capacity
3/8" to 1 1/4"
Max Jaw Opening Hex
3/8" to 1 1/4"
Nomintal Length mm
250
Number of Adjustment Positions
15
Other Surface Finish
Grey atramentized
Package Height (inches)
0.8"
Package Height inches
0.8"
Package Length (inches)
10.6"
Package Length inches
10.6"
Package Weight (lbs)
0.794
Package Weight lbs
0.794
Package Width (inches)
2.4"
Package Width inches
2.4"
Packaging Height mm
51 mm
Packaging Length mm
264 mm
Packaging Width mm
94 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Spare Part
87 09 01
Sub Brand Name
Raptor™
Surface Finish
Polished jaws
Tool Attributes
15 fine adjustments of optimum adaptation to different size workpieces and a comfortable gripping position.
, Adjustment at the touch of a button directly on the workpiece, one-hand operation.
, Box-joint design: high stability because of double guide.
, Chrome vanadium electric steel; forged, multi stage oil-hardened.
, Combines the convenience of the push-button adjustment on the workpiece and the function of an all-purpose tightening tool.
, Favorable lever action: optimum transmission of force.
, For use with inch and metric nuts and screws with widths across flats from 3/8" to 1 1/4" - self-locking in the range from 11/16": no slipping off the workpiece.
, Ideal for work on vehicle brake systems.
, Pinch guard prevents operators' fingers being pinched.
, Quick tightening of nuts and bolts using ratchet action.
, Reliable and tight gripping of rounded, rusty or overly painted nuts and screws.
, Reliable catching of the hinge bolt: no unintentional shifting.
, Replaces a set of wrenches, ideal for tightening locknuts.
Tool Height mm
13 mm
Tool Length mm
250 mm
Tool Weight grams
328 g
Tool Width mm
48 mm
Unit Of Measure
Each
UNSPSC
27112112
UNSPSC Number
27112112
UOM Qty
1
UPC Code
843221003210
Manufactured By
Knipex Tools
Other Details:
- 15 fine adjustments of optimum adaptation to different size workpieces and a comfortable gripping position
- Adjustment at the touch of a button directly on the workpiece, one-hand operation
- Box-joint design: high stability because of double guide
- Chrome vanadium electric steel; forged, multi stage oil-hardened
- Combines the convenience of the push-button adjustment on the workpiece and the function of an all-purpose tightening tool
- Favorable lever action: optimum transmission of force
- For use with inch and metric nuts and screws with widths across flats from 3/8" to 1 1/4" - self-locking in the range from 11/16": no slipping off the workpiece
- Ideal for work on vehicle brake systems
- Pinch guard prevents operators' fingers being pinched
- Quick tightening of nuts and bolts using ratchet action
- Reliable and tight gripping of rounded, rusty or overly painted nuts and screws
- Reliable catching of the hinge bolt: no unintentional shifting
- Replaces a set of wrenches, ideal for tightening locknuts
Packaging Width mm
Additional options that would change other selections
Tool Weight grams
Additional options that would change other selections
Tool Width mm
Additional options that would change other selections
UPC Code
Additional options that would change other selections
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
