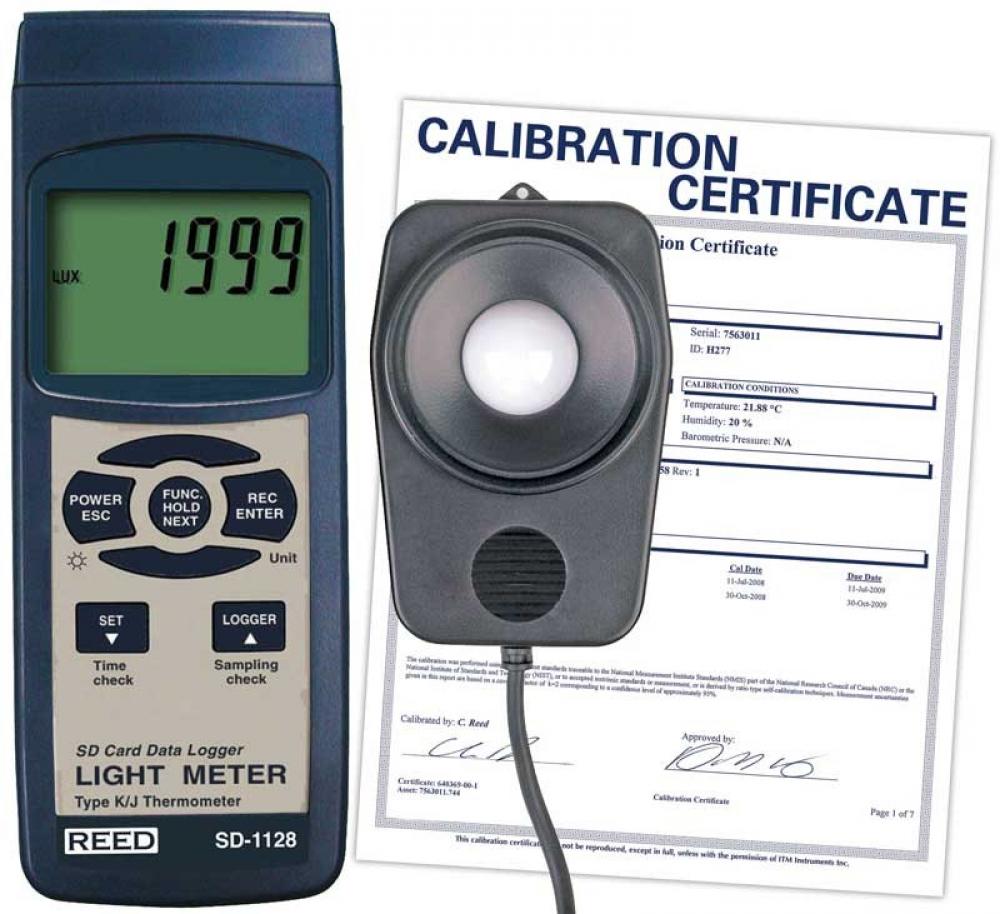

REED SD-1128 SD Series Light Meter, Datalogger, 100,000 Lux / 10,000 Foot Candles (Fc), w/ Temp
Image may not reflect selected features
REED SD-1128 SD Series Light Meter, Datalogger, 100,000 Lux / 10,000 Foot Candles (Fc), w/ Temp (SD-1128-NIST) by ITM - Reed Instruments
Datalogger with date/time stamp stores measurements on SD memory card without the need for software. This product includes NIST Traceable Certificate with full Data and Uncertainties.
Downloads
Product Specification
Item #
SD-1128-NIST
Dimensions
Additional product details
Vendor Item #
SD-1128-NIST
Industrial Category
Test Instruments
Industrial Subcategory
Nonelectrical Properties Testing
Industrial Subtype
Light Meters
Bullet 1
Measures ambient light levels in Foot Candles or Lux
Bullet 10
Tripod mount for long-term monitoring
Bullet 11
Low battery indicator and auto shut off
Bullet 2
Photo diode and colour correction filters meet C.I.E. spectrum specifications
Bullet 3
Contact temperature measurement with a type J/K thermocouple option
Bullet 4
Temperature is measured inC orF
Bullet 5
Real time data logger with integral SD memory card
Bullet 6
User selectable sampling rate from 1 to 3600 seconds
Bullet 7
Large, easy-to-read backlit LCD display
Bullet 8
Data hold and Min/Max functions
Bullet 9
Optional PC software features live tracking via USB connection
Includes
Detachable Sensor, Sensor Cover, Batteries, NIST Traceable Certification
Item Height (inches)
1.9
Item Length (inches)
7
Item Quantity
1
Item Weight (lbs)
1.08125
Item Width (inches)
2.7
Package Height (inches)
2.4
Package Length (inches)
7.5
Package Weight (lbs)
1.5
Package Width (inches)
3.2
PDF 1
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/datasheet/r8500-3-9mm-datasheet.pdf
PDF 2
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r8500-3-9mm/manual/r8500-3-9mm-manual.pdf
Manufactured By
ITM - Reed Instruments
