REED R5003-NIST Dual Input True RMS AC Voltage/Current Datalogger, includes NIST Traceable Cert
Image may not reflect selected features
REED R5003-NIST Dual Input True RMS AC Voltage/Current Datalogger, includes NIST Traceable Cert (R5003-NIST) by ITM - Reed Instruments
Stores up to 256,000 measurements with user programmable sampling rates. This product includes NIST Traceable Certificate with full Data and Uncertainties.
Downloads
Product Specification
Item #
R5003-NIST
Dimensions
Additional product details
Vendor Item #
R5003-NIST
Industrial Category
Test Instruments
Industrial Subcategory
Electrical Power Testing
Industrial Subtype
Power Meters and Analyzers
Bullet 1
Datalog up to 256,000 AC voltage and current measurements
Bullet 2
Dual input measures 2 voltage/current measurements or 1 of each
Bullet 3
LCD simultaneously displays time/date, current readings and Max/Min readings
Bullet 4
User adjustable sample rate from 1 sec to 24 hrs
Bullet 5
High and low alarms
Bullet 6
Download measurements via USB interface and analyze results with included software
Bullet 7
Magnetic back allows instrument and sensors to be secured firmly in a variety of locations
Bullet 8
Low battery indicator and auto shut off
Includes

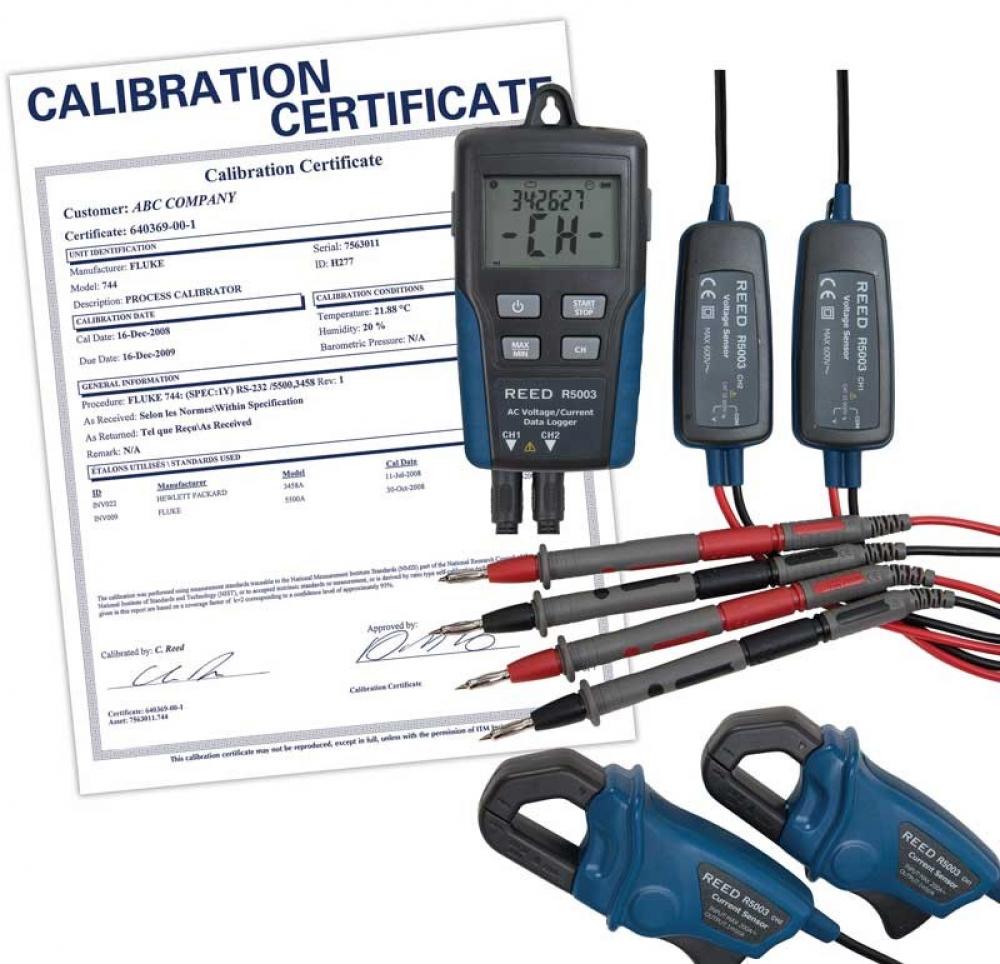

AC Current Clamp Sensors (2), Voltage Sensors (2), Large Alligator Clips (4), Basic Test Probes (4), USB Cable, Software, AC Adapter, Batteries, NIST Traceable Certification
Item Height (inches)
1.3
Item Length (inches)
4.5
Item Quantity
1
Item Weight (lbs)
0.54375
Item Width (inches)
2.5
Package Height (inches)
1.8
Package Length (inches)
5
Package Weight (lbs)
1
Package Width (inches)
3
PDF 1
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r5003/datasheet/r5003-datasheet.pdf
PDF 2
http://www.reedinstruments.com/pdfs/cache/www.reedinstruments.com/r5003/manual/r5003-manual.pdf
Manufactured By
ITM - Reed Instruments
