Supreme Duty Spring Driven Hose Reel 1/2inx75ft 300PSI
Image may not reflect selected features
/vendors/8252/large/TSH-Series-05.jpg
additional image
additional image
additional image
additional image

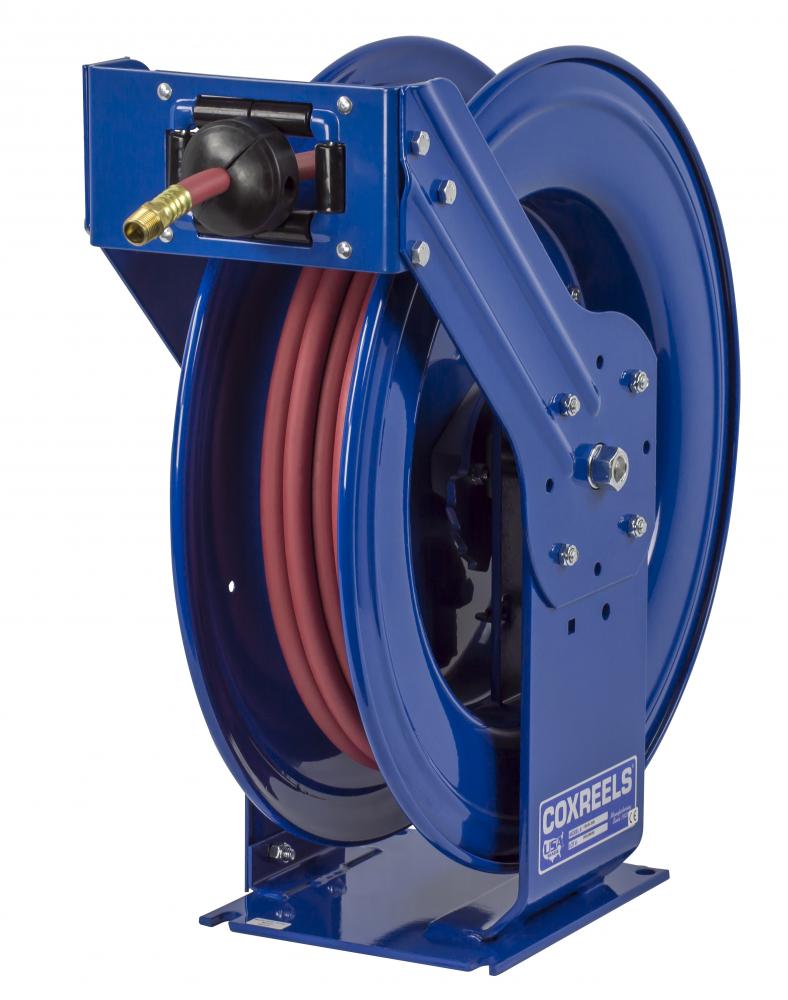

Supreme Duty Spring Driven Hose Reel 1/2inx75ft 300PSI (TSH-N-475) by Coxreels
Coxreels TSH-N-475 Supreme Duty Spring Rewind Hose Reel for air/water: 1/2" I.D., 75' hose, 300 PSI
Downloads
Product Specification
Item #
TSH-N-475
Dimensions
Height: 25.50"
Width: 9.38"
Additional product details
Vendor Item #
TSH-N-475
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
24.00
Item Quantity
1
Item Weight (lbs)
82
Ordering Quantity
1
Product Series
T Series
Spec 01
ID: 1/2"
Spec 02
OD: 3/4"
Spec 03
Length: 75'
Spec 04
Reel Inlet: 1/2" (F)NPT
Spec 05
Hose Material: PVC
Spec 06
PSI: 300
UPC Number
0674255720893
Manufactured By
Coxreels


Other Details:
  • 1" solid steel axle & lubricated precision bearings for smooth rotation
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ triple axle support
  • Built for rugged mobile applications
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • Durable proprietary CPC™ powder coat process
  • Enclosed factory tuned & matched cartridge-style spring motor
  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • Multi-position lock ratchet mechanism secures hose at desired length
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
  • Professional grade heavy duty steel construction
  • PVC red hose
  • Rolled edges & ribbed discs provide strength & safety
  • Solid one piece, heavy gauge 1⁄4" steel base & support posts for maximum strength
  • Sturdy dual pedestal reel features Coxreels’ exclusive Super Hub™ triple axle support system
  • SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Swivel Seals: NITRILE
UPC Number
Additional options that would change other selections
Spec 02
Additional options that would change other selections
Spec 06
Additional options that would change other selections
Spec 01
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
0
00
/ / 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
