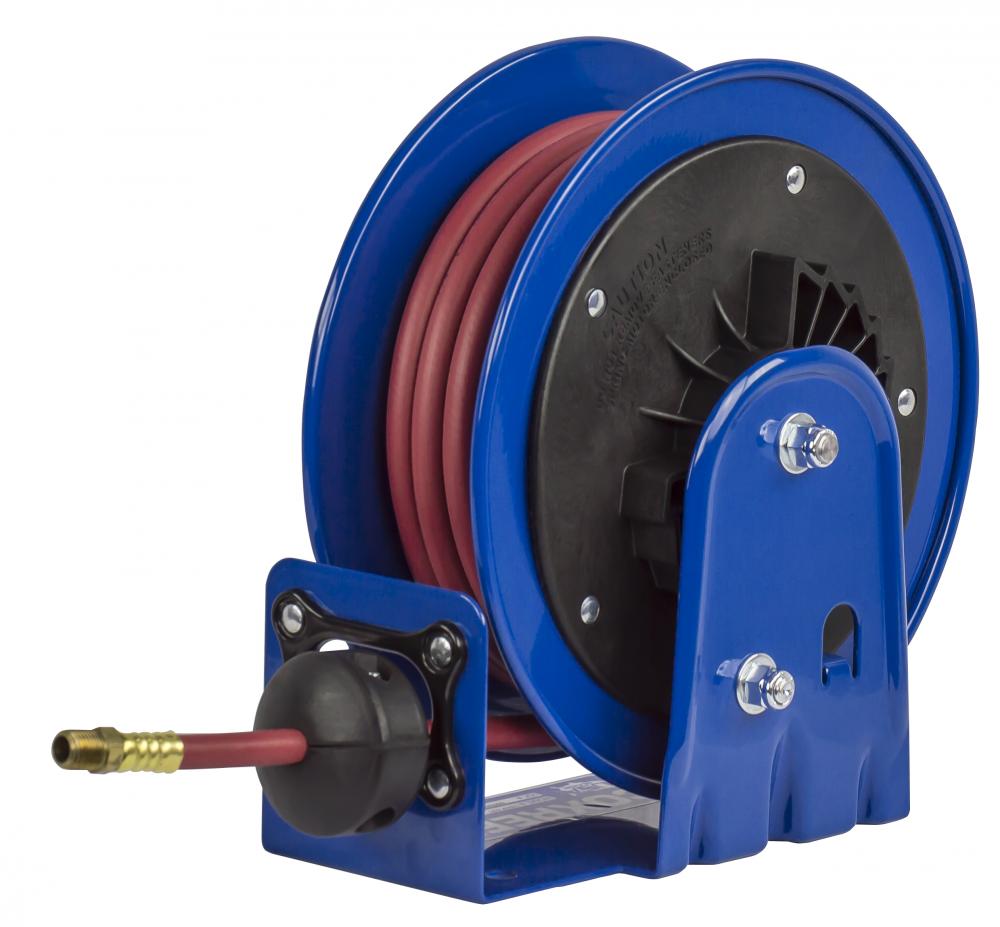

Compact Spring Driven Hose Reel 1/4inx25ft 300PSI (LG-LP-125)
by Coxreels
Coxreels LG-LP-125 Compact Low Pressure Spring Rewind Hose Reel: 1/4" I.D., 25' hose capacity, with hose, 300 PSI
Product Specification
Item #
LG-LP-125
Dimensions
Height: 10.63"
Width: 5.25"
Additional product details
Vendor Item #
LG-LP-125
Industrial Category
Pneumatics
Industrial Subcategory
Hose Reels
Industrial Subtype
Spring Return Hose Reels
Country of Origin
USA
Currency Code
Dollars
Item Length (inches)
10.50
Item Quantity
1
Item Weight (lbs)
11
Ordering Quantity
1
Product Series
LG Series
Spec 01
ID: 1/4"
Spec 02
OD: 1/2"
Spec 03
Length: 25'
Spec 04
Reel Inlet: 1/4" (F)NPT
Spec 05
Hose Material: PVC
Spec 06
PSI: 300
UPC Number
0674255735767
Manufactured By
Coxreels
Other Details:
- 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Compact and lightweight spring driven hose reel save space and facilitate workplace organization.
- CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
- Durable proprietary CPC™ powder coat process
- Enclosed factory tuned and matched cartridge-style spring motor.
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet.
- GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
- Leading 2-year manufacturer's limited warranty
- Non-corrosive CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
- Professional grade heavy duty steel construction
- PVC red hose
- RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
- Rolled edges & ribbed discs provide strength & safety
- Solid one piece, 12GA steel base and support post for maximum stability.
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Swivel Seals: NITRILE
- ½” solid steel axle and lubricated precision bearings for smooth rotation
