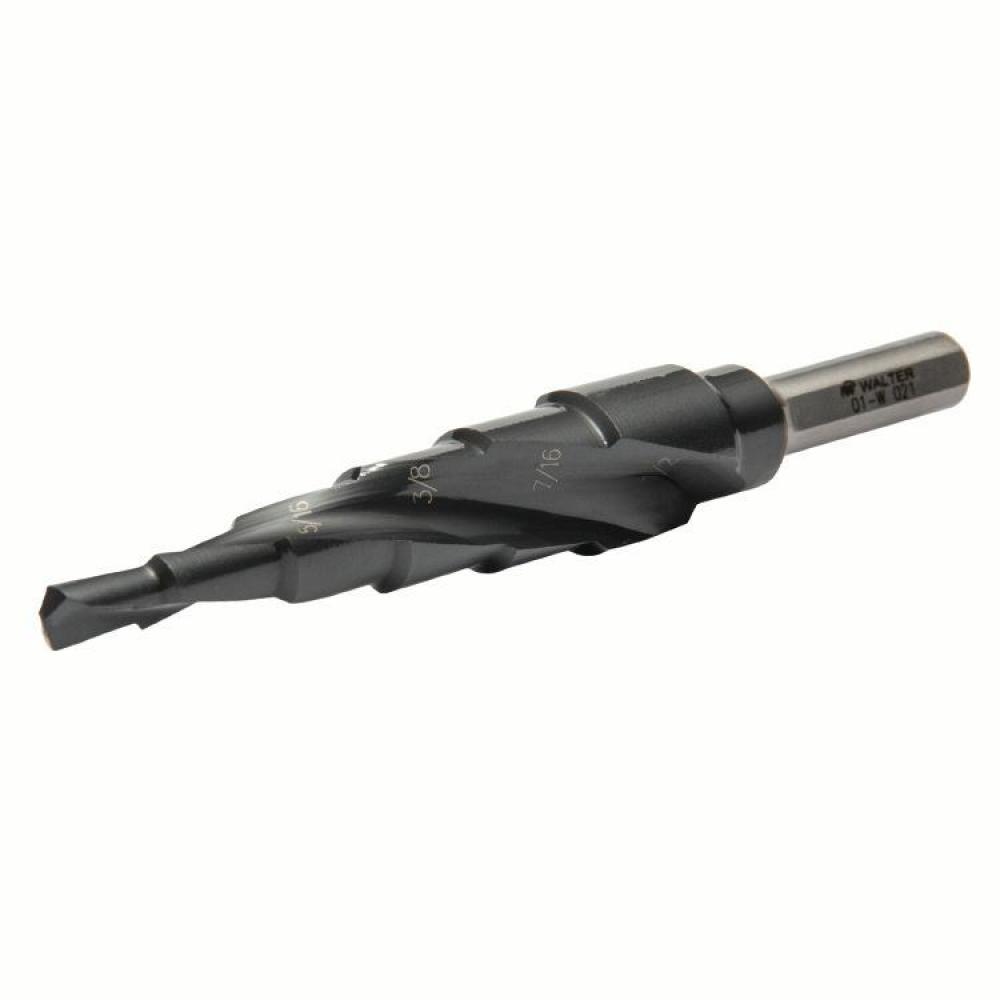

3/16"-1/2" MULTI-STEP DRILL
Image may not reflect selected features
3/16"-1/2" MULTI-STEP DRILL (01W021) by Walter Surface
Step drill bits
Downloads
Product Specification
Item #
01W021
Dimensions
Height: 1.30"
Width: 1.30"
Additional product details
Vendor Item #
01W021
Industrial Category
Power Tools
Industrial Subcategory
Drilling Accessories
Industrial Subtype
Step Drill Bits
Angle
135°
Country of Origin
CN
Diameter
3/16 to 1/2 in.
Family
Tooling
Item Length (CM)
7.9
Item Weight (KG)
0.042
Material / For use on:
Other materials < 1/8"; Sheet metal < 1/8"; Stainless steel < 1/8"
Minimum Order
1
Order Minimum
1
Overall Length
3-1/8 in.
Packaging Type
Plastic Tube
Prod Tech Tips 1
Always drill at right angle to workpiece
Prod Tech Tips 2
Reduce speed when diameter of step increases
Product Applications 01
Cutting or enlarging holes in sheet material
Shank Diameter
1/4 in.
Tooling Drill Size
3/16" - 1/2"
Tooling Drill Size Equivalent
E
Tooling Finish
ICECUT (AlCrN coating)
Tooling Flute Design
Spiral
Tooling Flute Direction
Right hand
Tooling Flute Length
2-1/4"
Tooling Flute Quantity
2
Tooling Material Madeof
High Speed Steel
Tooling Overall Length
3-1/8"
Tooling Point Angle
118° Point
Tooling Point Type
Conventional Point
Tooling Sets
No
Tooling Shank Size
1/4"
Tooling Shank Type
3-Flats Shank
Tooling Step Drill Max Size
1/2"
Tooling Step Drill Min Size
3/16"
Tooling Step Drill Step Depth
3/8"
Tooling Step Drill Step Increment
1/16"
Tooling Step Drills Step Number
6
Tooling System Of Measurement
Fractional
Trade Name
Multi-Step
UPC Code
662980336229
Manufactured By
Walter Surface


Other Details:
  • 2 wide flutes eliminate chip build-up and chatter
  • 3-flats shank for reduced slippage in drill chucks
  • ICECUT coating for increased wear resistance and life
  • Point is self-centering
  • Straight flutes for better surface finish, spiral flutes for faster operation
