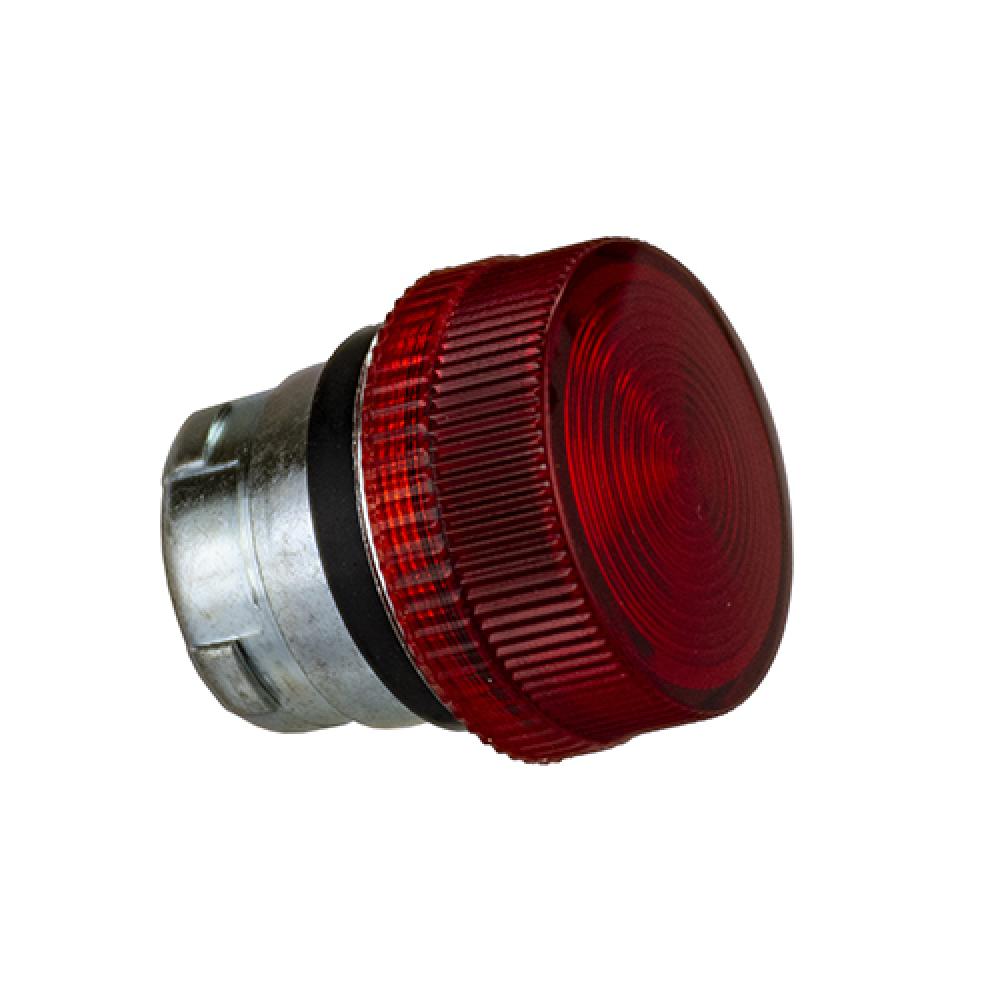

Pilot Light Head, red (PB-BV04)
by Techspan
Product Specification
Item #
PB-BV04
Dimensions
Additional product details
Vendor Item #
PB-BV04
Industrial Category
Electrical Supplies
Industrial Subcategory
Push Buttons
Industrial Subtype
Electrical Control Pilot Lights
Push Button Approval
UL, cUL, CSA, CE
Push Button Cabling Capacity
1x0.5mm2….2x1.5mm2
Push Button Colour
Red
Push Button Contact Operation
Slow action, Positive Opening
Push Button Contact Resistance
≤ 25 milli OHM
Push Button Die Strength
2.5KV for 1 minute
Push Button Insulation Category
Group C conforming to NF C 20-040, VDE 0110
Push Button Insulation Resistance
2M Ohm min (500 VDC)
Push Button Insulation Voltage
500V conforming to IEC 60947-1, UL 508 & CSA 22-2n°14
Push Button Knob Size
ᶲ25mm
Push Button Mechanical Interlock
All working positions are allowed
Push Button Operating Force
Push Buttons - 1 'NO'=10N, 1'NC'=8 Additional contacts - 'NO'=+5N, 'NC'=+3N
Push Button Pollution Degree
3
Push Button Protection Degree
-
Push Button Rated Power
Conforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
Push Button Reference Standard
IEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n°14
Push Button Shock Resistance
Push Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
Push Button Short Circuit Protection
10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
Push Button Temperature
-40°C ~ + 70°C (Storage) -25°C + 70°C (Working)
Push Button Thermal Current
10A
Push Button Vibration Resistance
→60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40Hz
Push Button Working Position
All Working positions are allowed
Unit Priced
EA
Manufactured By
Techspan
Other Details:
- 105
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
