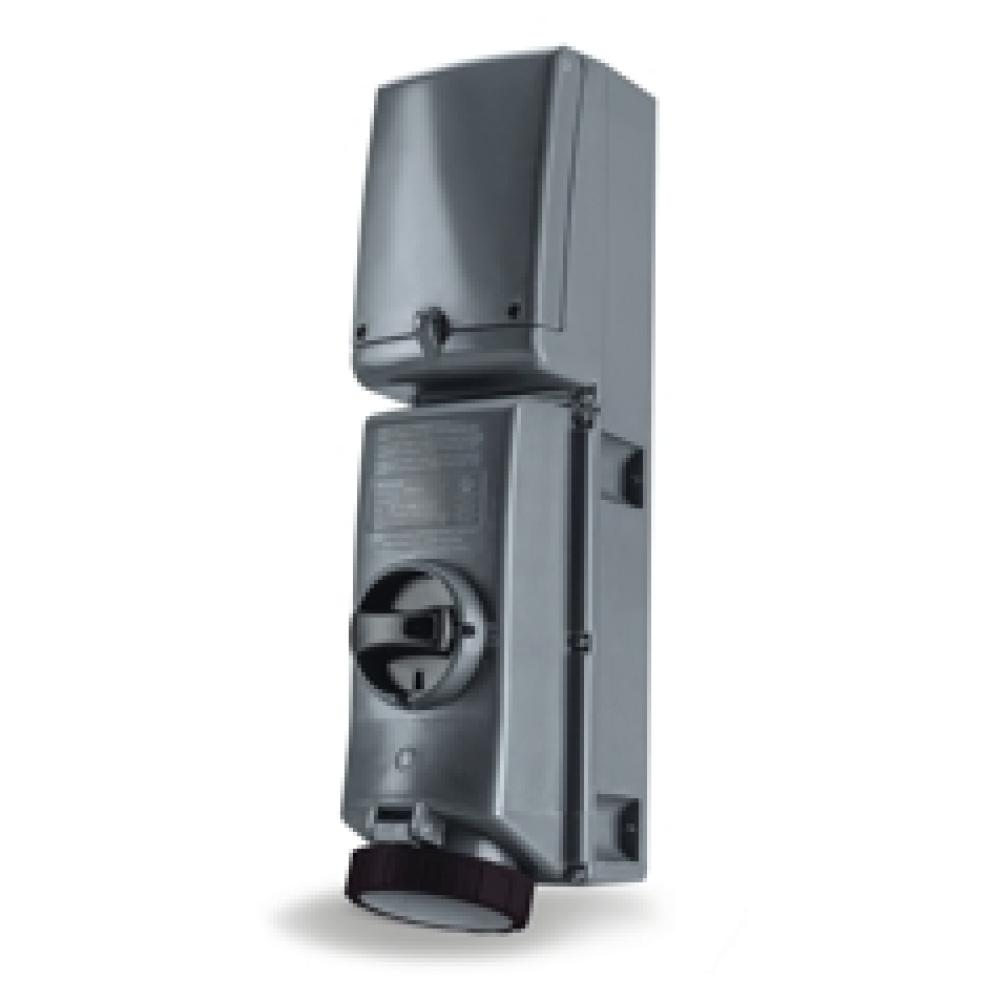

MECHANICAL INTERLOCK - 30A 4P 5W 5H 600V Black (SCM530MI5W-C)
by Techspan
Product Specification
Item #
SCM530MI5W-C
Dimensions
Additional product details
Vendor Item #
SCM530MI5W-C
Industrial Category
Electrical Supplies
Industrial Subcategory
Plugs and Receptacles
Industrial Subtype
Mechanical Interlock Devices
Pin Sleeve Clock Position
5h
Pin Sleeve Colour
Grey RAL7037
Pin Sleeve Colour Coding
Black
Pin Sleeve Frequency
50÷60Hz
Pin Sleeve Insulating Voltage
500/690V~
Pin Sleeve Material
Thermosetting
Pin Sleeve Max Op Amb Temp
+70°C
Pin Sleeve Min Op Amb Temp
-40°C
Pin Sleeve Op Temp Ref Standard
-25°C + 40°C
Pin Sleeve Padlock
5
Pin Sleeve Poles Wires
4P 5W
Pin Sleeve Rated Current
30A
Pin Sleeve Rated Voltage
500 - 690 V~
Pin Sleeve Self Extinguishing Gw Test
960°C
Pin Sleeve Self Extinguishing Ul94
V0
Pin Sleeve Terminal Capacity Auxiliary Contact
10-18 AWG (1.5÷10mm2)
Pin Sleeve Terminal Capacity Wire Size Range
16-6 AWG (1.5÷10mm2)
Pin Sleeve Terminal Torque Auxiliary Contact
0.8 Nm (7lb•in)
Pin Sleeve Terminal Torque Ground
0.8 Nm (7lb•in)
Pin Sleeve Terminal Torque Pilot
-
Pin Sleeve Terminal Torque Switch
0.8 Nm (7lb•in)
Pin Sleeve Type Mechanical Interlocks
With Base and Consumer Unit
Unit Priced
EA
Manufactured By
Techspan
Other Details:
- 103
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
