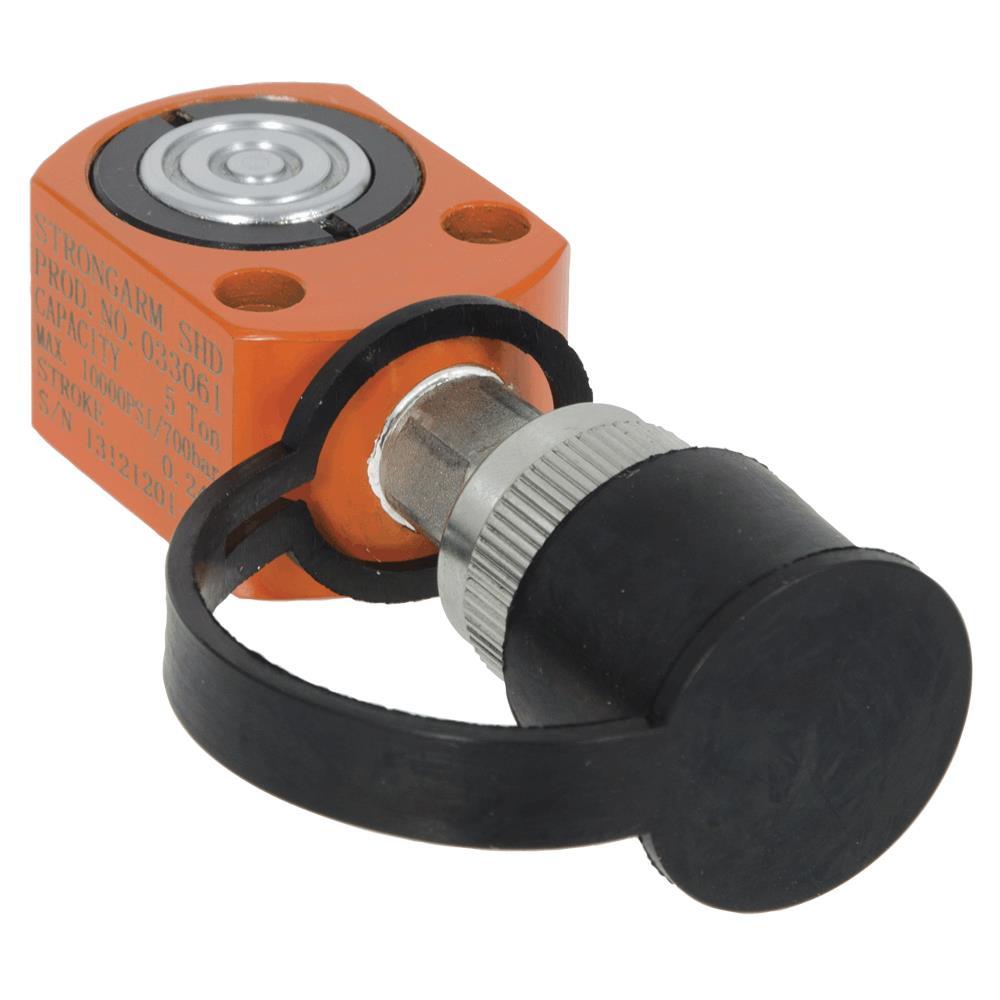

Low Height Single Acting Cylinders (033061)
by Strongarm
Strongarm® Low Height Single Acting Cylinder have a low profile when full retracted and provide an ideal solution for tight or confined spaces. They can be attached to hydraulic pumps to support heavy loads and pressure up to 10,000 psi.
Downloads
Product Specification
Item #
033061
Dimensions
Height: 2.85"
Width: 3.65"
Additional product details
Vendor Item #
033061
Industrial Category
Hydraulics
Industrial Subcategory
Hydraulic System Components
Industrial Subtype
High Pressure Hydraulic Cylinders
Brand
JET
Capacity @ 700 Bar (10,000 PSI)
5
Collapsed Height (A)
1.3"
Country of Origin
CN
Duty Level
Super Heavy Duty
Each Qty.
1
Effective Area
1.10 in²
Extended Height (B)
1.54"
Harmonized Tariff Code
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code
8302.49.00.90
Inner Pack Qty.
0
Item Height (inches)
2.85
Item Length (inches)
7.45
Item Quantity
1
Item Weight (lbs)
1.6250
Item Width (inches)
3.65
Master Pack Code
10059629998226
Model Number
SACL50
Oil Capacity
0,26 in³
Ordering Quantity
1
Outside Diameter (D)
2.32" x 1.65"
Package Quantity
1
Package UPC
10059629886035
Piston Rod Diameter (F)
0.98"
Quantity
1
Rated Capacity
5 T
Spring Return
Yes
Stroke Length
0.24"
Top Dimension (L)
0.83"
Top Dimension (M)
0.91"
Top Dimension (U)
1.12"
Top Dimension (V)
0.22"
UOM
EA
UPC
059629886038
UPC Code
059629998229
UPC Number
059629998229
Manufactured By
Strongarm
Other Details:
- Grooved plunger end with threaded hole for mounting tilt saddles
- Heavy duty plunger return springs
- High strength alloy steel for durability
- Mounting holes for fixture attachment
