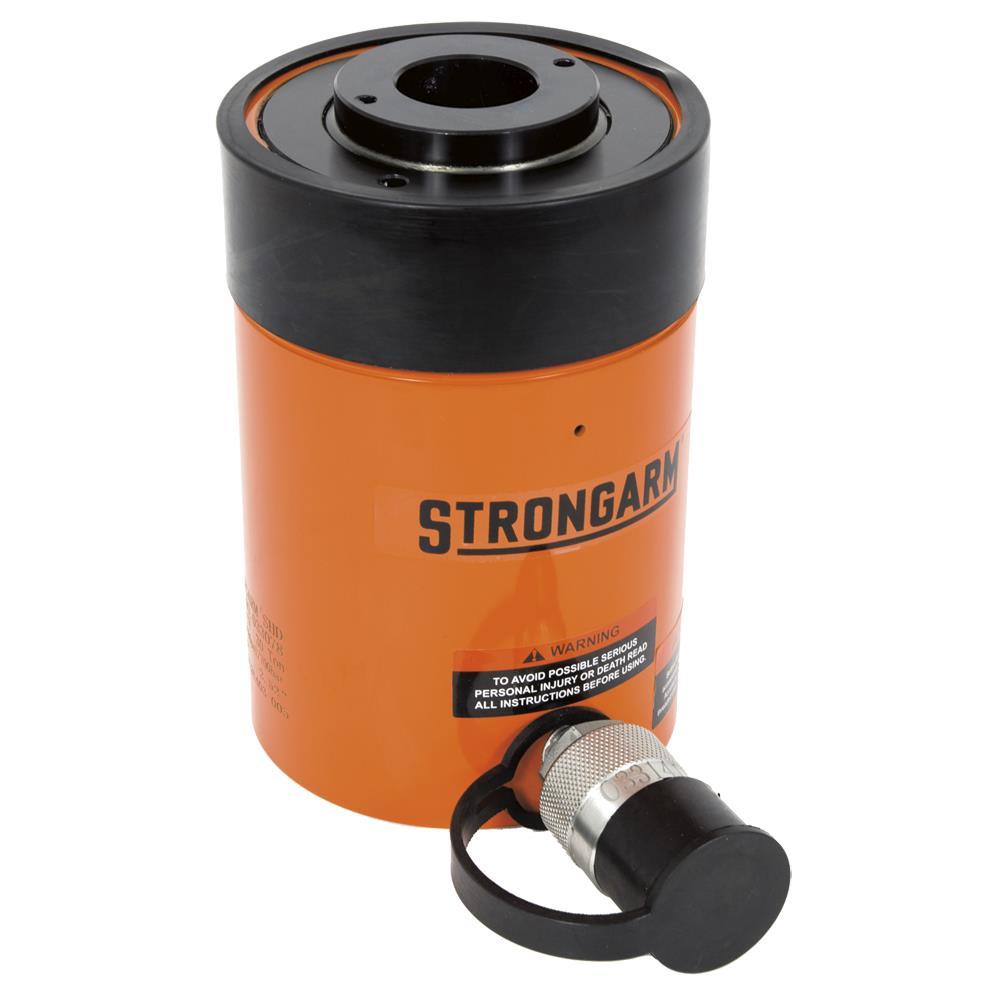

Hollow Centre Single Acting Cylinders (033078)
by Strongarm
Downloads
Product Specification
Item #
033078
Dimensions
Height: 6.00"
Width: 8.10"
Additional product details
Vendor Item #
033078
Industrial Category
Hydraulics
Industrial Subcategory
Hydraulic System Components
Industrial Subtype
High Pressure Hydraulic Cylinders
Base Fixturing Holes - Bolt Circle (U)
3.63"
Base Fixturing Holes - Thread (V)
3/8"-16UNC
Base Fixturing Holes - Thread Depth (Z)
0.55"
Brand
JET
Capacity @ 700 Bar (10,000 PSI)
30
Centre Hole Diameter (Y)
1.31"
Collapsed Height (A)
7.01"
Collar Thread (C)
4-1/2" - 12
Collar Thread Length (X)
1.65"
Country of Origin
CN
Duty Level
Super Heavy Duty
Each Qty.
1
Effective Area
7.39 in²
Extended Height (B)
9.53"
Harmonized Tariff Code
8412.21.00.90
HTS (Harmonized Tariff Schedule) Code
7326.90.90.90
Inner Pack Qty.
0
Item Height (inches)
6.00
Item Length (inches)
10.20
Item Quantity
1
Item Weight (lbs)
24.4150
Item Width (inches)
8.10
Master Pack Code
10059629998295
Model Number
SACH302
Oil Capacity
18.62 in³
Ordering Quantity
1
Outside Diameter (D)
4.53"
Package Quantity
1
Package UPC
10059629869366
Piston Rod Diameter (F)
2.56"
Quantity
1
Rated Capacity
30 T
Spring Return
Yes
Stroke Length
2.52"
UPC
059629869369
UPC Code
059629998298
UPC Number
059629998298
Manufactured By
Strongarm
Other Details:
- Collar and plunger threads for fixture attachment
- Complies with ASME B-30.1
- High strength alloy steel for durability and added safety
- Hollow plunger design allows for both push and pull forces
- Single acting spring return
