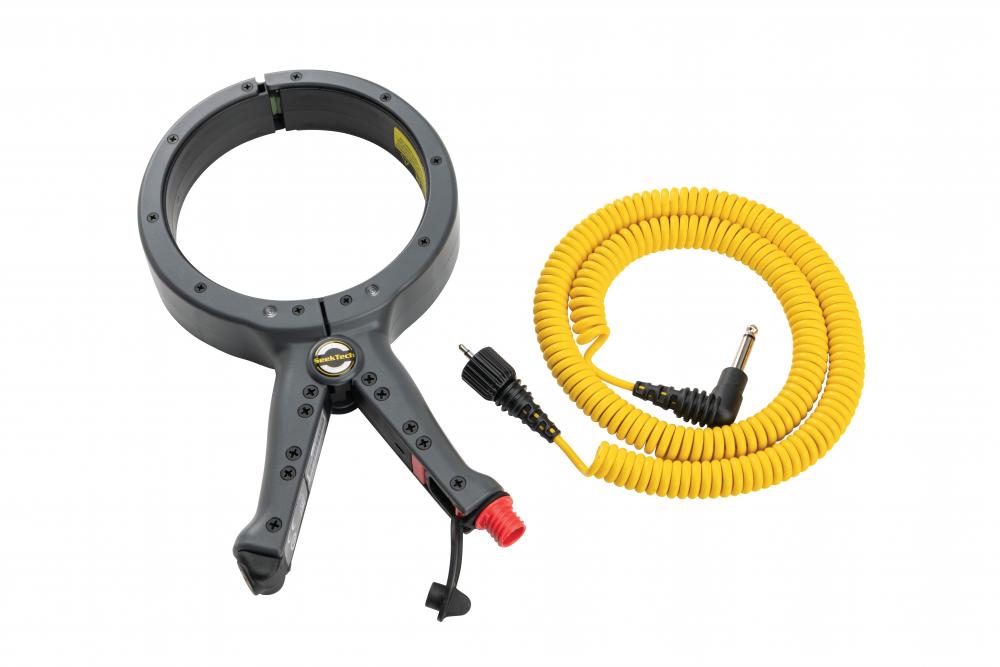

SeekTech® Inductive Signal Clamp (72963)
by RIDGID Tool Company
The RIDGID SeekTech Inductive Clamp allows users to apply a signal to a cable or pipe when direct connection is not possible. Compatible with all RIDGID® transmitters.
Product Specification
Item #
72963
Dimensions
Additional product details
Vendor Item #
72963
Industrial Category
Test Instruments
Industrial Subcategory
Electrical Power Testing
Industrial Subtype
Underground Utility Locator Accessories
Allow Standard Pack to be Broken
False
Application
Utilities, underground locating
Battery Composition
n/a
Battery Included
No
Battery Life
n/a
Battery Packaging
n/a
Battery Required
No
BlueTooth
n/a
Brand
RIDGID
CA Prop 65 Chemcial Names
n/a
Capacity Max
4.7 IN / 119.38 MM
Capacity Min
1 IN / 25.4 MM
Color
Gray
Compatible Devices List
ST-305, ST-305R, ST-33Q+, ST-510
Cord Length
0.75 m (2.5 ft)
, 2.5 FT / 0.762 MT
Country of Origin
US
Depth
36.8 mm (1.5 in)
Frequencies
8 kHz to 262 kHz
Handle Type
Lever
Hazardous Material
False
Height
10.4 IN / 264.16 MM
HTS Code
8529903800
Inside Diameter
119 mm (4.7 in)
Length
1.5 IN / 38.1 MM
Light
n/a
Material
Plastic
Max Operating Temperature
131 F / 55 C
Min Operating Temperature
-40 F / -40 C
Motor Horsepower
10
Motor RPM
n/a
Motor Type
None
Number of Handles
2
Packaging Type
Box
Power
None
Power Source
Line transmitter with 10 watt or less max output power with frequency < 45 kHz, or 1 watt max if > 45 kHz
Product Line
SeekTech
Product Warranty
Full Lifetime Warranty
Shape
Round
Similar SKUs
20973
UNSPSC Code
41113644
UPC Code
095691729637
Weight
1.1 LB / 0.49887 KG
Width
5.8 IN / 147.32 MM
WiFi
n/a
Manufactured By
RIDGID Tool Company
Other Details:
- Additionally compatible with any comparable line transmitter which has a 10 watt or less maximum output power if frequency is under 45 kHz, and a 1 watt maximum if above 45 kHz
- Can be used with frequencies from 8 kHz to 262 kHz
- Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510
- Convenient pull tab for opening and closing in tight spaces
- Ergonomic handle for easy opening and closing
- Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter
- Removable and easy to store coiled cord
