Self-Retracting Lifelines (SRL) - Leading Edge
Image may not reflect selected features

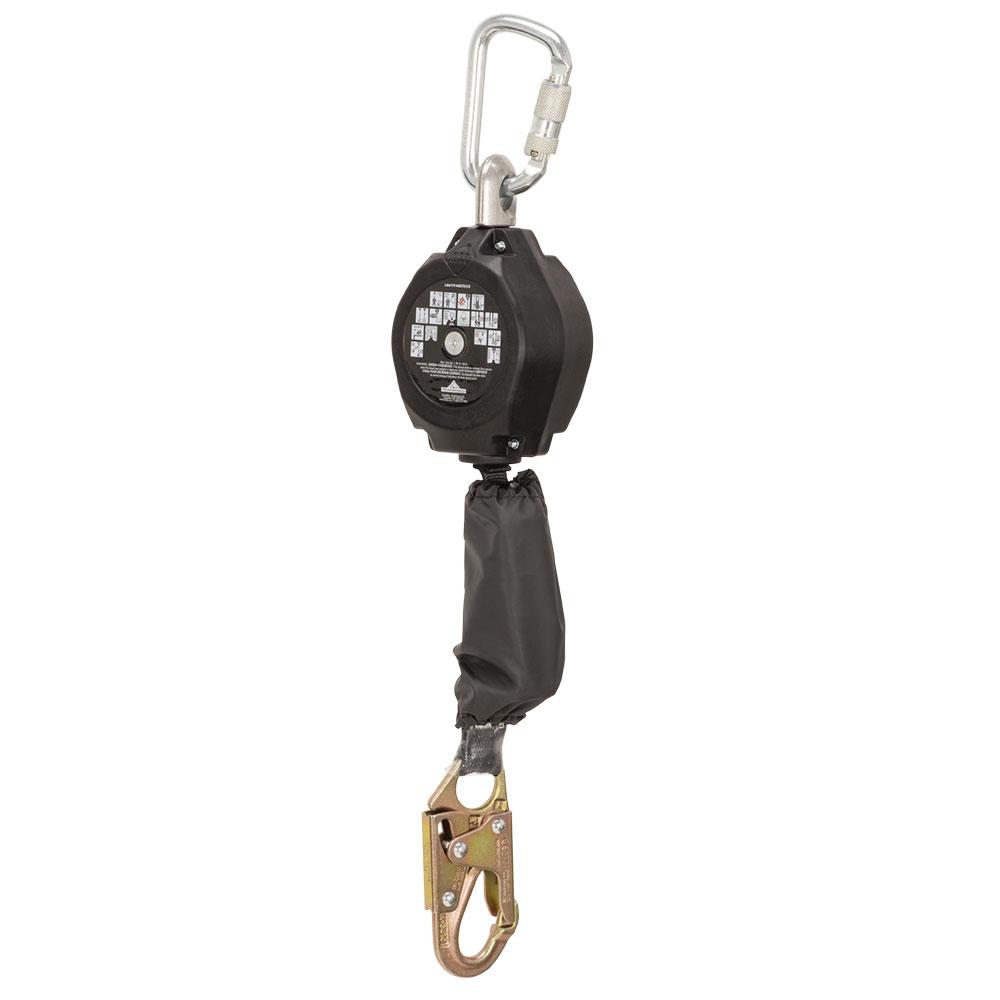

Self-Retracting Lifelines (SRL) - Leading Edge (V845722012LE) by Peakworks
PeakWorks offers a new series of self-retracting lifelines that are third-party certified to the newest CSA Z259.2.2 standard for leading-edge applications (LE) and for overhead use. Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists. They provide additional protection against sharp or abrasive surfaces found on many construction sites. The lightweight, durable, aluminum housing unit is approved for use in vertical and horizontal applications. The attachment points include a swivel eye on housing and double-action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring.
Product Specification
Item #
V845722012LE
Dimensions
Height: 4.70"
Width: 7.25"
Additional product details
Vendor Item #
V845722012LE
Industrial Subtype
Self-Retracting Lifelines
Anchor Hook Material
Steel
Anchor Hook Type
Carabiner
Average Arrest Force
4.12kN (926 lbf)
Body Hook Type
Snap Hook
Capacity (kg.)
141
Capacity (lb.)
310
Certification
CSA Z259.2.2-2017|ANSI Z359.14-2014, Class B
Class Type
B
Color
Black
Country of Origin
DE
Gate Opening (in.)
3/4
Gate Opening (mm.)
19
Harmonized Tariff Code
8479.89.90.90
Housing Material
Composite Plastic
HTS (Harmonized Tariff Schedule) Code
8479.89.90.90
Item Length (inches)
13.40
Item Weight (lbs)
5.6500
Leading Edge
Yes
Leg Type
Single
Length (ft.)
12
Length (m.)
3.658
Lifeline Material
Dyneema®
Max. Total Arrest Distance - Non-Leading Edge
15
Maximum Total Arrest Distance (m.)
0.37
Maximum Total Arrest Distance - Non-Leading Edge a
15
Min. distance from edge - Leading Edge (cm.)
40
Min. distance from edge - Leading Edge (in.)
16
Min. Fall Clearance - Leading Edge (ft.)
20.75
Min. Fall Clearance - Leading Edge (mm)
6.32
Min. Fall Clearance - Non-Leading Edge (ft.)
10.25
Min. Fall Clearance - Non-Leading Edge (m)
3.12
Minimum Fall Clearance - Leading Edge application
20.75
Minimum Fall Clearance - Leading Edge applications
6.32
Minimum Fall Clearance - Non-Leading Edge applicat
10.25 , 3.12
Minimum set back distance from edge - Leading Edge
16 , 40
Model Number
SRL-80302-12LE
Order Unit Of Measure
EA
Package Quantity
1
Rescue and Recover - SRL-R
No
UOM
EA
UPC
626053638283
UPC Code
626053638283
Webbing/Cable Thickness (in.)
0.07
Webbing/Cable Thickness (mm.)
1.75
Webbing/Cable Width (in.)
0.8
Webbing/Cable Width (mm.)
20
Manufactured By
Peakworks


Other Details:
  • A Leading Edge SRL can be mounted below a worker's fall arrest D-Ring (please refer to instruction manual for details)
  • All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications
  • Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge
  • Leading Edge SRLs provide additional protection against sharp or abrasive surfaces found on many construction sites
  • The anchor point incorporates a heavy-duty, durable, and convenient swivel eye
Minimum Fall Clearance - Non-Leading Edge applicat
