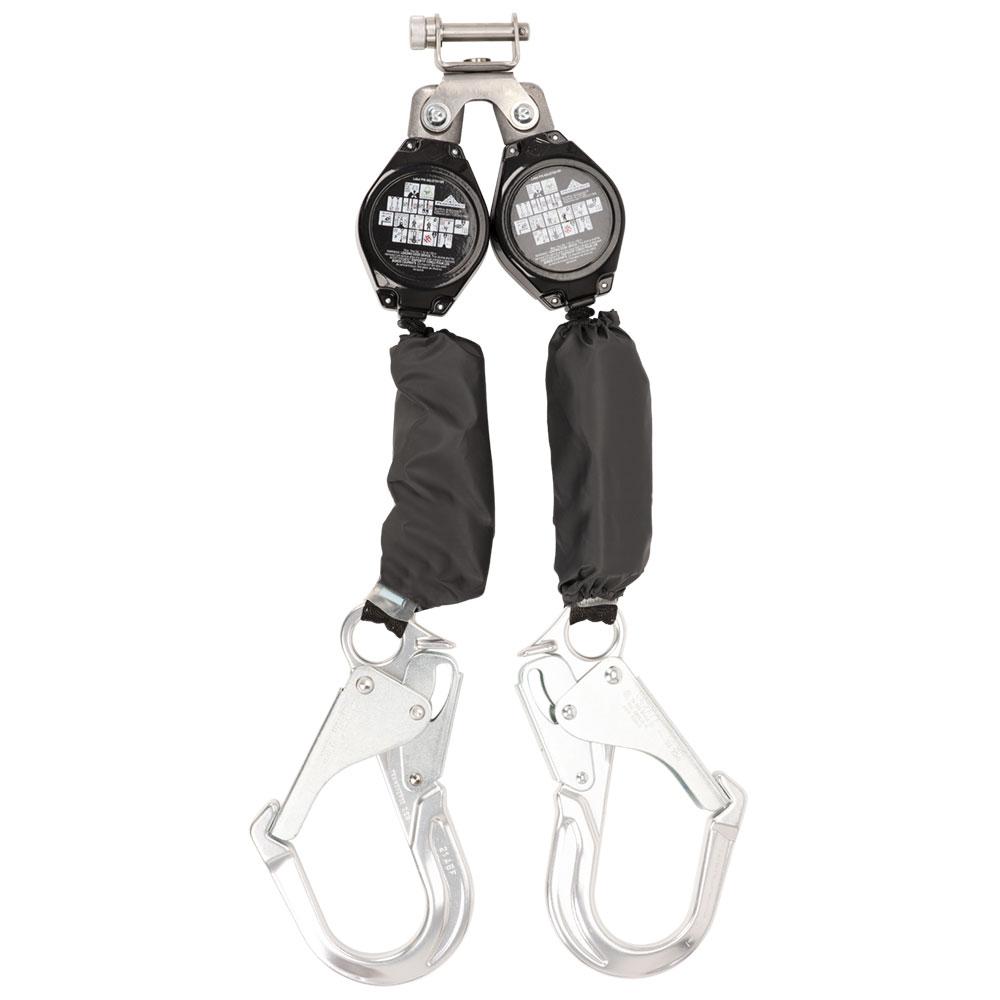

Self-Retracting Lifelines (SRL) - Leading Edge Tie Back
Call For Price
- Part Number: V845626006LE
- UPC:
- Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
PeakWorks offers a new series of self-retracting lifelines that are third-party certified to the newest CSA Z259.2.2 standard for leading-edge applications (LE) and for overhead use. Leading-edge SRLs are designed to protect a worker when working near an edge and a fall hazard exists. They provide additional protection against sharp or abrasive surfaces found on many construction sites. The lightweight, durable, aluminum housing unit is approved for use in vertical and horizontal applications. The attachment points include a swivel eye on housing and double action locking snap hooks with fall indicator to connect to the worker’s fall arrest D-ring.
Specifications
Details
Industrial Subtype:
Self-Retracting Lifelines
Anchor Hook Material:
Steel
Average Arrest Force:
4.12kN (926 lbf)
Body Hook Type:
Form Hook
Capacity (kg.):
141
Capacity (lb.):
310
Certification:
CSA Z259.2.2-2017|ANSI Z359.14-2014, Class B
Class Type:
B
Color:
Black
Country of Origin:
DE
Gate Opening (in.):
2.5
Gate Opening (mm.):
64
Harmonized Tariff Code:
8479.89.90.90
Housing Material:
Aluminum
HTS (Harmonized Tariff Schedule) Code:
8479.89.90.90
Item Length (inches):
14.25
Item Weight (lbs):
8.5150
Leading Edge:
Yes
Leg Type:
Twin
Length (ft.):
6
Length (m.):
1.828
Lifeline Material:
Dyneema®
Max. Total Arrest Distance - Non-Leading Edge:
12
Maximum Total Arrest Distance (m.):
0.31
Maximum Total Arrest Distance - Non-Leading Edge a:
12
Min. distance from edge - Leading Edge (cm.):
30
Min. distance from edge - Leading Edge (in.):
12
Min. Fall Clearance - Leading Edge (ft.):
20
Min. Fall Clearance - Leading Edge (mm):
6.096
Min. Fall Clearance - Non-Leading Edge (ft.):
10
Min. Fall Clearance - Non-Leading Edge (m):
3.048
Minimum Fall Clearance - Leading Edge application:
20
Minimum Fall Clearance - Leading Edge applications:
6.096
Minimum Fall Clearance - Non-Leading Edge applicat:
10
3.048
Minimum set back distance from edge - Leading Edge:
12
30
Model Number:
SRL-70602-6LE
Order Unit Of Measure:
EA
Package Quantity:
1
Rescue and Recover - SRL-R:
No
UOM:
EA
UPC:
626053638269
UPC Code:
626053638269
Webbing/Cable Thickness (in.):
0.07
Webbing/Cable Thickness (mm.):
1.75
Webbing/Cable Width (in.):
0.8
Webbing/Cable Width (mm.):
20
Other Details
Double-locking 5,000 lb carabiner with 3,600 lb
gate strength
Lightweight aluminum housing, more durable than competitor SRLs with plastic housings
Smaller, more compact housing, 3” diameter
Swivel top eliminates lifeline twisting and entanglement
The anchor point incorporates a heavy-duty, durable, and convenient swivel eye
