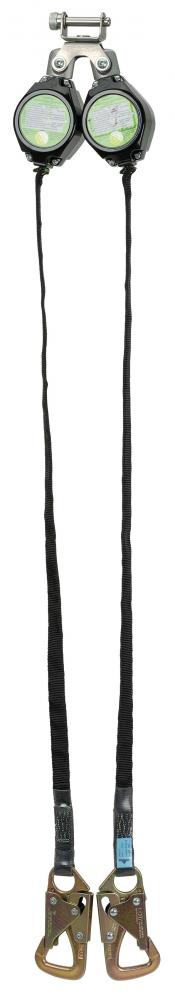

Leading Edge Tie Back Self-Retracting Devices (V845528109TBLE)
by Peakworks
Tie-back SRD class 2 leading edge device that serves as an all-in-one self-retracting lifeline and anchorage connector thus reducing the amount of equipment required on the job site. The device is approved for both vertical and horizontal applications with a setback distance of 12 inches.
Product Specification
Item #
V845528109TBLE
Dimensions
Additional product details
Vendor Item #
V845528109TBLE
Industrial Category
Safety
Industrial Subcategory
Fall Protection
Industrial Subtype
Self-Retracting Lifelines
Anchor Hook Material
Steel
Anchor Hook Type
Tie-Back Snap Hook
Average Arrest Force
678 lbf
Body Hook Type
Connection Pin
Capacity
310 lb
Class Type
Class 2
Color
Black/Green
COO (2 digit code)
DE
Each Depth (in)
5.45
Each Length (in)
14.15
Each Qty.
1
Each Weight (lb)
8.47
Each Width (in)
10.35
Gate Opening (in.)
0.83"
Housing Material
Aluminum
HTS (Harmonized Tariff Schedule) Code
8479.89.9599
Leading Edge
Yes
Leg Type
Twin
Length
9 ft
Lifeline Material
Dyneema®
Master Pack Code
10032738046170
Master Pack Qty.
1
Maximum Total Arrest Distance
1.07 m
Maximum Total Arrest Distance - Non-Leading Edge a
42 in
Minimum Fall Clearance - Leading Edge application
13 ft
Minimum Fall Clearance - Leading Edge applications
4 m
Minimum Fall Clearance - Non-Leading Edge applicat
1.83 m
Minimum set back distance from edge - Leading Edge
12 in
Pallet Qty
1
Rescue and Recover - SRL-R
No
Special Features
Sewn-in Indicator
Standards
ANSI Z359.14-2021 Class 2|OSHA
UOM
EA
Webbing/Cable Thickness
0.07 in
Webbing/Cable Width
1 in
Manufactured By
Peakworks
Other Details:
- 310 lbs capacity for 1 worker (combined weight of person, tools, clothing, etc.)
- Anchor point incorporates a heavy duty, durable, and convenient swivel eye
- Double-locking 5,000 snap hook with 5,000 lbs gate (for tie back applications)
- Features a sewn-in indicator on the lifeline for maximum safety
- Manufactured to exacting specifications using lightweight aluminum housings for maximum comfort and durability
