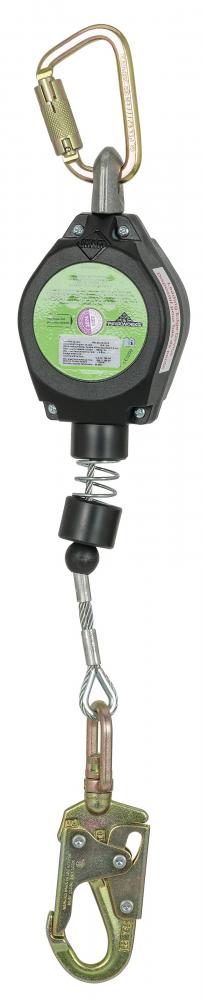

Leading-Edge Self Retracting Devices (V845533110LE)
by Peakworks
Self-retracting devices that are third-party certified to the ANSI Z359.14-2021 standard for leading-edge applications (LE) as well as overhead use. Aluminum housing construction is lightweight yet durable and can be used in both horizontal and vertical applications. The attachment point includes a swivel harness attachment connector that conveniently connects to the user’s harness or swivel with carabiner to connect to the anchor point.
Product Specification
Item #
V845533110LE
Dimensions
Additional product details
Vendor Item #
V845533110LE
Industrial Category
Safety
Industrial Subcategory
Fall Protection
Industrial Subtype
Self-Retracting Lifelines
Anchor Hook Material
Steel
Anchor Hook Type
Snap Hook
Average Arrest Force
584 lbf
Body Hook Type
Carabiner
Capacity
310 lb
Class Type
Class 2
Color
Black/Green
COO (2 digit code)
DE
Each Depth (in)
4.75
Each Length (in)
13.45
Each Weight (lb)
6.55
Each Width (in)
7
Gate Opening (in.)
0.75
Housing Material
Composite Plastic
HTS (Harmonized Tariff Schedule) Code
7616.99.5090
Leading Edge
Yes
Leg Type
Single
Length
10 ft
Lifeline Material
Galvanized Steel
Master Pack Code
10032738046187
Master Pack Qty.
1
Maximum Total Arrest Distance
1.07 m
Maximum Total Arrest Distance - Non-Leading Edge a
42 in
Minimum Fall Clearance - Leading Edge application
13 ft
Minimum Fall Clearance - Leading Edge applications
4 m
Minimum Fall Clearance - Non-Leading Edge applicat
1.83 m
Minimum set back distance from edge - Leading Edge
16 in
Pallet Qty
1
Rescue and Recover - SRL-R
No
Standards
ANSI Z359.14-2021 Class 2|OSHA
UOM
EA
Webbing/Cable Width
7/32 in
Manufactured By
Peakworks
Other Details:
- Anchor point incorporates a heavy duty and durable swivel eye
- Approved for both vertical and horizontal applications
- Features a sewn-in indicator on the lifeline for maximum safety
- Lightweight aluminum housing is durable and built to last
- Provides additional protection when working near a leading edge where sharp or abrasive surfaces may be prevalent
