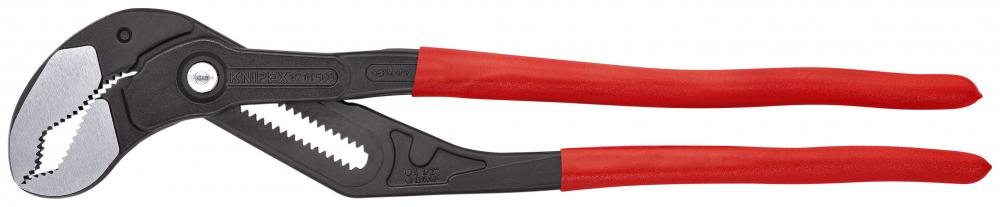

22" Cobra® XXL Water Pump Pliers (87 01 560 US)
by Knipex Tools
Product Specification
Item #
87 01 560 US
Dimensions
Height: 1.25"
Width: 4.25"
Additional product details
Vendor Item #
87 01 560 US
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Tongue and Groove Pliers
1000 Volt Insulated
No
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
DIN
DIN ISO 8976
ECCN
EAR99
Gripping Surface
Serrated
Handle Type
Plastic coating
Harmonized Tariff Code
8204.12.0000
Included Products/Items
Gripping Surface: Serrated
Item Height (inches)
1 1/4"
Item Height inches
1 1/4"
Item Length (inches)
22
Item Length inches
22"
Item Quantity
1
Item Weight (lbs)
6.04
Item Weight lbs
6.04
Item Width (inches)
4 1/4"
Item Width inches
4 1/4"
Jaw Length
3 3/4"
Joint Type
Box-joint
Joint Type 2
Adjustable
Material Type
Chrome vanadium electric steel, forged, oil-hardened
Max Jaw Opening - Hex
4 3/4"
Max Jaw Opening - Round pipe
4 1/2"
Max Jaw Opening - Working Capacity
4 3/4"
Max Jaw Opening Hex
4 3/4"
Max Jaw Opening Round Pipe
4 1/2"
Nomintal Length mm
560
Number of Adjustment Positions
20
Other Surface Finish
Grey atramentized
Package Height (inches)
1.25"
Package Height inches
1.25"
Package Length (inches)
23"
Package Length inches
23"
Package Weight (lbs)
6.11
Package Weight lbs
6.11
Package Width (inches)
5.75"
Package Width inches
5.75"
Packaging Height mm
25 mm
Packaging Length mm
560 mm
Packaging Width mm
113 mm
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Spare Part
87 09 560
Sub Brand Name
Cobra®
Surface Finish
Polished jaws
Teeth Hardness HRC
Approx. 61 HRC
Tool Attributes
20 Adjustment positions.
, Box-joint design: high stability because of double guide.
, Chrome vanadium electric steel; forged, multi stage oil-hardened.
, Fast push-button adjustment directly on the workpiece, no unintentional slipping of the joint.
, Fine adjustment for optimum adaptation to different size workpieces and a comfortable gripping position.
, Greater gripping capacity and lighter weight than comparable pipe wrenches.
, Gripping surfaces with special hardened teeth, teeth hardness (approx. 61 HRC): low wear and reliable gripping.
, Pinch guard prevents operators' fingers being pinched.
, Self-locking on pipes and nuts: no slipping off the workpiece and low hand force required.
Tool Height mm
25 mm
Tool Length mm
560 mm
Tool Weight grams
2750 g
Tool Width mm
111 mm
Unit Of Measure
Each
UNSPSC
27112112
UNSPSC Number
27112112
UOM Qty
1
UPC Code
843221000240
Manufactured By
Knipex Tools
Other Details:
- 20 adjustment positions
- Box-joint design: high stability because of double guide
- Chrome vanadium electric steel; forged, multi-stage oil-hardened
- Fast push-button adjustment directly on the workpiece, no unintentional slipping of the joint
- Fine adjustment for optimum adaptation to different size workpieces and a comfortable gripping position
- Greater gripping capacity and lighter weight than comparable pipe wrenches
- Gripping surfaces with special hardened teeth, teeth hardness (approx. 61 HRC): low wear and reliable gripping
- Pinch guard prevents operators' fingers being pinched
- Self-locking on pipes and nuts: no slipping off the workpiece and low hand force required
