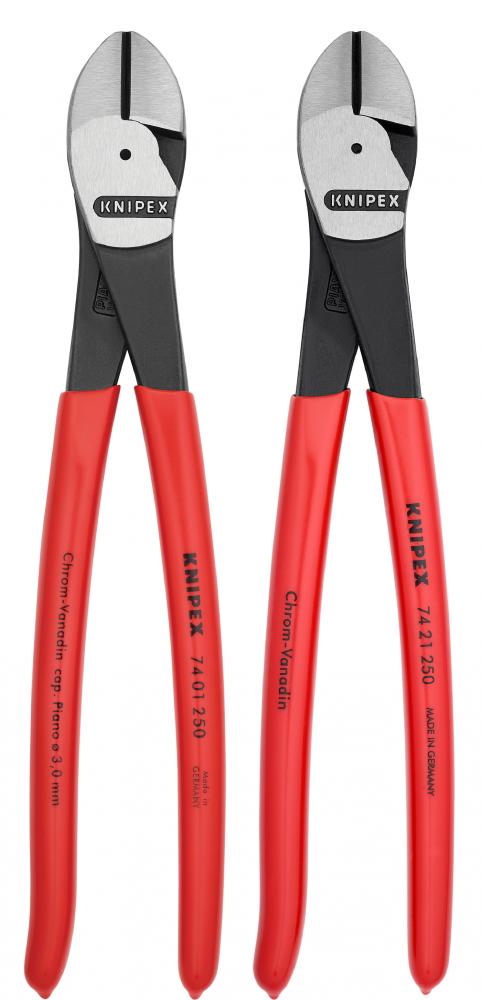

2 Pc Diagonal Pliers Set (9K 00 80 129 US)
by Knipex Tools
Set Includes Part Numbers: 74 01 250 and 74 21 250
Downloads
Product Specification
Item #
9K 00 80 129 US
Dimensions
Height: 1.00"
Width: 6.75"
Additional product details
Vendor Item #
9K 00 80 129 US
Industrial Category
Hand Tools
Industrial Subcategory
Pliers
Industrial Subtype
Diagonal Cutting Pliers
, Plier Sets
1000 Volt Insulated
No
Angled Head
12 degree (74 21 250)
Brand Name
KNIPEX
Color
Red
Country of Origin
Germany
Country of Origin 2
DE
Country of Origin 3
DEU
Cutting Capacity - Hard Wire (Steel Wire)
9/64"
Cutting Capacity - Medium Hard Wire (Nail)
3/16"
Cutting Capacity - Piano Wire
1/8"
Cutting Edge HRC
Approx. 64 HRC
Cutting Edge Shape
Bevel
DIN
DIN ISO 5749
ECCN
EAR99
ESD Indicator
No
Handle Length
7 3/4" (74 21 250); 9 3/4" (74 01 250)
Handle Type
Plastic coating
Harmonized Tariff Code
8206.00.0000
Included Products/Items
Color: Red
Item Quantity
2
Item Weight (lbs)
1.98
Joint Type
Forged-in axle
Material Type
Chrome vanadium heavy-duty steel, forged, oil-hardened
Other Surface Finish
Black atramentized
Package Height (inches)
2.88"
Package Height inches
2.88"
Package Length (inches)
14.44"
Package Length inches
14.44"
Package Weight (lbs)
1.958
Package Weight lbs
1.958
Package Width (inches)
6.74"
Package Width inches
6.74"
Prop 65 Conflict
No
Reach
does not contain SVHC
RoHS
not applicable
Spring Loaded
No
Surface Finish
Polished
Tool Attributes
(1) 74 01 250 10" High Leverage Diagonal Cutters, (1) 74 21 250 10" High Leverage Angled Diagonal Cutters
, 20% reduction in required force compared to conventional diagonal cutters of the same length
, Black atramentized pliers
, Chrome vanadium heavy-duty steel, forged, manifold oil-hardened
, Cutting Capacity - up to 3/16" for medium wire, up to 9/64" for hard and up to 1/8" for piano wire
, For very tough, continuous use
, High cutting performance with minimum effort due to optimum co-ordination of the cutting edge angle and transmission ratio
, High leverage means less force required because the rivet is closer to the cutting edge
, Plastic-coated handles
, Polished head
, Precision cutting edges (cutting edge hardness approx. 64 HRC) cuts several types of wire including piano wire
, Suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm²
Unit Of Measure
Set
UNSPSC
27112114
UNSPSC Number
27112114
UOM Qty
2
UPC Code
843221021948
Manufactured By
Knipex Tools
Other Details:
- 10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
- 20% reduction in required force compared to conventional diagonal cutters of the same length
- 74 21 250 offers an angled head for additional hand clearance when cutting
- Cutting Capacity - up to 3/16" for medium wire, up to 9/64" for hard and up to 1/8" for piano wire
- For very tough, continuous use
- High leverage means less force required because the rivet is closer to the cutting edge
- Precision cutting edges (cutting edge hardness approx. 64 HRC) cuts several types of wire including piano wire
- Set includes two (2) High Leverage Diagonal Cutters: 74 01 250 (10") and 74 21 250 (10" Angled)
- This KNIPEX diagonal cutters set offers two of the most popular 10" diagonal pliers, one straight and one with a 12° angled head. The combination of the cutting edges, high leverage joints and the long handles have been designed for maximum cutting p
