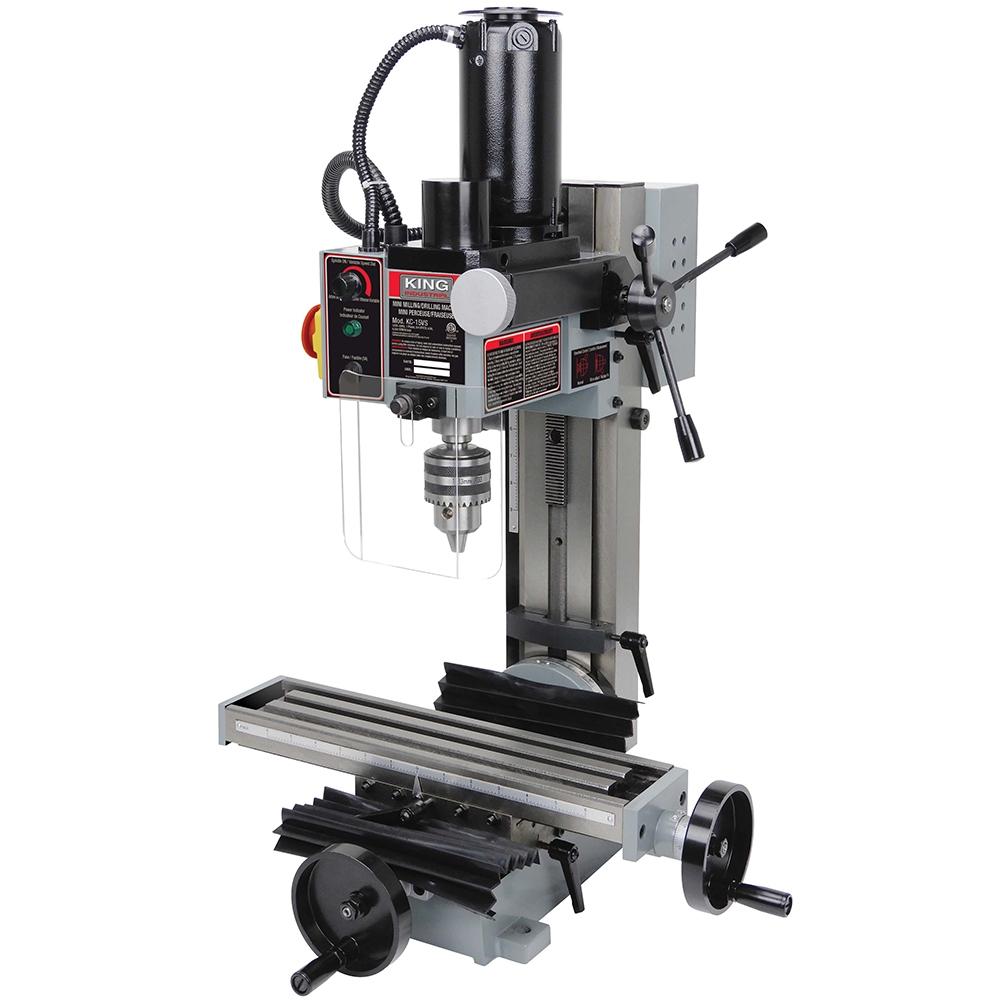

Mini milling drilling machine

Mini milling drilling machine

Call For Price
  • Part Number: KC-15VS
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Mini milling drilling machine
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machinery
Industrial Subtype:
Drilling Machines
Cross travel:
4''
Diameter of the cutterhead:
11-1/4''
Drilling capacity in cast-iron:
1/2''
Drilling capacity in steel:
1/2''
End mill capacity:
5/8''
Face mill capacity:
1-1/8''
Item Length (inches):
19.5
Item Quantity:
1
Item Weight (lbs):
110 lbs
Max. Flywheel:
8-1/2''
Moteur:
4.5 Amp., 6,000 RPM
Overall width across forks:
19-1/2'' x 18-3/4'' x 30'' / 110 lbs
Product Series:
KING INDUSTRIAL
Shipping weight:
7/16''
Spec 01:
Drilling capacity in cast-iron: 1/2"
Spec 02:
Drilling capacity in steel: 1/2"
Spec 03:
Diameter of the cutterhead: 11-1/4"
Spec 04:
Swing: 12-3/4"
Spec 05:
Spindle taper: R8
Spec 06:
Spindle stroke: 7"
Spec 07:
Variable speeds (RPM): 2 (0-1,100 / 0-2,500)
Spec 08:
Face mill capacity: 1-1/8"
Spec 09:
End mill capacity: 5/8"
Spec 10:
Max. Longitudinal travel: 8-1/2"
Spec 11:
Cross travel: 4"
Spec 12:
Working area of the table: 3-5/8" x 15-3/4"
Spec 13:
Size of t-slot on table: 7/16"
Spec 14:
Motor: 4.5 Amp., 6,000 RPM
Spec 15:
Voltage: 120V, 1 phase, 60 Hz
Spec 16:
Package dimensions (LxWxH) / Weight: 19-1/2" x 18-3/4" x 30" / 110 lbs
Spindle speeds:
7''
Spindle stroke:
R8
Suction head lift:
12-3/4''
UNSPSC Number:
23101513
UPC Number:
7 72995 01585 6
Variable speeds (metal):
2 (0-1,100 / 0-2,500)
Variable speeds (wood):
120V, 1 phase, 60 Hz
Working area of table:
3-5/8'' x 15-3/4''
Other Details
Adjustable depth stop
Chuck guard
Comes with 1/2" chuck, chuck key, R8-JT#33 chuck arbor, chuck guard, 2 T-slot nuts, oil bottle, adjustment wrenches and hex. keys
Emergency stop butTon
Powerful 3/4 HP single phase DC Motor
Rubber chip guards on ways
Spindle depth fine feed control with micro downfeed dial
Variable speed gear drive
