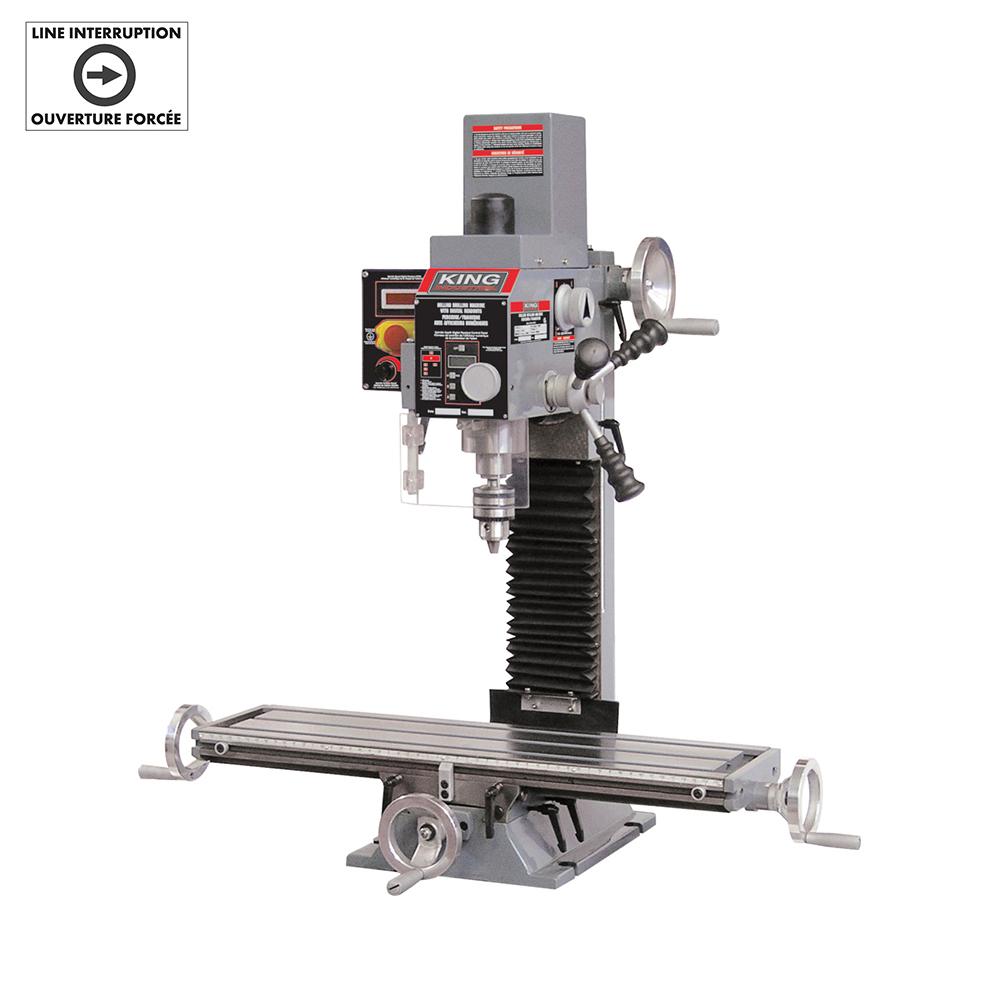

Milling drilling machine with digital readouts (KC-20VS-2)
by King Canada
Milling drilling machine with digital readouts
Product Specification
Item #
KC-20VS-2
Dimensions
Height: 35.38"
Width: 29.63"
Additional product details
Vendor Item #
KC-20VS-2
Industrial Category
Machining
Industrial Subcategory
Machinery
Industrial Subtype
Drilling Machines
Assembled dimensions (LxWxH) / Weight
27-1/2'' x 29-5/8'' x 35-3/8'' / 264 lbs
Cross travel
6-7/8''
Drilling capacity in cast-iron
3/4''
Drilling capacity in steel
5/8''
End mill capacity
3/4''
Face mill capacity
2-1/2''
Item Length (inches)
27.5
Item Quantity
1
Item Weight (lbs)
264 lbs
Max. Flywheel
18-7/8''
Moteur
4.8 Amp., 2,250 RPM
Package dimensions (LxWxH) / Weight
17-1/2'' x 16-1/2'' x 32-1/2'' / 308 lbs
Product Series
KING INDUSTRIAL
Shipping weight
1/2''
Spec 01
Drilling capacity in cast-iron: 3/4"
Spec 02
Drilling capacity in steel: 5/8"
Spec 03
Swing: 13"
Spec 04
Spindle taper: R8
Spec 05
Spindle stroke: 2"
Spec 06
Variable speeds: 2 (50-1,125 / 100-2,250) RPM
Spec 07
Face mill capacity: 2-1/2"
Spec 08
End mill capacity: 3/4"
Spec 09
Max. Longitudinal travel: 18-7/8"
Spec 10
Cross travel: 6-7/8"
Spec 11
Working area of the table: 7-1/16" x 27-1/2"
Spec 12
Size of T-slot on table: 1/2"
Spec 13
Motor: 4.8 Amp., 2,250 RPM
Spec 14
Voltage: 120V, 1 phase, 60 Hz
Spec 15
Assembled dimensions (LxWxH) / Weight: 27-1/2" x 29-5/8" x 35-3/8" / 264 lbs
Spec 16
Packaging dimensions (LxWxH) / Weight: 17-1/2" x 16-1/2" x 32-1/2" / 308 lbs
Spindle speeds
2''
Spindle stroke
R8
Suction head lift
13''
UNSPSC Number
23101513
UPC Number
7 72995 01009 7
Variable speed range (optional setting)
2 (50-1,125 / 100-2,250) RPM
Variable speeds (wood)
120V, 1 phase, 60 Hz
Working area of table
7-1/16'' x 27-1/2''
Manufactured By
King Canada
Other Details:
- Comes with 1/2" chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box
- Forward/reverse switch and variable speed selector dials
- Magnetic line interruption switch needs a restart after a power failure
- Powerful 1 HP single phase DC motor
- Safety guard with limit switch protection
- Spindle depth digital readout and control panel with metric and imperial readings
- Spindle depth fine feed knob
- Spindle RPM digital readout
