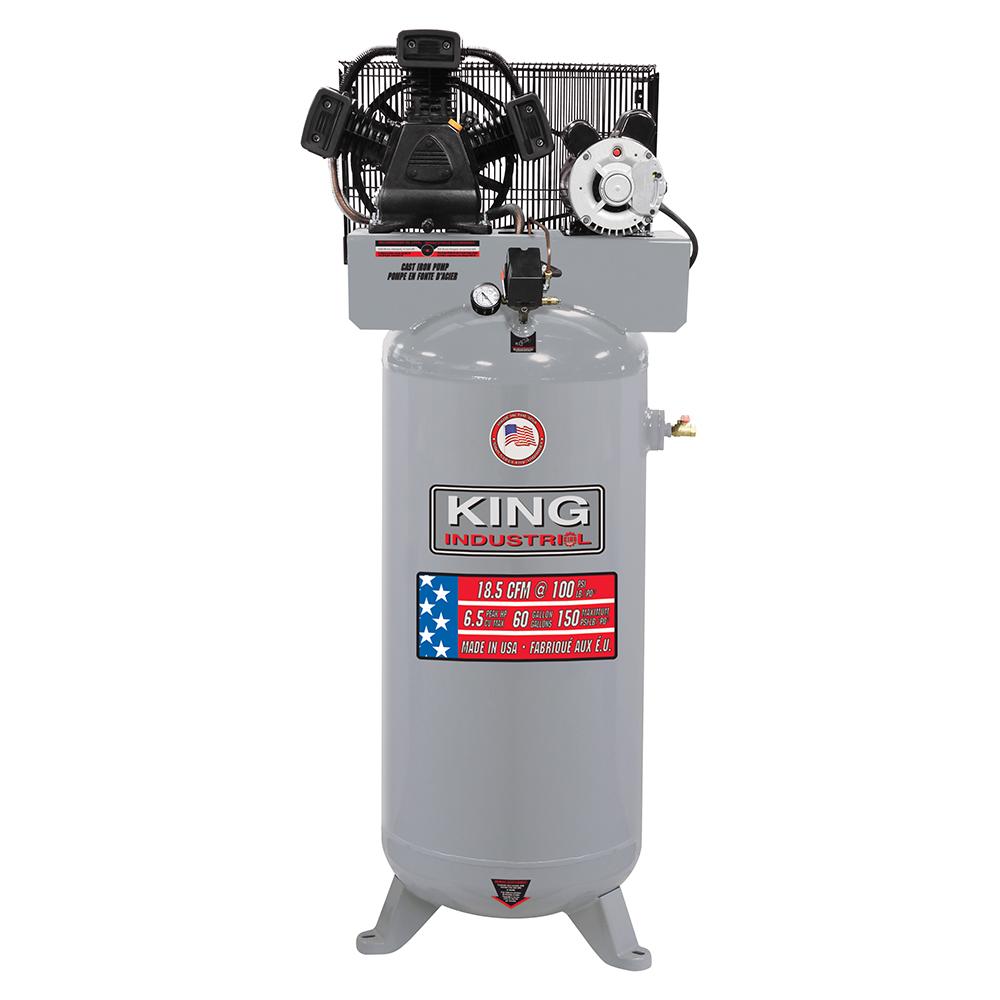

High output 6.5 peak HP 60 Gallon air compressor

High output 6.5 peak HP 60 Gallon air compressor

Call For Price
  • Part Number: KC-5160V3
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
High output 6.5 peak HP 60 Gallon air compressor
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Air Compressors and Vacuum Pumps
Industrial Subtype:
Portable Electric Air Compressors
Air delivery @ 100 psi:
18.5 CFM
Air delivery @ 40 psi:
22.6 CFM
Assembled dimensions (LxWxH) / Weight:
25'' x 22'' x 68'' / 280 lbs
Factory pressure setting (adjustable up to):
95-125 PSI (150 PSI)
Item Length (inches):
25
Item Quantity:
1
Item Weight (lbs):
280 lbs
Maximum planing width:
150 PSI
Motor (2 speed):
6.5 HP
Motor (peak):
23 Amp.
Package dimensions (LxWxH) / Weight:
31'' x 24'' x 73'' / 290 lbs
Product Series:
KING INDUSTRIAL
Router table size:
3450
Spec 01:
Motor (peak): 6.5 HP
Spec 02:
Factory pressure setting (adjustable up to): 95-125 PSI (150 PSI)
Spec 03:
Maximum pressure: 150 PSI
Spec 04:
Air delivery @ 40 PSI: 22.6 CFM
Spec 05:
Air delivery @ 100 PSI: 18.5 CFM
Spec 06:
Tank size: 60 Gallon
Spec 07:
Motor amperage: 23 Amp.
Spec 08:
RPM: 3450
Spec 09:
Voltage: 240V, 1 phase, 60 Hz
Spec 10:
Assembled dimensions (LxWxH) / Weight: 25" x 22" x 68" / 280 lbs
Spec 11:
Packaging dimensions (LxWxH) / Weight: 31" x 24" x 73" / 290 lbs
Tank capacity:
60 Gallon
UNSPSC Number:
40151601
UPC Number:
7 72995 01100 1
Variable speeds (wood):
240V, 1 phase, 60 Hz
Other Details
150 PSI max pressure for optimum tool performance
3 Cylinder cast iron single stage oil lubricated pump
60 Gallon ASME registered tank provides longer run times
ASME Safety Valve
Belt drive with sturdy enclosed metal belt guard
Heavy-duty 1/2” ball valve and easy to read tank pressure gauge
High efficiency reed valves for maximum performance
High output 18.5 CFM @ 100 PSI
Large intake filters
Pump with "V” style design minimises vibrations, improves cooling and extends compressor life
Thermally protected US Motors® 6.5 peak HP motor with reset
