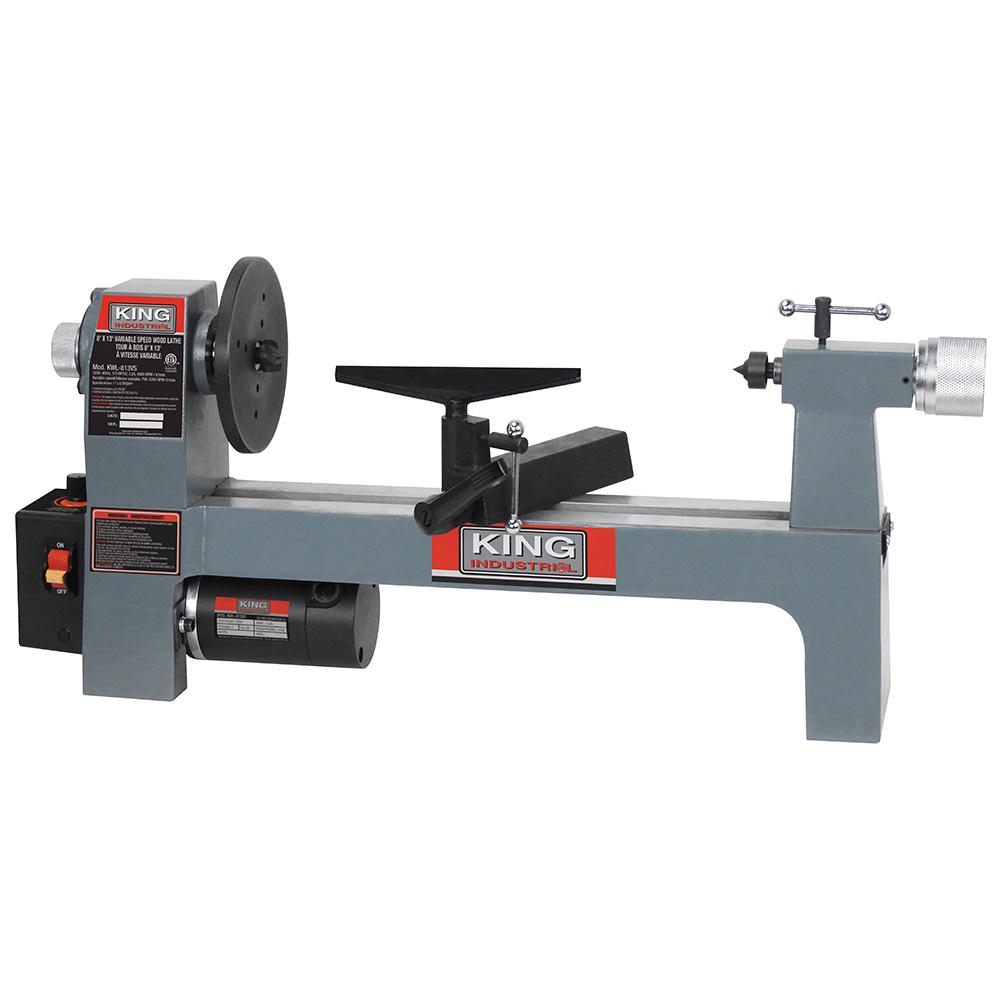

8" x 13" Variable speed wood lathe

8" x 13" Variable speed wood lathe

Call For Price
  • Part Number: KWL-813VS
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
8" x 13" Variable speed wood lathe
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Specialty Finishing Tools
Category Level 4:
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight:
27-3/4'' x 10'' x 12-1/4'' / 42 lbs
Dc motor:
1/3 HP, 3.2 Amp., 4,600 RPM
Distance between centers:
13''
Headstock:
Mt #1
Item Length (inches):
27.75
Item Quantity:
1
Item Weight (lbs):
42 lbs
Package dimensions (LxWxH) / Weight:
28'' x 13-1/4'' x 7-5/8'' / 47 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Swing over bed: 8"
Spec 02:
Swing over tool post base: 5-1/4"
Spec 03:
Distance between centers: 13"
Spec 04:
Spindle size (HR thread): 1" x 8 TPI
Spec 05:
Spindle bore: 3/8"
Spec 06:
Variable speed range: 750 - 3200 RPM
Spec 07:
Headstock, tailstock taper: Mt #1
Spec 08:
Tailstock travel: 1-9/16"
Spec 09:
DC motor: 1/3 HP, 3.2 Amp., 4,600 RPM
Spec 10:
Voltage: 120V, 1 phase, 60 Hz
Spec 11:
Assembled dimensions (LxWxH) / Weight: 27-3/4" x 10" x 12-1/4" / 42 lbs
Spec 12:
Packaging dimensions (LxWxH) / Weight: 28" x 13-1/4" x 7-5/8" / 47 lbs
Spindle:
3/8''
Spindle size:
1'' x 8 TPI
Swing over base:
8''
Swing over gap:
5-1/4''
Tailstock center taper/travel:
1-9/16''
UNSPSC Number:
23242300
UPC Number:
7 72995 01677 8
Variable speed (RPM):
750 - 3200 RPM
Variable speeds (wood):
120V, 1 phase, 60 Hz
Other Details
8" inboard swing for bowl turning
All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
Chrome plated handwheels on both the headstock and tailstock
Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys
High performance 1/3 HP (300 Watt) DC motor
Ideal for pens and other small detailed turnings
Maximum turning capacity of 13" between centers
Variable speed range of 750 to 3200 RPM
