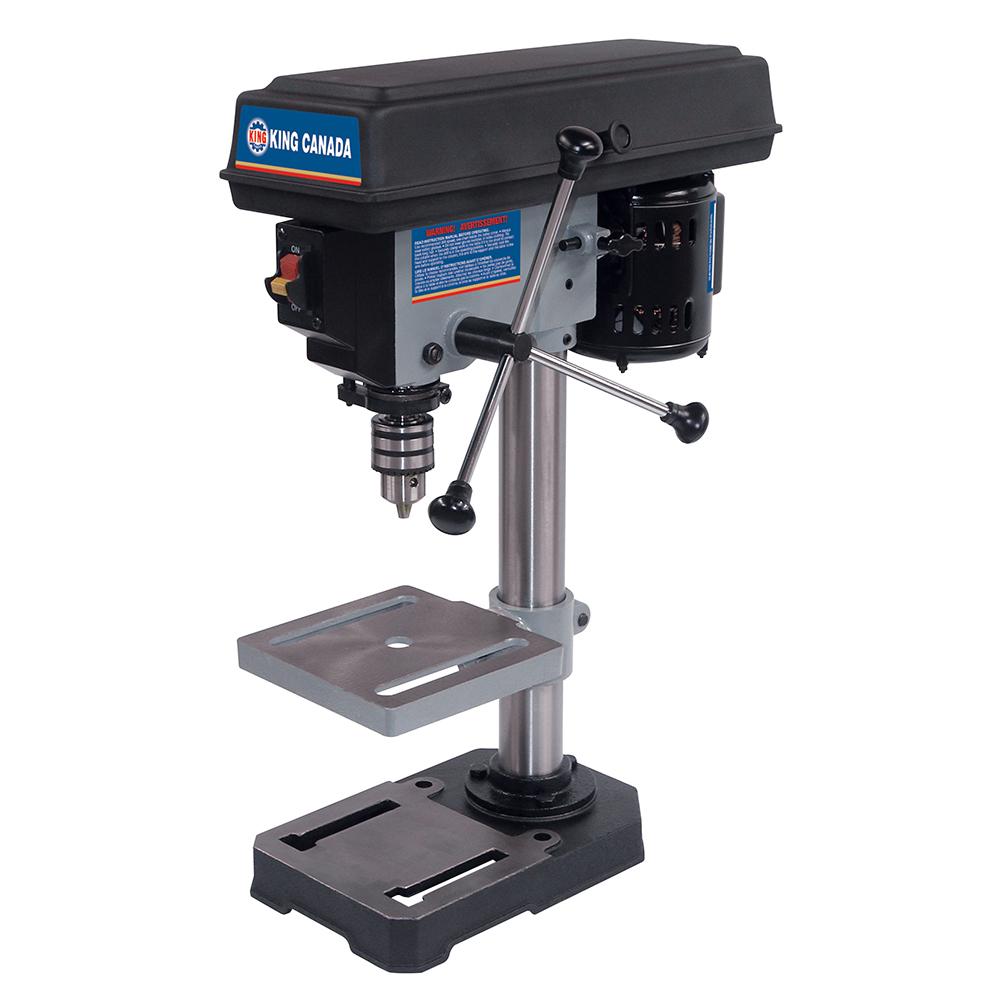

8" Bench drill press

8" Bench drill press

Call For Price
  • Part Number: KC-108N
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
8" Bench drill press
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
8-1/2'' x 16-1/2'' x 23'' / 33 lbs
Chuck capacity:
1/2''
Item Length (inches):
8.5
Item Quantity:
1
Item Weight (lbs):
33 lbs
Max. Distance chuck to table:
10''
Max. Distance from chuck to column:
7''
Moteur:
2.5 Amp.
Package dimensions (LxWxH) / Weight:
17'' x 9'' x 13'' / 37 lbs
Product Series:
KING CANADA
Spec 01:
Chuck capacity: 1/2"
Spec 02:
Swing: 8"
Spec 03:
Stroke: 2"
Spec 04:
Max. Distance from chuck to table: 7"
Spec 05:
Max. Distance from chuck to base: 10"
Spec 06:
Table size: 6-1/2" x 6-1/4"
Spec 07:
Spindle taper: JT #33
Spec 08:
Speeds: 5 (620-3,100) RPM
Spec 09:
Motor: 2.5 Amp.
Spec 10:
Voltage: 120V, 1 phase, 60 Hz
Spec 11:
Assembled dimensions (LxWxH) / Weight: 8-1/2" x 16-1/2" x 23" / 33 lbs
Spec 12:
Packaging dimensions (LxWxH) / Weight: 17" x 9" x 13" / 37 lbs
Speed (wheel / motor):
5 (620-3,100) RPM
Spindle stroke:
JT #33
Steel drum capacity:
2''
Suction head lift:
8''
Table inserts:
6-1/2'' x 6-1/4''
UNSPSC Number:
23241801
UPC Number:
7 72995 00014 2
Variable speeds (wood):
120V, 1 phase, 60 Hz
Other Details
45° tilting table for angular drilling
5 Speed (620-3,100 spindle RPM)
Accepts up to 1/2" shanked drill bits
Comes with 1/2" drill chuck and key
Heavy-duty cast-iron table and base
Positive depth stop for quick and easy adjustment
Powerful 2.5 Amp. Motor
Spindle is supported by high quality ball bearings
