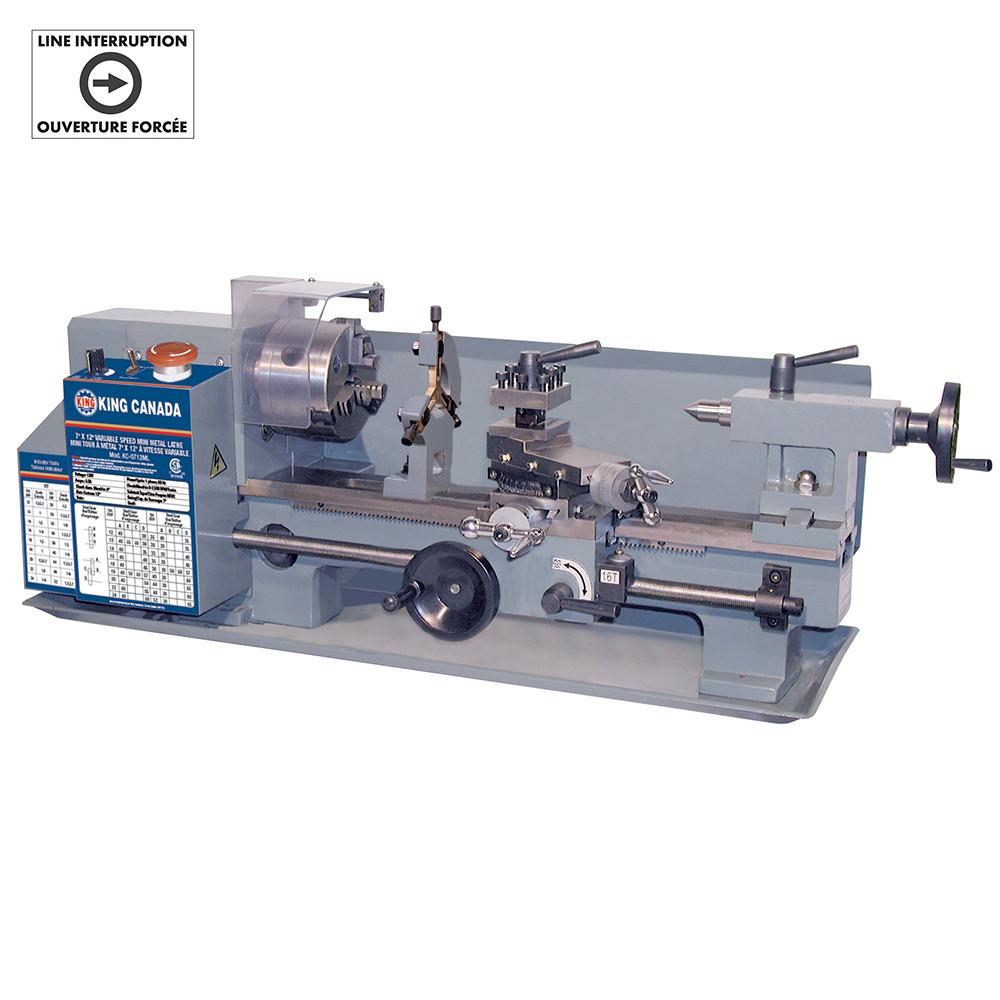

7" x 12" Variable speed mini metal lathe (KC-0712ML)
by King Canada
7" x 12" Variable speed mini metal lathe
Product Specification
Item #
KC-0712ML
Dimensions
Height: 13.00"
Width: 11.50"
Additional product details
Vendor Item #
KC-0712ML
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight
32'' x 11-1/2'' x 13'' / 85 lbs
Distance between centers
12''
Item Length (inches)
32
Item Quantity
1
Item Weight (lbs)
85 lbs
Moteur
5.5 Amp.
Package dimensions (LxWxH) / Weight
29-1/4'' x 12'' x 12-1/2'' / 88 lbs
Product Series
KING CANADA
Spec 01
Distance between centers: 12"
Spec 02
Swing over bed: 7"
Spec 03
Spindle bore: 3/4"
Spec 04
Swing over cross slide: 4-1/2"
Spec 05
Taper in headstock: MT #3
Spec 06
Taper in tailstock: MT #2
Spec 07
Width of bedways: 3-1/4"
Spec 08
Total travel of cross slide: 2-3/4"
Spec 09
Total travel of top slide: 3"
Spec 10
Spindle variable speed: 2 (0-1,100, 0-2,500) RPM
Spec 11
Thread cutting range: 12-52 TPI
Spec 12
Motor: 5.5 Amp.
Spec 13
Voltage: 110V, 1 phase, 60 Hz
Spec 14
Assembled dimensions (LxWxH) / Weight: 32" x 11-1/2" x 13" / 85 lbs
Spec 15
Packaging dimensions (LxWxH) / Weight: 29-1/4" x 12" x 12-1/2" / 88 lbs
Spindle
3/4''
Spindle taper
2 (0-1,100, 0-2,500) RPM
Swing over base
7''
Swing over bed and carriage
4-1/2''
Tank size
MT #3
Taper in spindle bore
MT #2
Thread cutting
12-52 TPI
Total surface of work table
2-3/4''
Total travel of cross slide
3''
UNSPSC Number
23242300
UPC Number
7 72995 00267 2
Variable speeds (wood)
110V, 1 phase, 60 Hz
Width of bed
3-1/4''
Manufactured By
King Canada
Other Details:
- 1" x 8 TPI Spindle Thread
- Bedways are hardened and precision ground
- Comes complete with quick change gear box, face plate, steady rest, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, 4"- 3 jaw chuck, emergency stop button, chuck key and hex. keys
- Cuts imperial threads
- Forward/Reverse control
- Line interruption switch system needs a restart after a power failure
- Safety guard with limit switch protection
- Variable Speed control - 0-2,500 RPM
