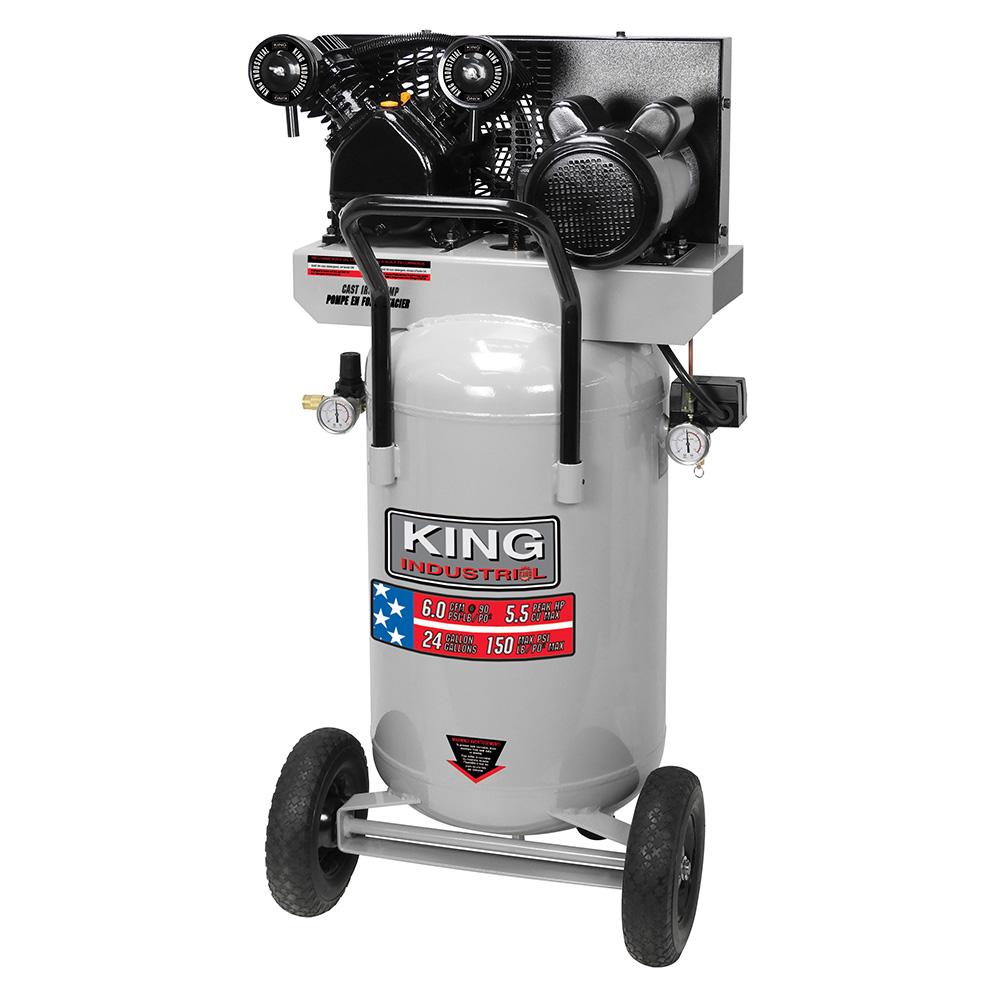

5.5 Peak HP 24 Gallon air compressor

5.5 Peak HP 24 Gallon air compressor

Call For Price
  • Part Number: KC-3124V2
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
5.5 Peak HP 24 Gallon air compressor
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Air Compressors and Vacuum Pumps
Industrial Subtype:
Portable Electric Air Compressors
Air delivery @ 40 PSI:
7.6 CFM
Air delivery @ 90 PSI:
6.0 CFM
Assembled dimensions (LxWxH) / Weight:
24-1/4'' x 21-1/4'' x 47'' / 160 lbs
Factory pressure setting (adjustable up to):
95-125 PSI (150 PSI)
Item Length (inches):
24.25
Item Quantity:
1
Item Weight (lbs):
160 lbs
Motor (2 speed):
5.5 HP
Motor (peak):
15/7.5 Amp.
Overall width across forks:
29'' x 20-1/4'' x 50'' / 170 lbs
Power cord length:
120V
Product Series:
KING INDUSTRIAL
Router table size:
3450
Spec 01:
Motor (peak): 5.5 HP
Spec 02:
Factory pressure setting (adjustable up to): 95-125 PSI (150 PSI)
Spec 03:
Air delivery @ 40 PSI: 7.6 CFM
Spec 04:
Air delivery @ 90 PSI: 6.0 CFM
Spec 05:
Tank size: 24 Gallon
Spec 06:
Motor amperage: 15/7.5 Amp.
Spec 07:
RPM: 3450
Spec 08:
Voltage: 120V/240V, 1 phase, 60 Hz
Spec 09:
Pre-wired: 120V
Spec 10:
Assembled dimensions (LxWxH) / Weight: 24-1/4" x 21-1/4" x 47" / 160 lbs
Spec 11:
Package dimensions (LxWxH) / Weight: 29" x 20-1/4" x 50" / 170 lbs
Tank capacity:
24 Gallon
UNSPSC Number:
40151601
UPC Number:
7 72995 01216 9
Variable speeds (wood):
120V/240V, 1 phase, 60 Hz
Other Details
10" pneumatic wheels and a front handle for portability
150 PSI max pressure for optimum tool performance
2 Cylinder cast iron single stage oil lubricated pump
Air pressure regulator and easy to read pressure gauges
ASME registered tank
ASME Safety Valve
Belt drive with sturdy metal belt guard
Large intake "Auto-drop" aluminum filters
Pump with "V" style design minimizes vibrations, improves cooling and extends compressor life
Wisconsin electric 5.5 peak HP motor with reset
