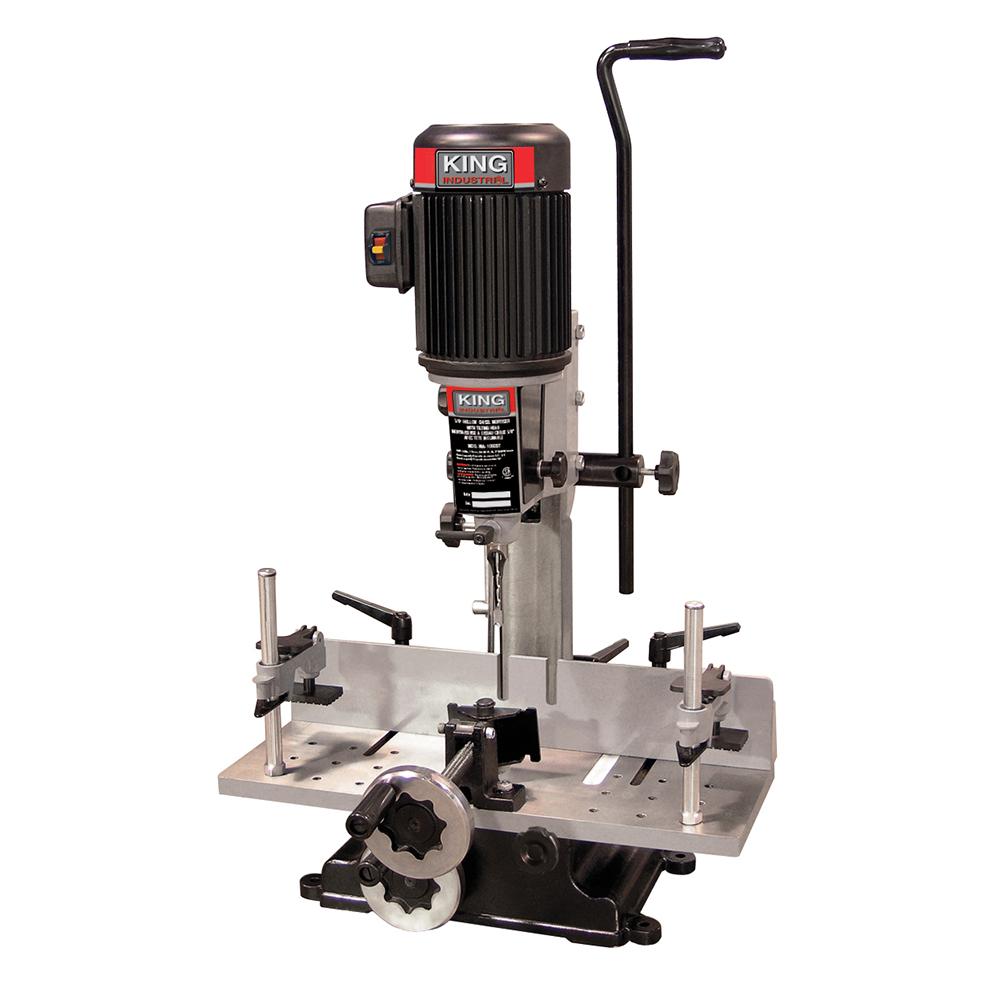

5/8" Hollow chisel mortiser with tilting head
Call For Price
- Part Number: MA-1050ST
- UPC:
- Availability: Call for availability
Info & Guides
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
5/8" Hollow chisel mortiser with tilting head
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
20'' x 16'' x 30'' / 135 lbs
Chisel capacity:
1/4'' x 5/8''
Chuck capacity:
1/2''
Fence size:
20'' x 3-9/16''
Item Length (inches):
20
Item Quantity:
1
Item Weight (lbs):
135 lbs
Max. Depth of cut at 0°:
9-1/2''
Maximum capacity:
6-1/2''
Maximum distance chuck to table:
3''
Moteur:
110V, 1 phase, 60 Hz
Package dimensions (LxWxH) / Weight:
22-1/4'' x 18-1/8'' x 27-1/4'' / 158 lbs
Product Series:
KING INDUSTRIAL
Sliding table longitudinal travel:
20'' x 8-1/4''
Sliding table transversal travel:
16''
Solvent capacity:
1,720 RPM
Spec 01:
Chisel capacity: 1/4" x 5/8"
Spec 02:
Chuck capacity: 1/2"
Spec 03:
Maximum chisel stroke: 6-1/2"
Spec 04:
Maximum distance fence to center chisel: 3"
Spec 05:
Max. Distance chisel to table (head extended): 9-1/2"
Spec 06:
Under table hold down capacity: 5-3/4"
Spec 07:
Sliding table size: 20" x 8-1/4"
Spec 08:
Sliding table travel (right-left): 16"
Spec 09:
Fence size: 20" x 3-9/16"
Spec 10:
Speed: 1,720 RPM
Spec 11:
Motor: 110V, 1 phase, 60 Hz
Spec 12:
Assembled dimensions (LxWxH) / Weight: 20" x 16" x 30" / 135 lbs
Spec 13:
Packaging dimensions (LxWxH) / Weight: 22-1/4" x 18-1/8" x 27-1/4" / 158 lbs
Under nut capacity:
5-3/4''
UNSPSC Number:
27112735
UPC Number:
7 72995 00704 2
Other Details
Adjustable depth and height stops
Comes complete with mortising chisel and bit set (1/4", 5/16", 3/8" and 1/2"), 1/2" chuck and key, column mounted hold down, pair of 9 positions table hold downs and quick release vise
Gas head cylinder for smooth and controled cuts
Heavy-duty precision machined cast-iron construction
Includes sleeve adaptors which accept 5/8" and 3/4" diameter chisel shanks
Longitudinal sliding table with locking system prevents unnecessary repositionning and reclamping of the workpiece
Powerful 3/4 HP enclosed fan cooled ribbed body Motor for long life and trouble-free operation
Rack and pinion gears move entire head for maximum leverage and positive feed control
