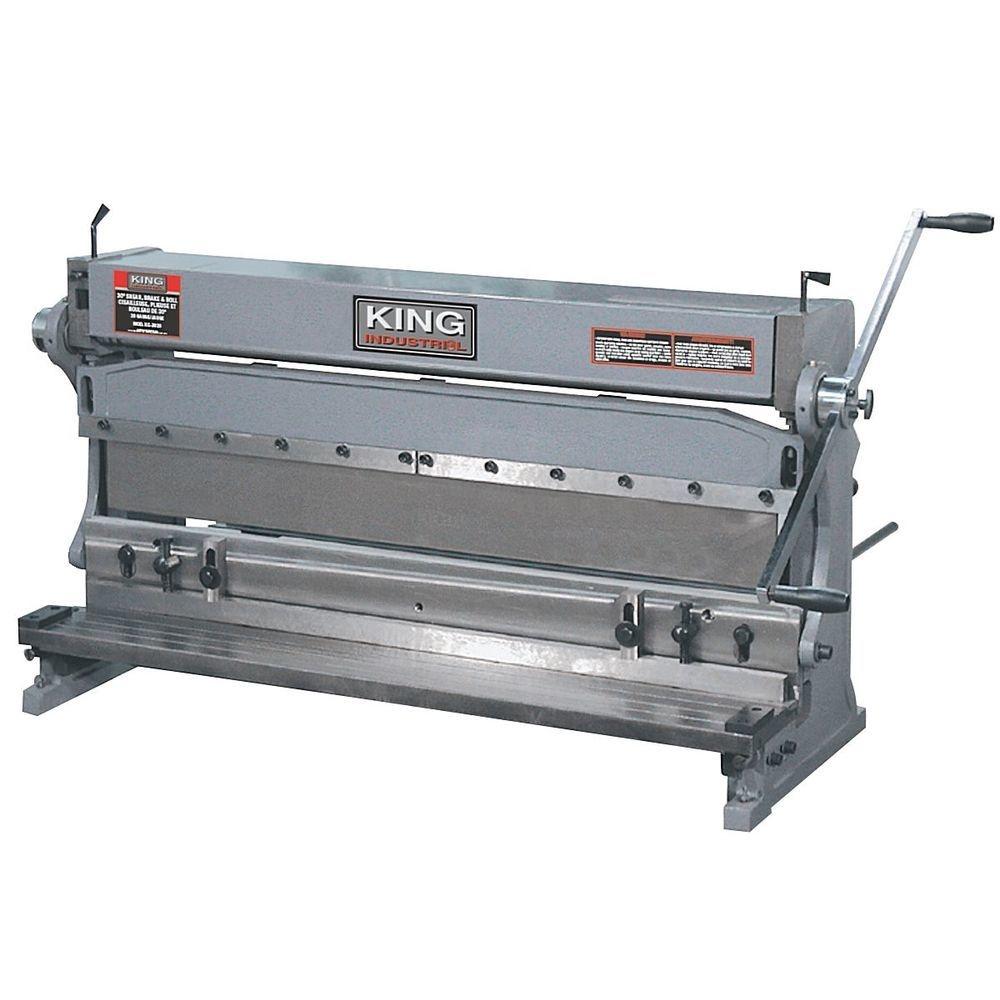

40" x 20 Ga. 3 in 1 shear, brake & roll (KC-4020)
by King Canada
40" x 20 Ga. 3-in-1 Brake, shear & roll
Product Specification
Item #
KC-4020
Dimensions
Height: 26.00"
Width: 30.00"
Additional product details
Vendor Item #
KC-4020
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Metal Forming Machines
Assembled dimensions (LxWxH) / Weight
50'' x 30'' x 26'' / 387 lbs
Brake - male die sizes
15'', 10'', 7'', 4, 2'', 1-1/2'', 1''
Brake - material stop range
1-1/4'' - 28-1/2''
Brake - maximum thickness (mild steel)
20 Gauge
Brake - shut height
4-1/2''
Item Length (inches)
50
Item Quantity
1
Item Weight (lbs)
387 lbs
Minimum length of stock for planing
15/16''
Minimum reverse bend
1-7/8'' id
Package dimensions (LxWxH) / Weight
52-3/4'' x 17-3/4'' x 28-3/8'' / 453 lbs
Product Series
KING INDUSTRIAL
Sharpening wheel size / arbor size
3-3/4'' - 30''
Shear - material stop range
40''
Shear - maximum length
20 Gauge
Sliding table travel (right-left)
40''
Slip roll - maximum length
20 Gauge
Slip roll - maximum thickness (mild steel)
3
Slip roll - number of rolls
1-11/16''
Spec 01
Shear - maximum thickness (mild steel): 20 Gauge
Spec 02
Shear - maximum length: 40"
Spec 03
Shear - material stop range: 3-3/4" - 30"
Spec 04
Brake - maximum thickness (mild steel): 20 Gauge
Spec 05
Brake - shut height: 4-1/2"
Spec 06
Brake - material stop range: 1-1/4" - 28-1/2"
Spec 07
Brake - male die sizes: 15", 10", 7", 4, 2", 1-1/2", 1"
Spec 08
Slip roll - number of rolls: 3
Spec 09
Slip roll - maximum thickness (mild steel): 20 Gauge
Spec 10
Slip roll - maximum length: 40"
Spec 11
Slip roll - roller diameter: 1-11/16"
Spec 12
Minimum roll diameter: 1-7/8" id
Spec 13
Minimum radius: 15/16"
Spec 14
Wire groove diameters: 5/32", 11/64", 7/32"
Spec 15
Assembled dimensions (LxWxH) / Weight: 50" x 30" x 26" / 387 lbs
Spec 16
Packaging dimensions (LxWxH) / Weight: 52-3/4" x 17-3/4" x 28-3/8" / 453 lbs
UNSPSC Number
23250000
UPC Number
7 72995 01285 5
Width of bedways
5/32'', 11/64'', 7/32''
Manufactured By
King Canada
Other Details:
- Bed is precision ground for an accurate working surface
- Dual edge, reversible shear blade
- Includes adjustable length stop, height stop block and extension bars with 90° angles
- One female "V” shaped die
- Slip rolls are precision turned, ground and polished with wire grooves
- Sturdy cast-iron frame
Call for Price
$
0
00
/
/ 1
($0.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
