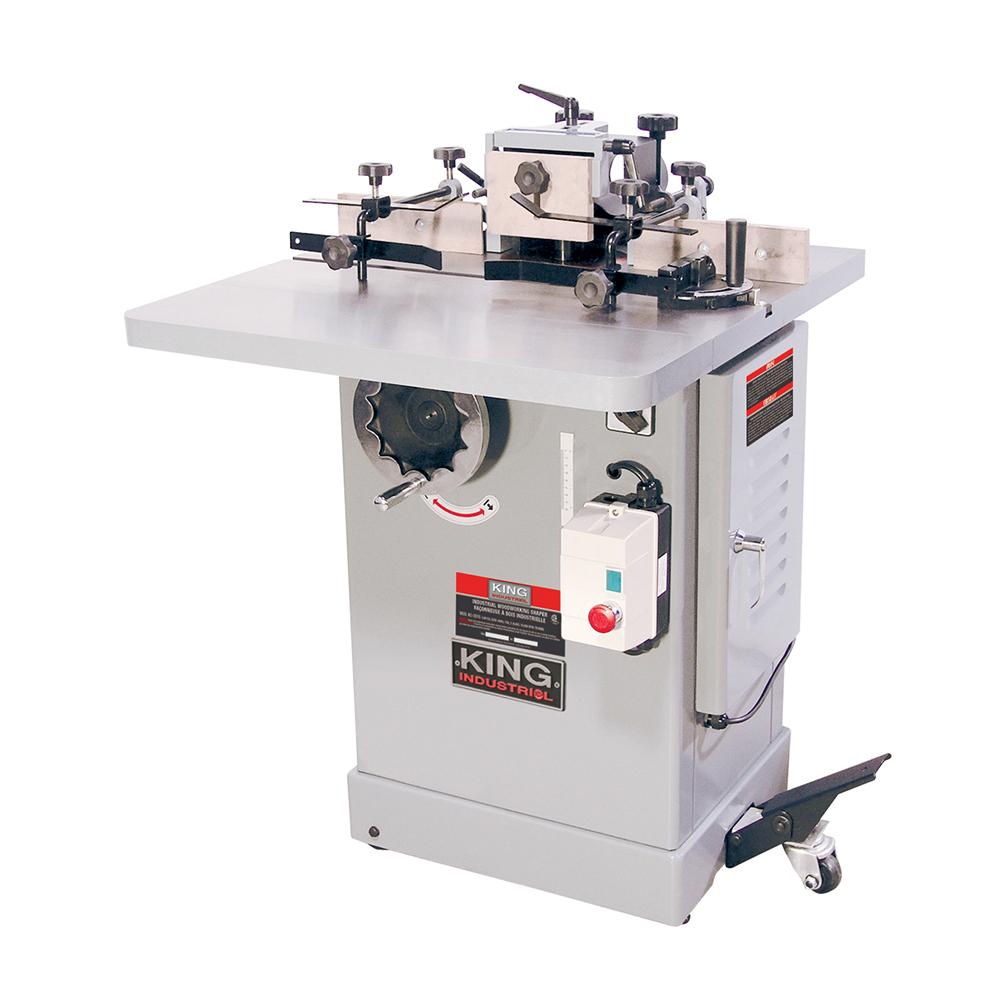

3/4" Industrial woodworking shaper (KC-351S)
by King Canada
3/4" Industrial woodworking shaper
Product Specification
Item #
KC-351S
Dimensions
Height: 46.00"
Width: 30.00"
Additional product details
Vendor Item #
KC-351S
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Wood Shapers
Assembled dimensions (LxWxH) / Weight
31'' x 30'' x 46'' / 342 lbs
Item Length (inches)
31
Item Quantity
1
Item Weight (lbs)
342 lbs
Moteur
15 Amp.
Package dimensions (LxWxH) / Weight
30'' x 30'' x 37-7/8'' / 376 lbs
Product Series
KING INDUSTRIAL
Spec 01
Spindle diameter: 1/2", 3/4"
Spec 02
Spindle speeds: 8,000 and 10,000 RPM
Spec 03
Table size: 28" x 30"
Spec 04
Spindle openings on table: 1-5/8", 3", 3-1/2", 7"
Spec 05
Spindle length: (1/2") 4", (3/4") 4-5/8"
Spec 06
Under nut capacity: (1/2") 3", (3/4") 3"
Spec 07
Table heigth: 34"
Spec 08
Motor: 15 Amp.
Spec 09
Voltage: 220V, 1 phase, 60 Hz
Spec 10
Assembled dimensions (LxWxH) / Weight: 31" x 30" x 46" / 342 lbs
Spec 11
Packaging dimensions (LxWxH) / Weight: 30" x 30" x 37-7/8" / 376 lbs
Spindle centres
1/2'', 3/4''
Spindle drums length
(1/2'') 4'', (3/4'') 4-5/8''
Spindle length & diameter
1-5/8'', 3'', 3-1/2'', 7''
Spindle speed
8,000 and 10,000 RPM
Table height from floor
34''
Table inserts
28'' x 30''
Transversal feed range
(1/2'') 3'', (3/4'') 3''
UNSPSC Number
23241633
UPC Number
7 72995 00606 9
Variable speeds (wood)
220V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- Adjustable fence system features a cutter guard, spring hold-downs and built-in 4" dust chute
- Comes complete with 1/2" and 3/4" interchangeable spindles, 1/4" and 1/2" router bit adapters and a miter gauge
- Extra large heavy-duty cast-iron table and extension table are ground for accuracy
- Front mounted forward reverse switch and magnetic safety switch
- Mobile base system built into the cabinet
- Powerful 3 HP Motor - 3/4" wood shaper
- Spindle travels a full 3"
- Two spindle Speeds, 8,000 and 10,000 RPM
