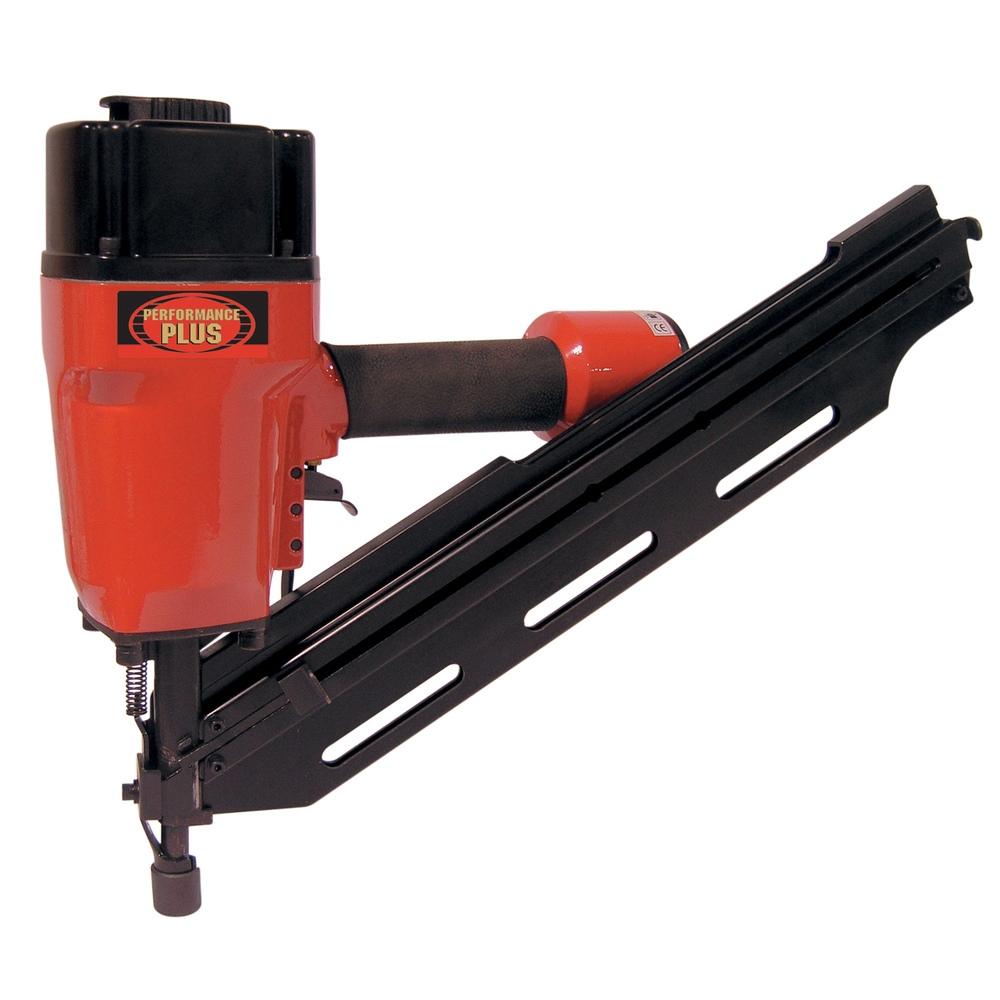

28° Clipped head framing nailer kit

28° Clipped head framing nailer kit

Call For Price
  • Part Number: 8228N
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
28 degree clipped head framing nailer kit
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Pneumatic Tools
Industrial Subtype:
Air Nailers
Air consumption:
5-8 CFM (70-120 PSI)
Assembled dimensions (LxWxH) / Weight:
19'' x 4-1/4'' x 14-1/2'' / 9.5 lbs
Item Length (inches):
19
Item Quantity:
1
Item Weight (lbs):
9.5 lbs
Longitudinal feed range:
100
Moulding feed rate:
.113'' - .131''
Nail diameter range:
28°-30°
Nail size:
2-3/16'' - 3-9/16''
Nail size range:
120 /min @ 90 PSI
Oil capacity (l):
70-120 PSI
Overall width across forks:
22'' x 7'' x 19'' / 19 lbs
Product Series:
PERFORMANCE PLUS
Range of spindle speeds:
Stanley-bostitch-28° / porter-cable-28° / hitachi-30° / paslode-30° / senco frame pro-30°
Spec 01:
Nail range: 28°-30°
Spec 02:
Nail size range: 2-3/16" - 3-9/16"
Spec 03:
Nail diameter range: .113" - .131"
Spec 04:
Recommended nails: Stanley-bostitch-28° / porter-cable-28° / hitachi-30° / paslode-30° / senco frame pro-30°
Spec 05:
Magazine capacity: 100
Spec 06:
Operating pressure: 70-120 PSI
Spec 07:
Air consumption: 5-8 CFM (70-120 PSI)
Spec 08:
Nailer discharge rate: 120 /min @ 90 PSI
Spec 09:
Assembled dimensions (LxWxH) / Weight: 19" x 4-1/4" x 14-1/2" / 9.5 lbs
Spec 10:
Package dimensions (LxWxH) / Weight: 22" x 7" x 19" / 19 lbs
UNSPSC Number:
44121615
UPC Number:
7 72995 00521 5
Other Details
1/4" Air inlet
360º directional air deflector
Comes with safety glasses, oiler, hex. keys and carrying case
It is recommended to use Stanley-Bostitch 28° wire-collated nails or Paslode 30° paper-collated (Prostrip)
Powerful framing nailer drives standard 28° - 30° clipped head nails
Protective nose tip for decking
Serrated nose tip for positive grip when toe nailing
Special hardened driver for long, trouble free performance
Trigger for sequential and bump firing modes
