22" Drill press

22" Drill press

Call For Price
  • Part Number: KC-122FC
  • UPC:
  • Availability: Call for availability

Info & Guides

Video
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
22" Floor model drill press
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
18-3/4'' x 33'' x 69'' / 320 lbs
Capacity:
1-1/4''
Chuck size:
3/4''
Item Length (inches):
18.75
Item Quantity:
1
Item Weight (lbs):
320 lbs
Max. Distance chuck to table:
41-7/8''
Max. Distance from chuck to column:
21-3/4''
Moteur:
12.5 Amp.@110V, 6.25 Amp.@220V
Pre-wired:
110V
Product Series:
KING INDUSTRIAL
Qty:
75 mm
Shipping weight:
5/8''
Spec 01:
Capacity: 1-1/4"
Spec 02:
Chuck size: 3/4"
Spec 03:
Swing: 22"
Spec 04:
Stroke: 4-3/4"
Spec 05:
Max. Distance from chuck to table: 21-3/4"
Spec 06:
Max. Distance from chuck to base: 41-7/8"
Spec 07:
Table size: 18-3/4" x 16-1/4"
Spec 08:
Size of T-slot on table: 5/8"
Spec 09:
Spindle taper: MT #4
Spec 10:
Quill diameter: 75 mm
Spec 11:
Speeds (RPM): 12 (180 - 4,200)
Spec 12:
Motor: 12.5 Amp.@110V, 6.25 Amp.@220V
Spec 13:
Voltage: 110V/220V, 1 phase, 60 Hz
Spec 14:
Pre-wired at: 110V
Spec 15:
Assembled dimensions (LxWxH) / Weight: 18-3/4" x 33" x 69" / 320 lbs
Speeds:
12 (180 - 4,200)
Spindle stroke:
MT #4
Steel drum capacity:
4-3/4''
Suction head lift:
22''
Table inserts:
18-3/4'' x 16-1/4''
UNSPSC Number:
23241801
UPC Number:
7 72995 00256 6
Variable speeds (wood):
110V/220V, 1 phase, 60 Hz
Other Details
12 Speeds
45° tilting table for angular drilling
Cast-iron pulleys reduce vibrations
Light socket incorporated into drill press head (standard light bulb not included)

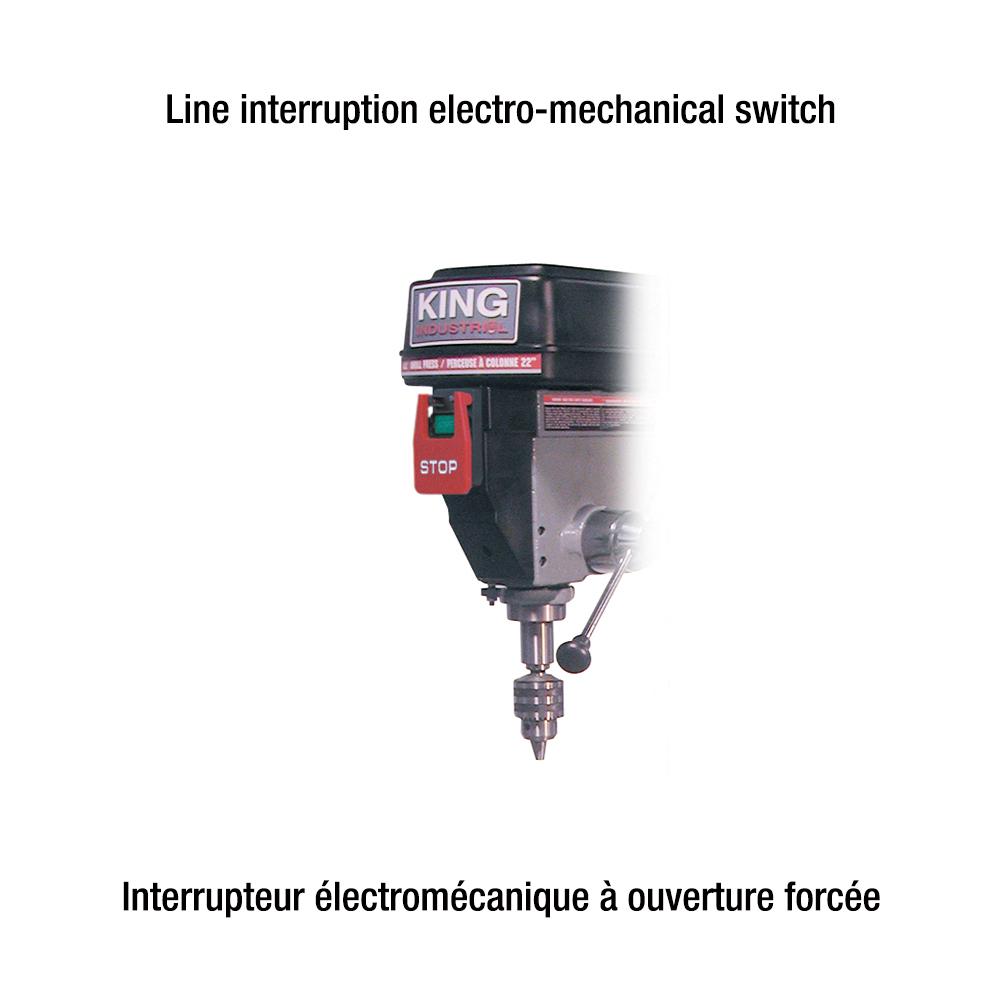

Line interruption electro-mechanical switch needs a restart after a power failure
Non-slip rubber feed handles
Powerful 1 HP Motor
Spindle is supported by high quality ball bearings
