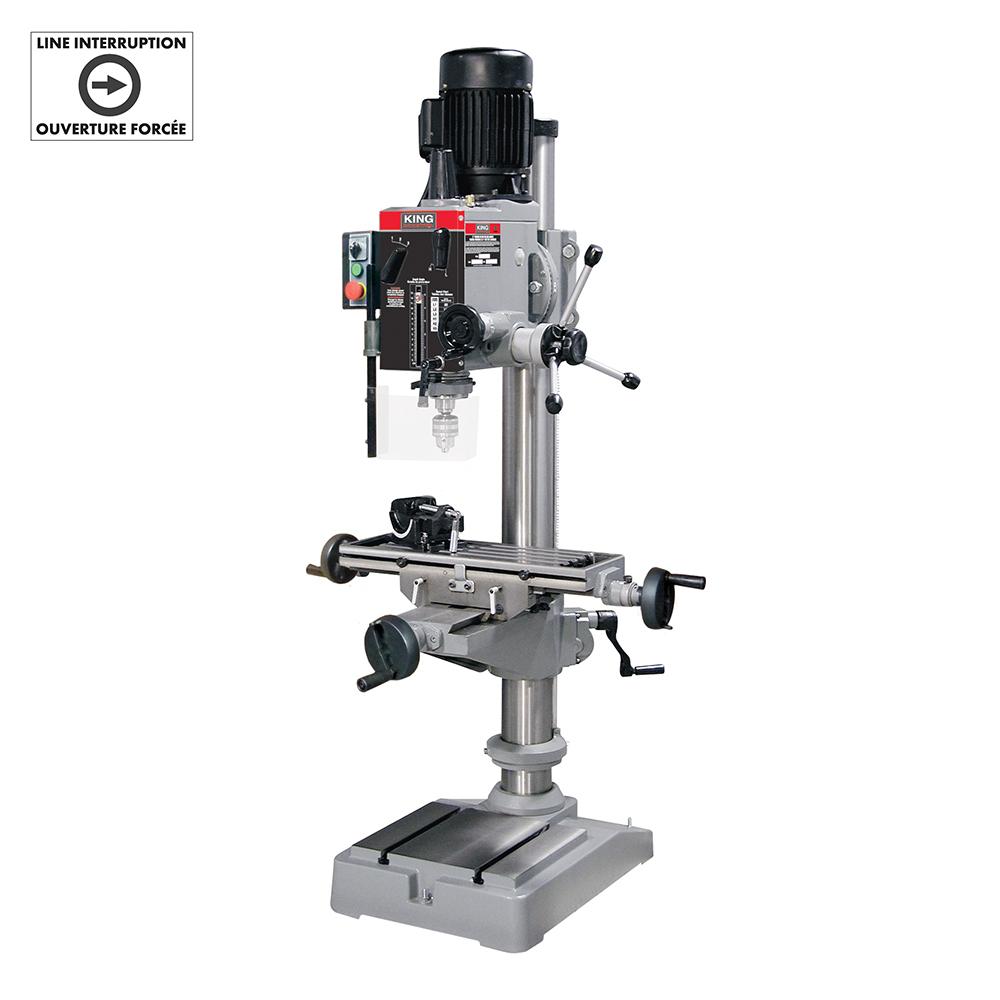

21" Gearhead milling drilling machine (600V, 3 phase) (KC-40HC-6)
by King Canada
21" Gearhead milling drilling machine (600V, 3 phase)
Product Specification
Item #
KC-40HC-6
Dimensions
Height: 78.00"
Width: 37.00"
Additional product details
Vendor Item #
KC-40HC-6
Industrial Category
Machining
Industrial Subcategory
Machinery
Industrial Subtype
Drilling Machines
Assembled dimensions (LxWxH) / Weight
38'' x 37'' x 78'' / 630 lbs
Cross travel
6-1/4''
Diameter of column
4-1/2''
Drilling capacity
1-1/4''
End mill capacity
3/4''
Face mill capacity
4''
Item Length (inches)
38
Item Quantity
1
Item Weight (lbs)
630 lbs
Max. Distance from chuck to table
47''
Max. Distance spindle nose to milling table
26-1/2''
Max. Spindle distance to table
14-1/2''
Moteur
2 Amp.
Package dimensions (LxWxH) / Weight
29-1/4'' x 33'' x 73'' / 690 lbs
Product Series
KING INDUSTRIAL
Shipping weight
1/2''
Spec 01
Drilling capacity: 1-1/4"
Spec 02
Max. Distance spindle nose to table: 26-1/2"
Spec 03
Max. Distance spindle nose to base: 47"
Spec 04
Swing: 20-7/16"
Spec 05
Spindle taper: R8
Spec 06
Spindle stroke: 5"
Spec 07
Diameter of column: 4-1/2"
Spec 08
Speeds: 6 (60-1,500) RPM
Spec 09
Face mill capacity: 4"
Spec 10
End mill capacity: 3/4"
Spec 11
Table size: 23" x 7-1/2"
Spec 12
Max. Table travel: 14-1/2"
Spec 13
Cross travel: 6-1/4"
Spec 14
Size of T-slot on table: 1/2"
Spec 15
Motor: 2 Amp.
Spec 16
Voltage: 600V, 3 phase, 60 Hz
Spec 17
Assembled dimensions (LxWxH) / Weight: 38" x 37" x 78" / 630 lbs
Spec 18
Packaging dimensions (LxWxH) / Weight: 29-1/4" x 33" x 73" / 690 lbs
Speed (wheel / motor)
6 (60-1,500) RPM
Spindle speeds
5''
Spindle stroke
R8
Suction head lift
20-7/16''
Table inserts
23'' x 7-1/2''
UNSPSC Number
23101502
UPC Number
7 72995 00405 8
Variable speeds (wood)
600V, 3 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- Comes complete with 1/2" chuck with key, 3-1/2" angle vise and safety guard
- Forward and reverse switch
- Magnetic line interruption switch needs a restart after a power failure
- Powerful single phase 1.5 HP Motor
- Spindle is equipped with four heavy-duty tapered roller bearings
