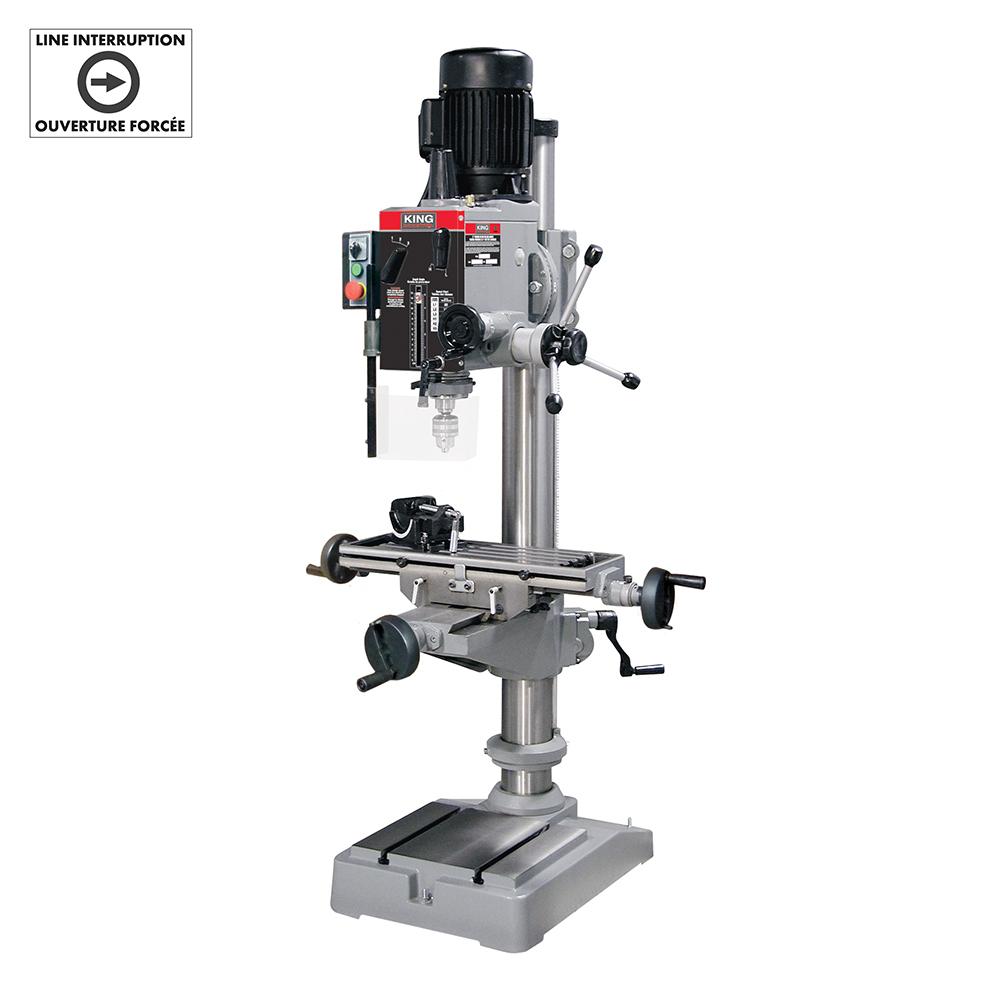

21" Gearhead milling drilling machine (220V)

21" Gearhead milling drilling machine (220V)

Call For Price
  • Part Number: KC-40HC
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
21" Gearhead milling drilling machine (220V)
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machinery
Industrial Subtype:
Drilling Machines
Assembled dimensions (LxWxH) / Weight:
38'' x 37'' x 78'' / 630 lbs
Cross travel:
6-1/4''
Diameter of column:
4-1/2''
Drilling capacity:
1-1/4''
End mill capacity:
3/4''
Face mill capacity:
4''
Item Length (inches):
38
Item Quantity:
1
Item Weight (lbs):
630 lbs
Max. Distance from chuck to table:
47''
Max. Distance spindle nose to milling table:
26-1/2''
Max. Spindle distance to table:
14-1/2''
Moteur:
8.8 Amp.
Package dimensions (LxWxH) / Weight:
29-1/4'' x 33'' x 73'' / 690 lbs
Product Series:
KING INDUSTRIAL
Shipping weight:
1/2''
Spec 01:
Drilling capacity: 1-1/4"
Spec 02:
Max. Distance spindle nose to table: 26-1/2"
Spec 03:
Max. Distance spindle nose to base: 47"
Spec 04:
Swing: 20-7/16"
Spec 05:
Spindle taper: R8
Spec 06:
Spindle stroke: 5"
Spec 07:
Diameter of column: 4-1/2"
Spec 08:
Speeds: 6 (60-1,500) RPM
Spec 09:
Face mill capacity: 4"
Spec 10:
End mill capacity: 3/4"
Spec 11:
Table size: 23" x 7-1/2"
Spec 12:
Max. Table travel: 14-1/2"
Spec 13:
Cross travel: 6-1/4"
Spec 14:
Size of T-slot on table: 1/2"
Spec 15:
Motor: 8.8 Amp.
Spec 16:
Voltage: 220V, 1 phase, 60 Hz
Spec 17:
Assembled dimensions (LxWxH) / Weight: 38" x 37" x 78" / 630 lbs
Spec 18:
Packaging dimensions (LxWxH) / Weight: 29-1/4" x 33" x 73" / 690 lbs
Speed (wheel / motor):
6 (60-1,500) RPM
Spindle speeds:
5''
Spindle stroke:
R8
Suction head lift:
20-7/16''
Table inserts:
23'' x 7-1/2''
UNSPSC Number:
23101502
UPC Number:
7 72995 40000 3
Variable speeds (wood):
220V, 1 phase, 60 Hz
Other Details
Comes complete with 1/2" chuck with key, 3-1/2" angle vise and safety guard
Forward and reverse switch
Magnetic line interruption switch needs a restart after a power failure
Powerful single phase 1.5 HP Motor
Safety guard with limit switch protection
Spindle is equipped with four heavy-duty tapered roller bearings
