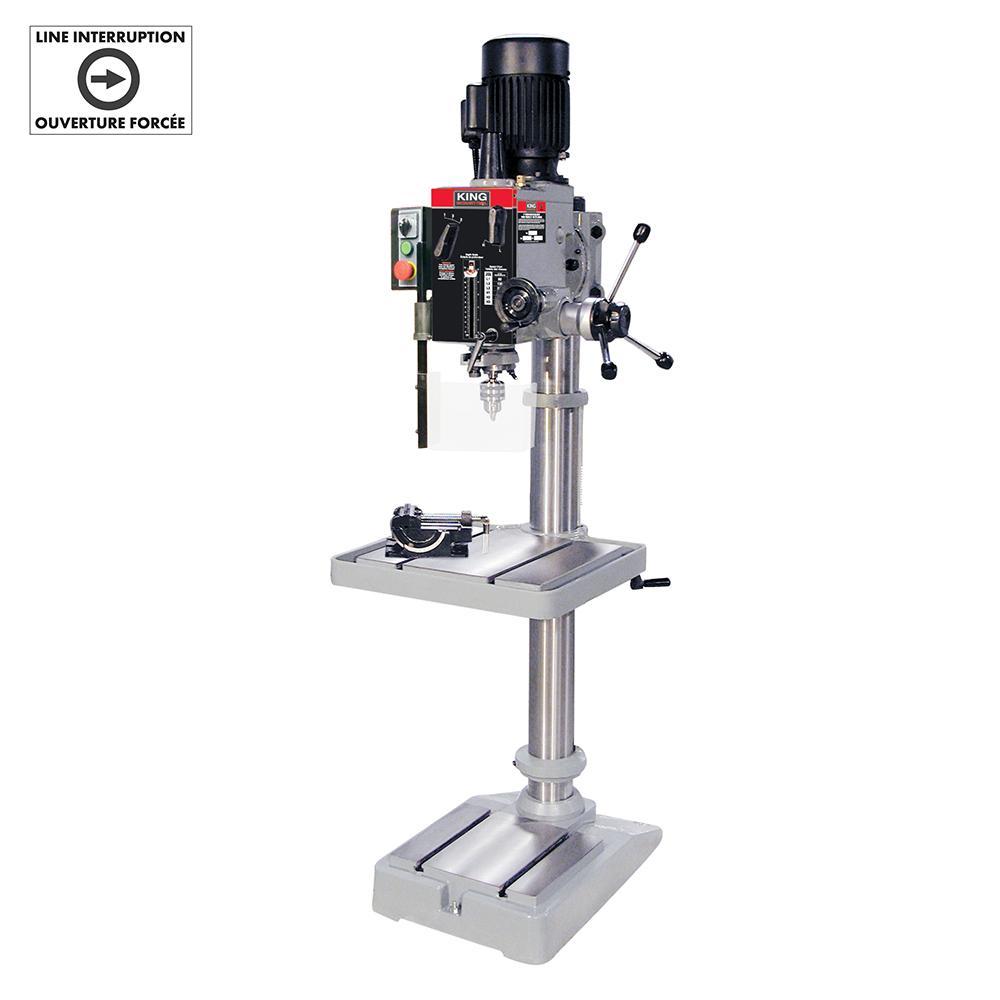

21" Gearhead drilling machine (600V, 3 phase)

21" Gearhead drilling machine (600V, 3 phase)

Call For Price
  • Part Number: KC-40HS-6
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
21" Gearhead drilling machine (600V, 3 phase)
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
21-1/4'' x 30'' x 78'' / 575 lbs
Diameter of column:
4-1/2''
Drilling capacity:
1-1/4''
End mill capacity:
3/4''
Face mill capacity:
4''
Item Length (inches):
21.25
Item Quantity:
1
Item Weight (lbs):
575 lbs
Max. Distance from chuck to table:
47''
Max. Distance spindle nose to milling table:
22''
Moteur:
2 Amp.
Package dimensions (LxWxH) / Weight:
29-1/4'' x 32-3/4'' x 73-3/8'' / 735 lbs
Product Series:
KING INDUSTRIAL
Shipping weight:
5/8''
Spec 01:
Drilling capacity: 1-1/4"
Spec 02:
Max. Distance spindle nose to table: 22"
Spec 03:
Max. Distance spindle nose to base: 47"
Spec 04:
Swing: 20-7/16"
Spec 05:
Spindle taper: MT #3
Spec 06:
Spindle stroke: 5"
Spec 07:
Diameter of column: 4-1/2"
Spec 08:
Speeds: 6 (60-1,500) RPM
Spec 09:
Face mill capacity: 4"
Spec 10:
End mill capacity: 3/4"
Spec 11:
Table size: 21-3/4" x 19-1/2"
Spec 12:
Size of T-slot on table: 5/8"
Spec 13:
Motor: 2 Amp.
Spec 14:
Voltage: 600V, 3 phase, 60 Hz
Spec 15:
Assembled dimensions (LxWxH) / Weight: 21-1/4" x 30" x 78" / 575 lbs
Spec 16:
Packaging dimensions (LxWxH) / Weight: 29-1/4" x 32-3/4" x 73-3/8" / 735 lbs
Speed (wheel / motor):
6 (60-1,500) RPM
Spindle speeds:
5''
Spindle stroke:
MT #3
Suction head lift:
20-7/16''
Table inserts:
21-3/4'' x 19-1/2''
UNSPSC Number:
23101502
UPC Number:
7 72995 00817 9
Variable speeds (wood):
600V, 3 phase, 60 Hz
Other Details
Comes complete with 1/2" chuck with key, 3-1/2" angle vise and safety guard
Forward and reverse switch
Magnetic line interruption switch needs a restart after a power failure
Powerful single phase 1.5 HP Motor
Safety guard with limit switch protection
Spindle is equipped with four heavy-duty tapered roller bearings
