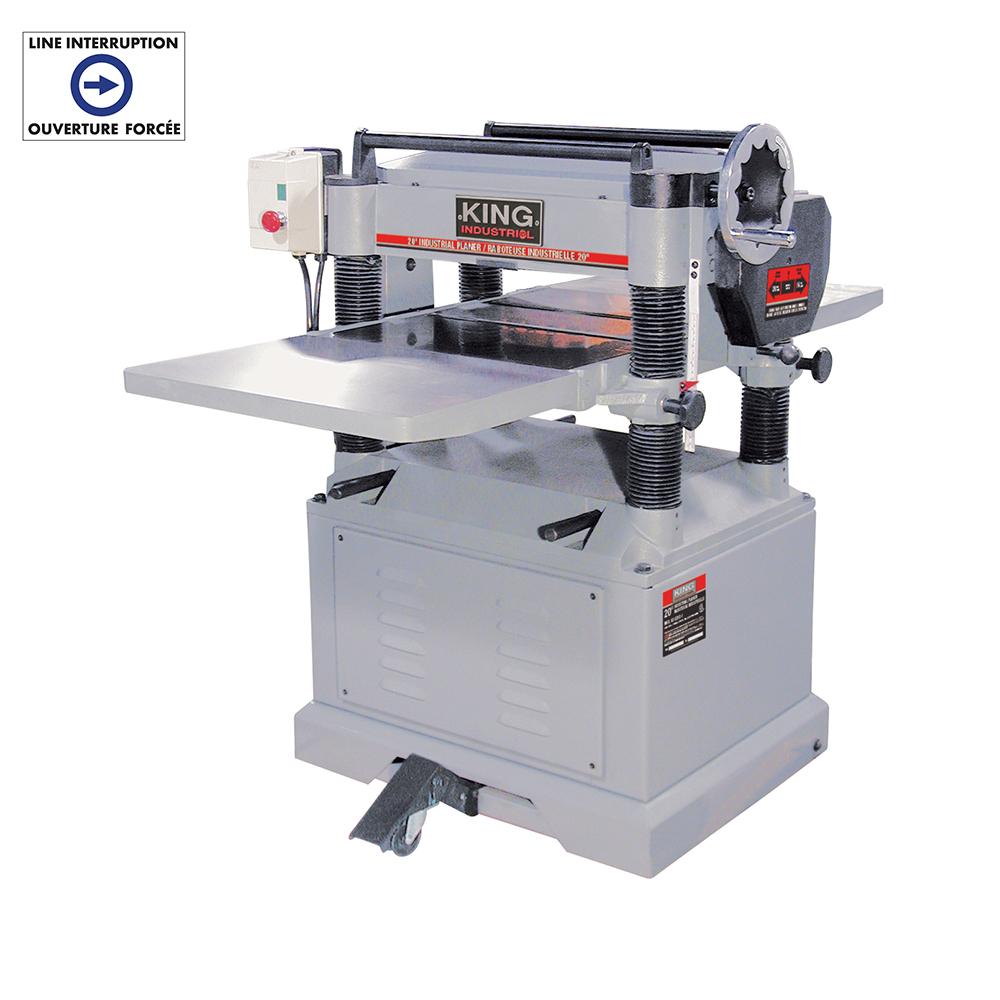

20" Industrial planer (KC-520C)
by King Canada
20" Industrial planer
Downloads
Product Specification
Item #
KC-520C
Dimensions
Height: 42.00"
Width: 56.50"
Additional product details
Vendor Item #
KC-520C
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Planers, Jointers and Beveler
Category Level 4
Planers and Accessories
Assembled dimensions (LxWxH) / Weight
40'' x 56-1/2'' x 42'' / 830 lbs
Cutterhead diameter
3.15''
Cutterhead speed
5,000 RPM
Feed rate
2 (16-20) FPM
Item Length (inches)
40
Item Quantity
1
Item Weight (lbs)
830 lbs
Maximum depth of box
3/32''
Maximum planing depth
8''
Maximum planing thickness
20''
Moteur
19 Amp.
Number and range of modular pitches
104 - 83
Number of feed rollers
4
Package dimensions (LxWxH) / Weight
38-1/4'' x 29-1/4'' x 47-1/8'' / 860 lbs
Product Series
KING INDUSTRIAL
Spec 01
Maximum planing width: 20"
Spec 02
Maximum planing thickness: 8"
Spec 03
Maximum depth of cut: 3/32"
Spec 04
Total surface of work table: 56-1/2" x 20"
Spec 05
Cutterhead speed: 5,000 RPM
Spec 06
Cutterhead diameter: 3.15"
Spec 07
Number of knives: 4
Spec 08
Feed rate: 2 (16-20) FPM
Spec 09
Number of cuts per inch: 104 - 83
Spec 10
Motor: 19 Amp.
Spec 11
Voltage: 220V, 1 phase, 60 Hz
Spec 12
Assembled dimensions (LxWxH) / Weight: 40" x 56-1/2" x 42" / 830 lbs
Spec 13
Packaging dimensions (LxWxH) / Weight: 38-1/4" x 29-1/4" x 47-1/8" / 860 lbs
Total head lift
56-1/2'' x 20''
UNSPSC Number
23231904
UPC Number
7 72995 00258 0
Variable speeds (wood)
220V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- 4 knife cutterhead allows rapid cutting while producing a superior finish
- Anti-kickback fingers in front of the infeed roller prevents wood kickback
- Comes with knife setting gauge and 5" dust chute
- Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
- Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
- Magnetic safety switch
- Mobile base system built into cabinet
- Powerful 5 HP Motor
- Solid cast-iron extension tables
- Table raises and lowers on four precision ground columns for extra stability
