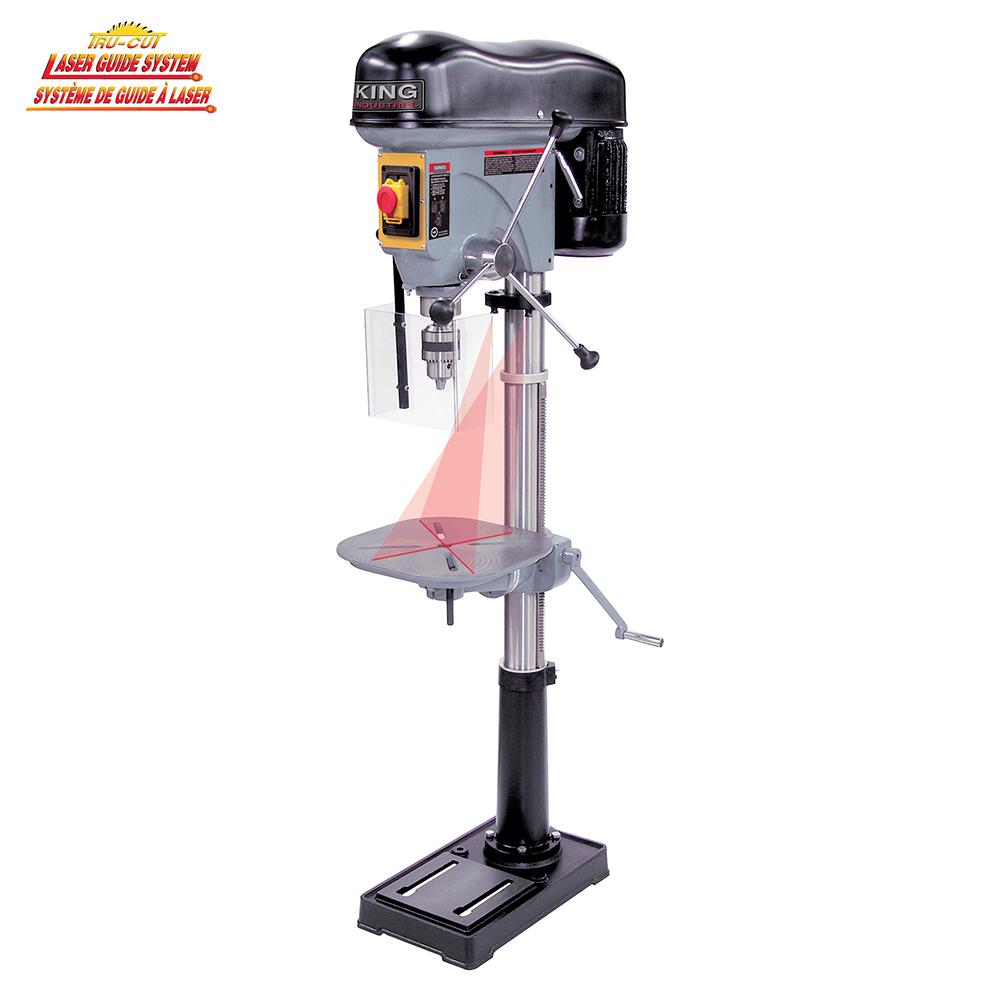

17" Long stroke drill press with safety guard

17" Long stroke drill press with safety guard

Call For Price
  • Part Number: KC-119FC-LS
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
17'' Long stroke floor model drill press with safety guard and limit switch
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
14'' x 29'' x 67-1/4'' / 230 lbs
Capacity:
3/4''
Chuck size:
3/4''
Item Length (inches):
14
Item Quantity:
1
Item Weight (lbs):
230 lbs
Max. Distance from chuck to base:
8-7/16''
Max. Distance from chuck to column:
23-3/4''
Motor speed:
12.5 Amp. @ 110V, 6.25 Amp. @ 220V
Package dimensions (LxWxH) / Weight:
55-1/2'' x 27-1/2'' x 11'' / 241 lbs
Power cord length:
110V
Product Series:
KING INDUSTRIAL
Qty:
75 mm
Spec 01:
Capacity: 3/4"
Spec 02:
Chuck size: 3/4"
Spec 03:
Swing: 16-15/16"
Spec 04:
Stroke: 6"
Spec 05:
Max. Distance from chuck to table: 23-3/4"
Spec 06:
Max. Distance from chuck to column: 8-7/16"
Spec 07:
Table size: 14" x 14"
Spec 08:
Spindle taper: MT #3
Spec 09:
Quill diameter: 75 mm
Spec 10:
Speeds: 12 (255 - 2,750) RPM
Spec 11:
Motor/voltage: 12.5 Amp. @ 110V, 6.25 Amp. @ 220V
Spec 12:
Pre-wired: 110V
Spec 13:
Assembled dimensions (LxWxH) / Weight: 14" x 29" x 67-1/4" / 230 lbs
Spec 14:
Packaging dimensions (LxWxH) / Weight: 55-1/2" x 27-1/2" x 11" / 241 lbs
Speed (wheel / motor):
12 (255 - 2,750) RPM
Spindle stroke:
MT #3
Steel drum capacity:
6''
Suction head lift:
16-15/16''
Table inserts:
14'' x 14''
UNSPSC Number:
23241801
UPC Number:
7 72995 01425 5
Other Details
12 Speed (255-2,750 spindle RPM)
2 step activation safety switch with line Voltage interruption in case of power failure
45° tilting table for angular drilling
Cast-iron pulleys reduce vibration
Comes with 3/4” drill chuck, spring loaded chuck key, knock-out wedge and adjustment hex. keys
Dual intersecting adjustable laser guides
Long 6” Stroke allows this drill press to drill deeper than most
Powerful 1 HP TEFC Motor
Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
Safety guard with limit switch protection
