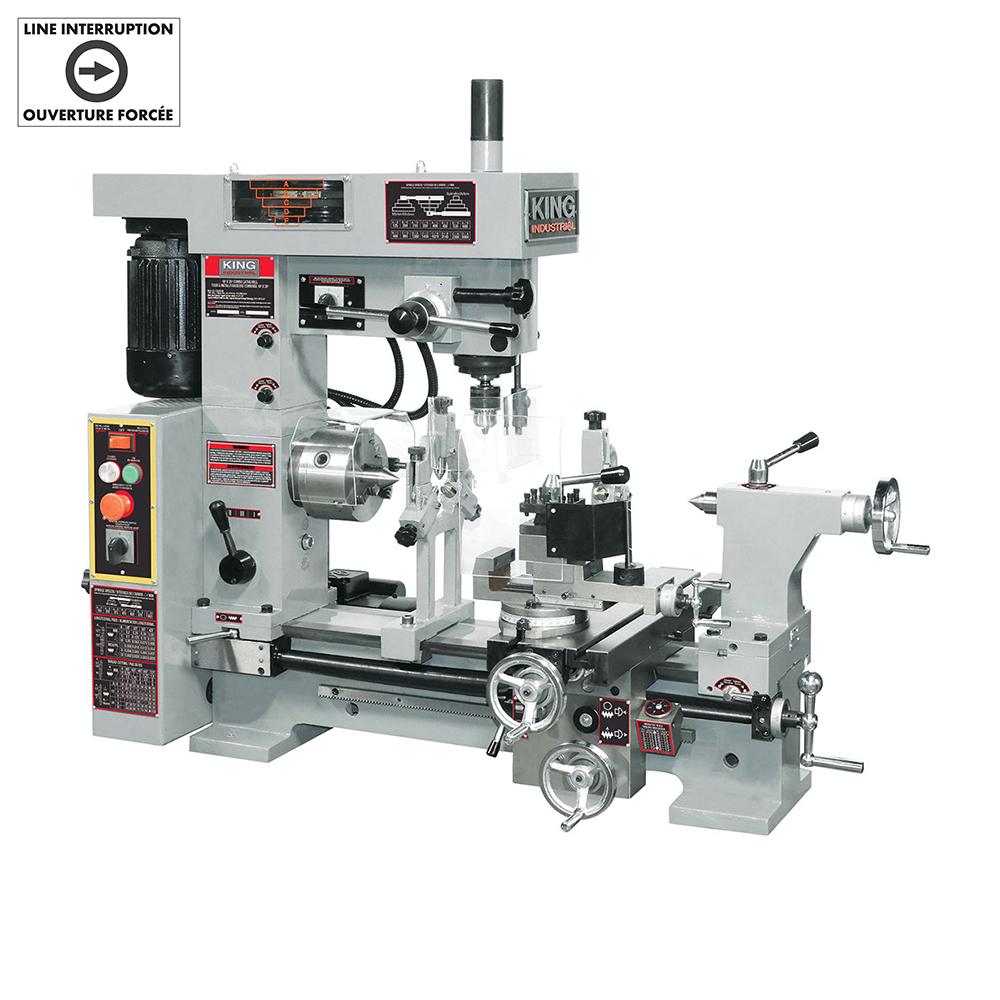

16" x 20" Combo lathe/mill

16" x 20" Combo lathe/mill

Call For Price
  • Part Number: KC-1620CLM
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
16" x 20" Combo lathe/mill
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Specialty Finishing Tools
Category Level 4:
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight:
43'' x 19-1/2'' x 38'' / 515 lbs
Automatic feeding range:
0.002-0.014'' / 0.05-0.35mm
Cross slide travel:
8''
Distance between centres:
20''
Drilling speeds:
16 (120-3,000 RPM)
Drilling/face mill/end mill capacities:
7/8'' / 1-1/8'' / 3-1/8''
Item Length (inches):
43
Item Quantity:
1
Item Weight (lbs):
515 lbs
Knee travel:
7 (160-1,360 RPM)
Max. Distance spindle nose to base:
12''
Motor/voltage:
3/4 HP, 110V, 9 Amp., 1 phase, 60 Hz
Overall width across forks:
45'' x 23'' x 42'' / 615 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Distance between centres: 20"
Spec 02:
Swing over bed and carriage: 16-1/2" / 11-1/2"
Spec 03:
Spindle bore: 1-1/8"
Spec 04:
Headstock/tailstock tapers: MT#4 / MT#3
Spec 05:
Cross slide travel: 8"
Spec 06:
Lathe spindle speeds: 7 (160-1,360 RPM)
Spec 07:
Thread cutting range: 36 (4-120 TPI) 22 (0.2-6mm)
Spec 08:
Automatic feeding range: 0.002-0.014" / 0.05-0.35mm
Spec 09:
Drilling/face mill/end mill capacities: 7/8" / 1-1/8" / 3-1/8"
Spec 10:
Max. Distance spindle nose to milling table: 12"
Spec 11:
Drilling speeds: 16 (120-3,000 RPM)
Spec 12:
Motors (lathe/mill): 3/4 HP, 110V, 9 Amp., 1 phase, 60 Hz
Spec 13:
Assembled dimensions (LxWxH) / Weight: 43" x 19-1/2" x 38" / 515 lbs
Spec 14:
Package dimensions (LxWxH) / Weight: 45" x 23" x 42" / 615 lbs
Spindle:
1-1/8''
Swing over bed:
16-1/2'' / 11-1/2''
tailstock taper:
MT#4 / MT#3
Thread cutting:
36 (4-120 TPI) 22 (0.2-6mm)
UNSPSC Number:
23101513
UPC Number:
7 72995 01540 5
Other Details
Bedways are hardened and precision ground
Comes with 5"- 3 jaw chuck, imperial and metric change gears, quick change tool post, steady rest, follow rest, thread chasing dial indicator, MT#3 and MT#4 dead centres, 1/2" drill chuck and tool box with adjusting tools
Easily change from Lathe mode to Mill mode
Forward/reverse switch for both operating modes
Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
Two powerful 3/4 HP 110V Motors
