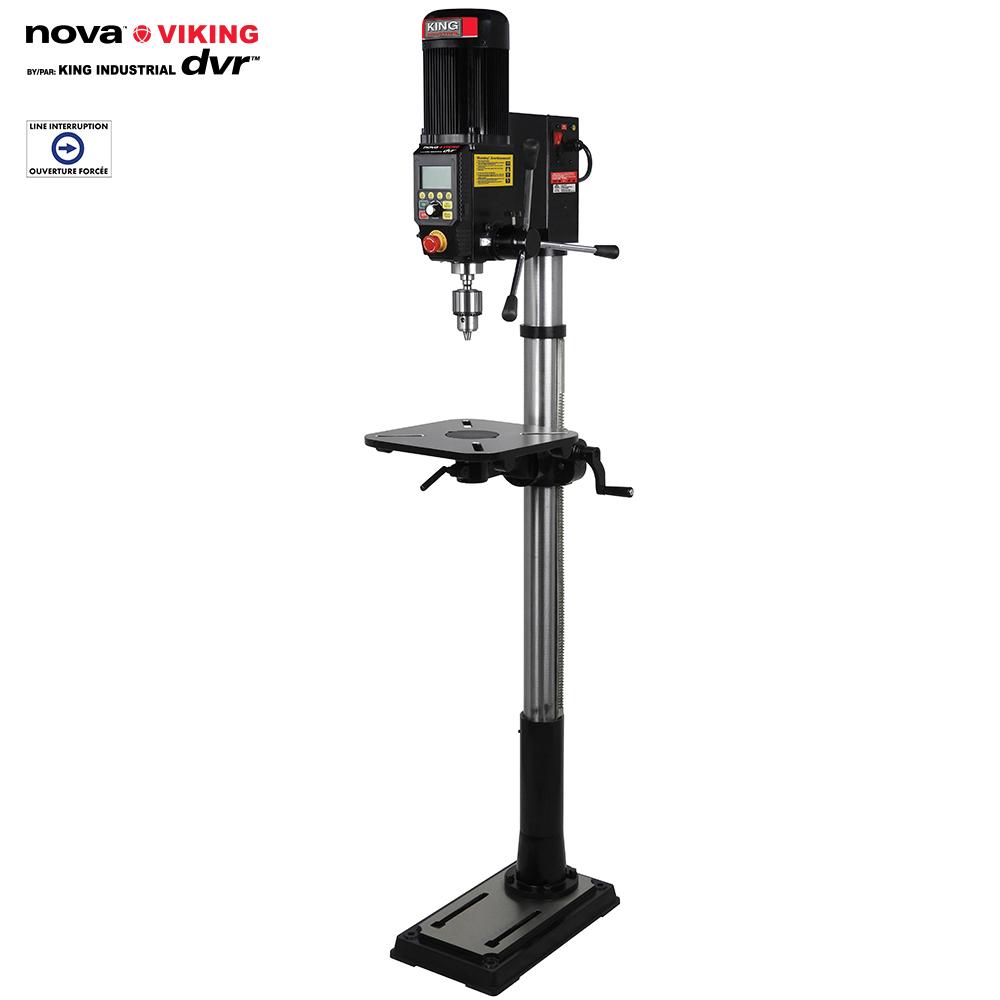

16" Nova viking DVR floor model drill press

16" Nova viking DVR floor model drill press

Call For Price
  • Part Number: 83705
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
16'' Nova Viking DVR floor model drill press
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
12-5/8'' x 20'' x 72'' / 160 lbs
Capacity:
5/8''
Chuck size:
5/8''
Item Length (inches):
12.625
Item Quantity:
1
Item Weight (lbs):
160 lbs
Max. Distance chisel to table (head extended):
46-3/4''
Max. Distance chuck to column:
26-5/8''
Moteur:
1 HP, 15 Amp.
Package dimensions (LxWxH) / Weight:
71-7/8'' x 21-1/2'' x 18-5/8'' / 170 lbs
Product Series:
KING INDUSTRIAL
Qty:
60 mm
Spec 01:
Capacity: 5/8"
Spec 02:
Chuck size: 5/8"
Spec 03:
Swing: 16"
Spec 04:
Max. Distance chuck to table: 26-5/8"
Spec 05:
Max. Distance chuck to base: 46-3/4"
Spec 06:
Stroke: 4-1/2"
Spec 07:
Table size: 12-5/8" x 12-5/8"
Spec 08:
Spindle taper: MT #2
Spec 09:
Quill diameter: 60 mm
Spec 10:
Variable speed range (optional setting): 150 - 3,000 RPM (3,000 - 6,000)
Spec 11:
Motor: 1 HP, 15 Amp.
Spec 12:
Voltage: 120V, 60 Hz, 1 phase
Spec 13:
Assembled dimensions (LxWxH) / Weight: 12-5/8" x 20" x 72" / 160 lbs
Spec 14:
Packaging dimensions (LxWxH) / Weight: 71-7/8" x 21-1/2" x 18-5/8" / 170 lbs
Spindle stroke:
MT #2
Steel drum capacity:
4-1/2''
Suction head lift:
16''
Table inserts:
12-5/8'' x 12-5/8''
UNSPSC Number:
23242300
UPC Number:
7 72995 016785
Variable speed range:
150 - 3,000 RPM (3,000 - 6,000)
Variable speeds (wood):
120V, 60 Hz, 1 phase
Other Details
Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
Constant torque under load, depth and vibration sensors and emergency stopIntelligent speed selection and dial knob for precise speed adjustments
Convenient LED light and twin laser guide system
Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
Electronic braking and forward/reverse
Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration
Smart drill press combines common drill press features with state of the art technology
