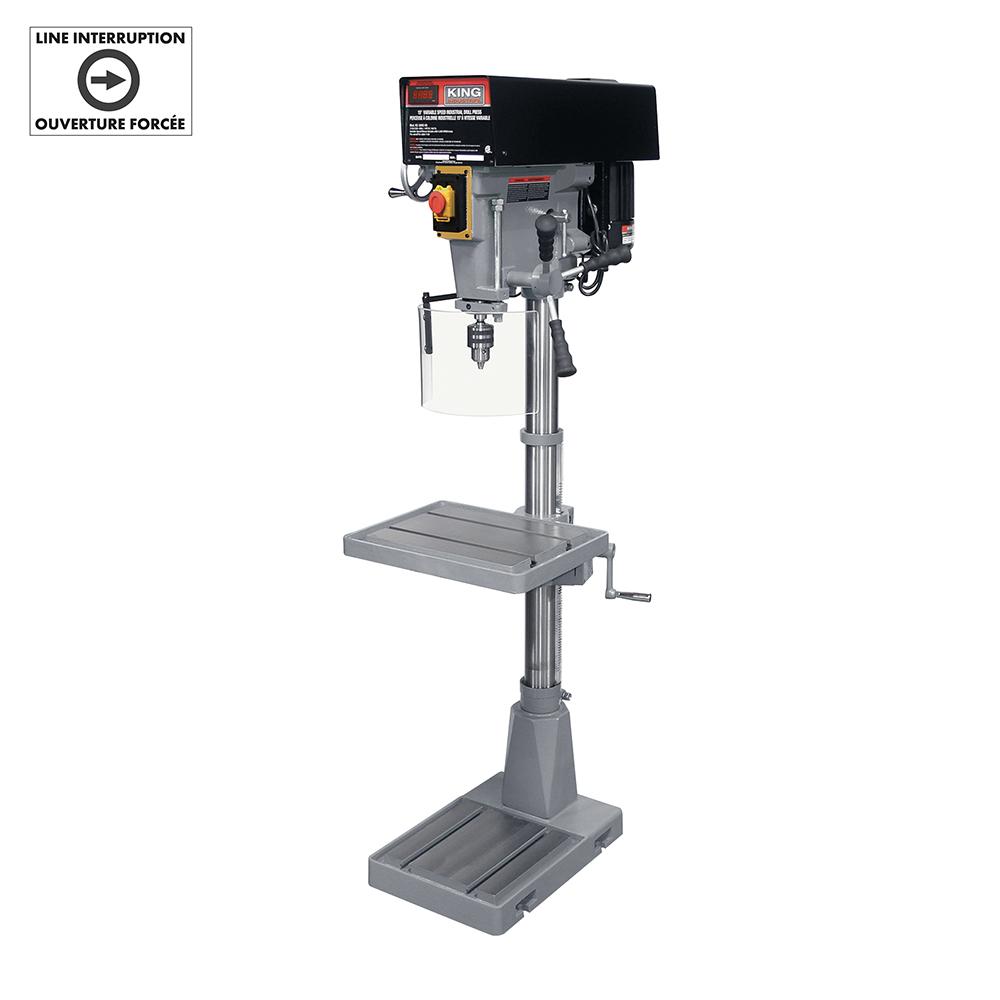

15'' Variable speed industrial drill press (KC-30HS-VS)
by King Canada
15'' Variable speed industrial drill press
Product Specification
Item #
KC-30HS-VS
Dimensions
Height: 71.50"
Width: 28.00"
Additional product details
Vendor Item #
KC-30HS-VS
Industrial Category
Power Tools
Industrial Subcategory
Power Drills
Industrial Subtype
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight
18'' x 28'' x 71-1/2'' / 310 lbs
Capacity
5/8''
Chuck size
5/8''
Item Length (inches)
18
Item Quantity
1
Item Weight (lbs)
310 lbs
Max. Distance chuck to base
7-1/2''
Max. Distance chuck to column
27-1/2''
Motor speed
14 Amp. @ 115v, 7 Amp. @ 230V
Package dimensions (LxWxH) / Weight
22'' x 32'' x 70'' / 375 lbs
Power cord length
115v
Product Series
KING INDUSTRIAL
Spec 01
Capacity: 5/8"
Spec 02
Chuck size: 5/8"
Spec 03
Swing: 15"
Spec 04
Max. Distance chuck to column: 7-1/2"
Spec 05
Max. Distance chuck to table: 27-1/2"
Spec 06
Stroke: 6"
Spec 07
Table size: 18" x 14"
Spec 08
Spindle taper: JT #3
Spec 09
Variable speeds: 400 - 5,000 RPM
Spec 10
Table t-slots: 9/16"
Spec 11
Motor/voltage: 14 Amp. @ 115v, 7 Amp. @ 230V
Spec 12
Pre-wired: 115v
Spec 13
Assembled dimensions (LxWxH) / Weight: 18" x 28" x 71-1/2" / 310 lbs
Spec 14
Packaging dimensions (LxWxH) / Weight: 22" x 32" x 70" / 375 lbs
Spindle stroke
JT #3
Steel drum capacity
6''
Suction head lift
15''
Table inserts
18'' x 14''
Table sizes (jointer/planer)
9/16''
UNSPSC Number
23241801
UPC Number
7 72995 01457 6
Variable speed range (optional setting)
400 - 5,000 RPM
Manufactured By
King Canada
Other Details:
- Comes with 5/8" drill chuck, chuck key, knock-out wedge and adjustment hex. keys
- Digital readout for precise spindle speed
- E-stop 2 step activation safety switch with line Voltage interruption in case of power failure
- Long 6” Stroke allows this drill press to drill deeper than most
- Machine and balanced cast-iron pulleys
- Massive cast-iron base, table and head for reduced vibrations during operations
- Powerful 1 HP Motor
- Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
- Safety guard with limit switch protection
- Variable speed handwheel sets the spindle speed using asymmetric drive system
