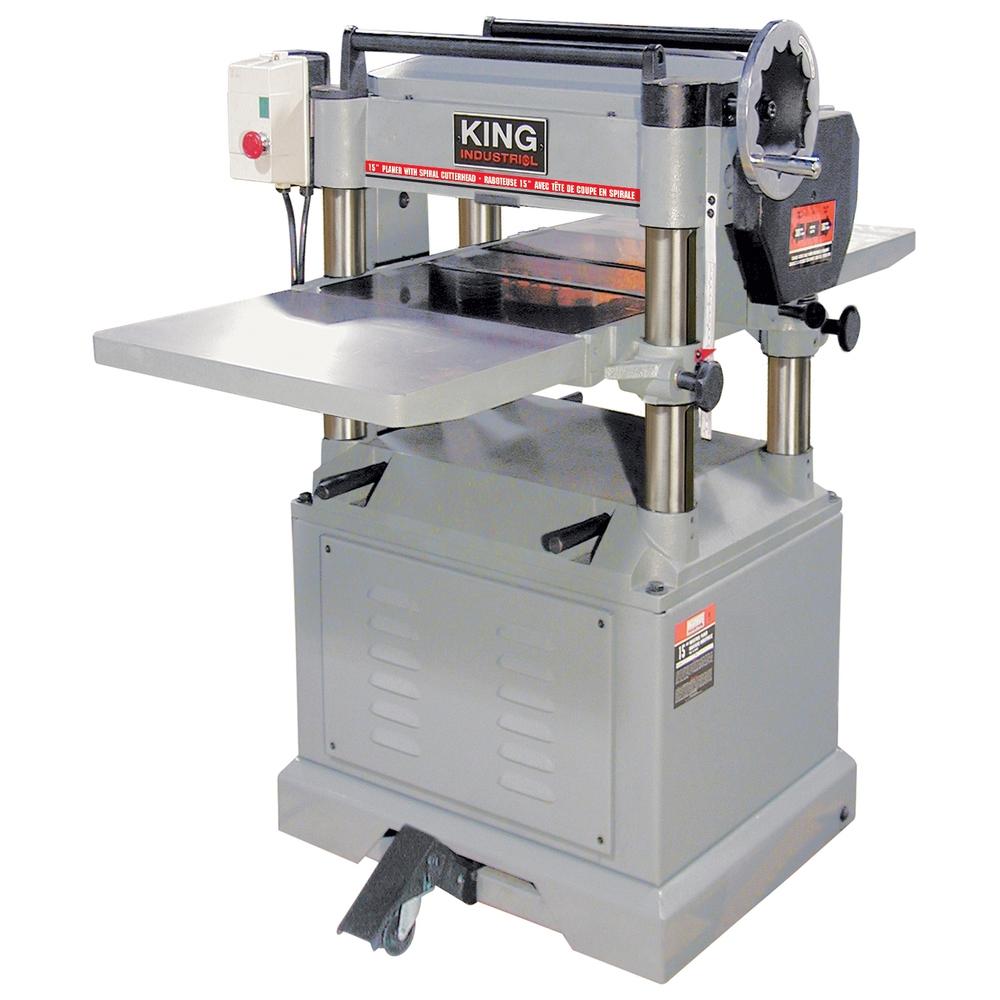

15" Industrial planer with spiral cutterhead

15" Industrial planer with spiral cutterhead

Call For Price
  • Part Number: KC-390FX
  • UPC:
  • Availability: Call for availability

Info & Guides

Video
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
15" Industrial planer with spiral cutterhead
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Planers, Jointers and Beveler
Category Level 4:
Planers and Accessories
Assembled dimensions (LxWxH) / Weight:
32-1/2'' x 42'' x 45'' / 625 lbs
Cutterhead diameter:
2-7/8''
Cutterhead speed:
5,000 RPM
Feed rate:
2 (16-30) FPM
Item Length (inches):
32.5
Item Quantity:
1
Item Weight (lbs):
625 lbs
Maximum depth of box:
1/8''
Maximum planing depth:
8''
Maximum planing thickness:
15''
Moteur:
15 Amp.
Number and range of modular pitches:
78-63
Number of knives:
64 (14 mm x 14 mm x 2 mm)
Package dimensions (LxWxH) / Weight:
31-1/8'' x 29-1/4'' x 47-1/2'' / 630 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Maximum planing width: 15"
Spec 02:
Maximum planing thickness: 8"
Spec 03:
Maximum depth of cut: 1/8"
Spec 04:
Cutterhead speed: 5,000 RPM
Spec 05:
Cutterhead diameter: 2-7/8"
Spec 06:
Number of knives / cutter inserts: 64 (14 mm x 14 mm x 2 mm)
Spec 07:
Feed rate: 2 (16-30) FPM
Spec 08:
Number of cuts per inch: 78-63
Spec 09:
Motor: 15 Amp.
Spec 10:
Voltage: 220V, 1 phase, 60 Hz
Spec 11:
Assembled dimensions (LxWxH) / Weight: 32-1/2" x 42" x 45" / 625 lbs
Spec 12:
Packaging dimensions (LxWxH) / Weight: 31-1/8" x 29-1/4" x 47-1/2" / 630 lbs
UNSPSC Number:
23231904
UPC Number:
7 72995 00746 2
Variable speeds (wood):
220V, 1 phase, 60 Hz
Other Details
A spiral cutterhead is 50% quieter than a conventional cutterhead
Anti-kickback fingers in front of the infeed roller to prevent wood kickback
Comes complete with cabinet stand and 4" dust collector outlet
Extension tables provide support for longer material
Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
Magnetic safety switch
Mobile base system built into the cabinet
Powerful 3 HP Motor
Stock return rollers on top of planer for multiple passes
Table raises and lowers on four precision ground columns for extra stability
