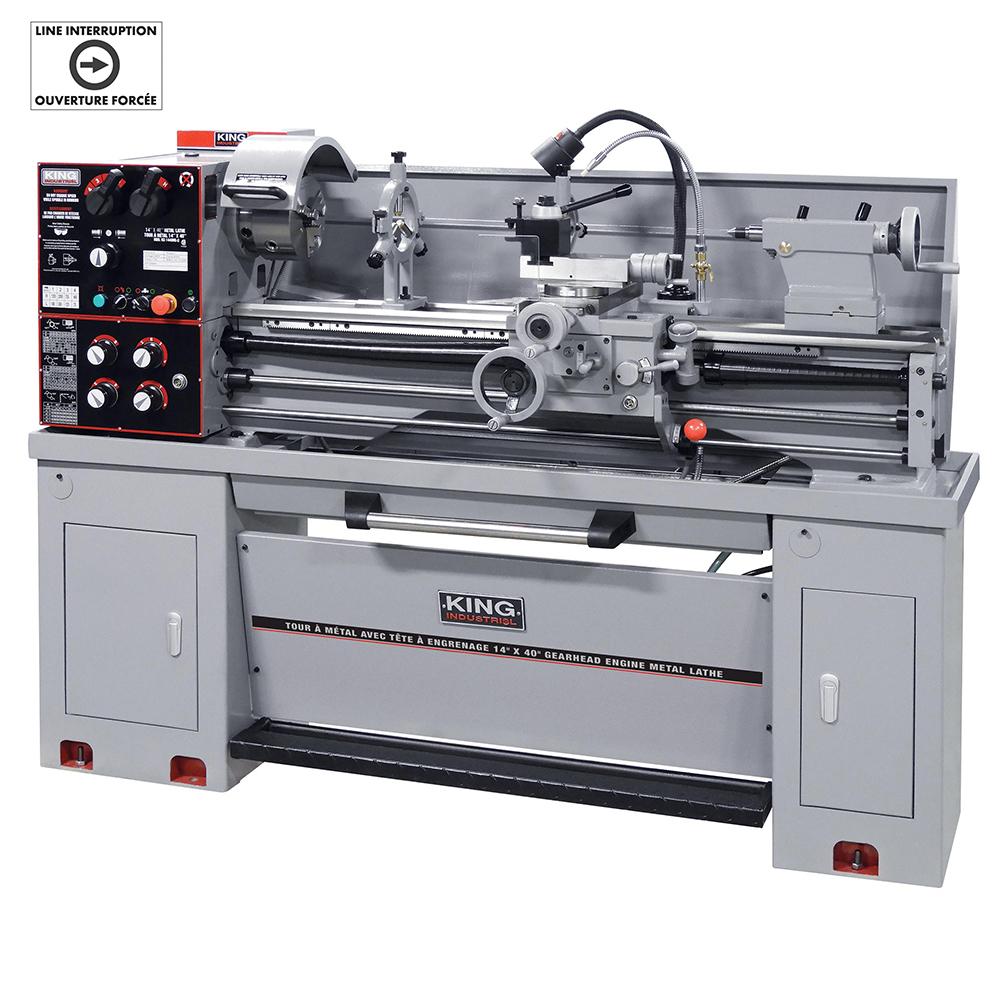

14" x 40" Metal lathe w/taper attachment

14" x 40" Metal lathe w/taper attachment

Call For Price
  • Part Number: KC-1440ML-2/KM-054
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
14" x 40" Metal lathe with taper attachment
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Specialty Finishing Tools
Category Level 4:
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight:
75'' x 32'' x 53'' / 1,150 lbs
Distance between centres:
40''
Item Length (inches):
75
Item Quantity:
1
Item Weight (lbs):
1150 lbs
Moteur:
11 Amp.
Overall width across forks:
74'' x 29-3/4'' x 58-1/4'' / 1,375 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Distance between centres: 40"
Spec 02:
Swing over bed: 14"
Spec 03:
Spindle bore: 2"
Spec 04:
Swing over cross slide: 8-5/8"
Spec 05:
Taper in headstock: MT #6
Spec 06:
Taper in tailstock: MT #3
Spec 07:
Width of bedways: 7-5/16"
Spec 08:
Total travel of cross slide: 6-3/16"
Spec 09:
Total travel of top slide: 3-1/2"
Spec 10:
Spindle speeds: 8 (70-2,000) RPM
Spec 11:
Thread cutting range: 34 (4-56 TPI) 26 (0.4-7 mm)
Spec 12:
Motor: 11 Amp.
Spec 13:
Voltage: 240V, 1 phase, 60 Hz
Spec 14:
Assembled dimensions (LxWxH) / Weight: 75" x 32" x 53" / 1,150 lbs
Spec 15:
Package dimensions (LxWxH) / Weight: 74" x 29-3/4" x 58-1/4" / 1,375 lbs
Spindle:
2''
Spindle speed:
8 (70-2,000) RPM
Swing over base:
14''
Swing over bed and carriage:
8-5/8''
Tank size:
MT #6
Taper in spindle bore:
MT #3
Thread cutting:
34 (4-56 TPI) 26 (0.4-7 mm)
Total surface of work table:
6-3/16''
Total travel of cross slide:
3-1/2''
UNSPSC Number:
23242300
UPC Number:
7 72995 00271 9
Variable speeds (wood):
240V, 1 phase, 60 Hz
Width of bed:
7-5/16''
Other Details
2" Spindle bore capacity
Also comes with a thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex. keys and cabinet stand (with foot brake incorporated)
Comes complete with 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest, 12" D1-5 camlock face plate, coolant system, full length splash guard
Guideway and gears in headstock are all hardened and precision ground
Line interruption switch system needs a restart after a power failure
Powerful 2 HP Motor
Safety guard with limit switch protection
Spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
