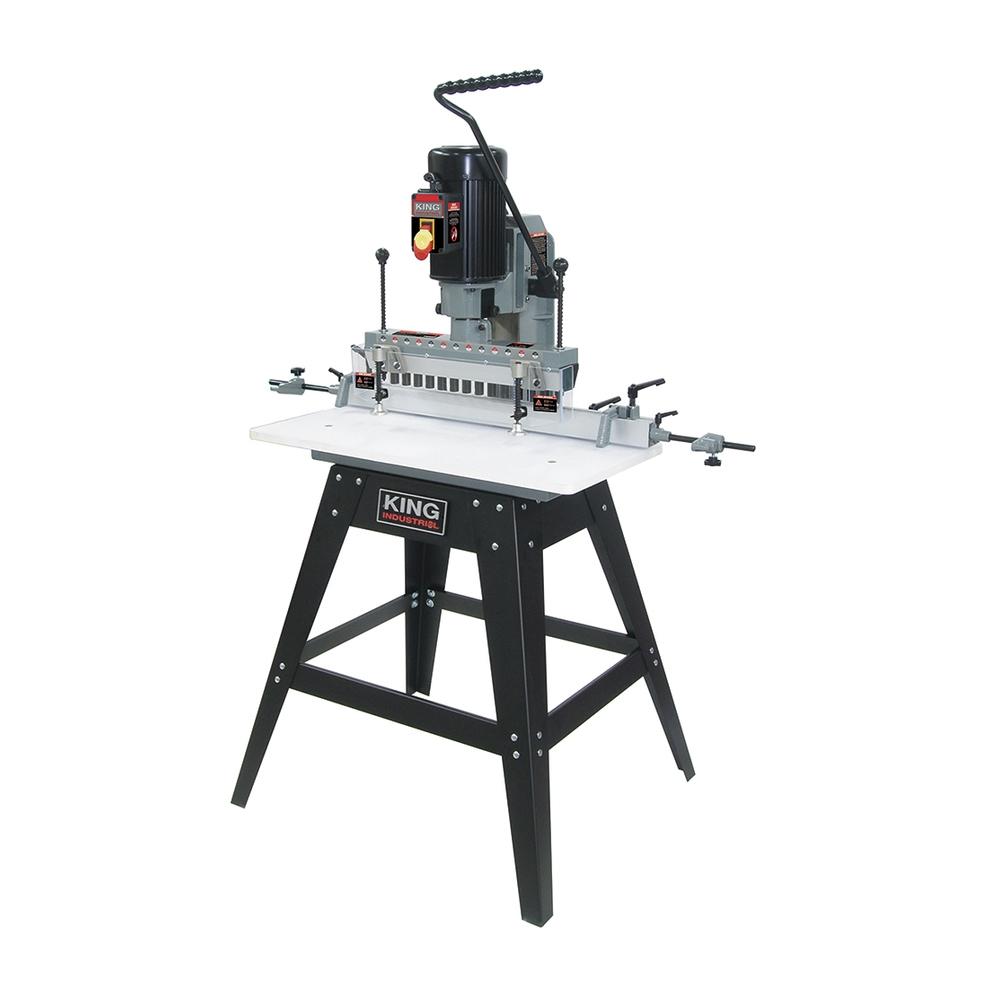

13 Spindle line boring machine

13 Spindle line boring machine

Call For Price
  • Part Number: KC-1300BM
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
13 Spindle line boring machine
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machinery
Industrial Subtype:
Drilling Machines
Assembled dimensions (LxWxH) / Weight:
76'' x 28-1/2'' x 67'' / 215 lbs
Collet size:
3/8'' (10 mm)
Item Length (inches):
76
Item Quantity:
1
Item Weight (lbs):
215 lbs
Maximum depth of cut at 45˚ (10"/12"):
2-1/2''
Maximum square dimension:
5-1/2''
Moteur:
1-1/2 HP, 12.6 Amp.
Number of sanding drums:
13
Package dimensions (LxWxH) / Weight:
34-1/4'' x 21-1/4'' x 28-1/4'' / 225 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Number of spindles: 13
Spec 02:
Collet size: 3/8" (10 mm)
Spec 03:
Spindle centres: 32 mm (1-1/4")
Spec 04:
Spindle speed: 3,500 RPM
Spec 05:
Table size: 31-1/2" x 15-3/4"
Spec 06:
Maximum depth of stroke: 2-1/2"
Spec 07:
Maximum stock thickness: 5-1/2"
Spec 08:
Motor: 1-1/2 HP, 12.6 Amp.
Spec 09:
Voltage: 110V, 1 phase, 60 Hz
Spec 10:
Assembled dimensions (LxWxH) / Weight: 76" x 28-1/2" x 67" / 215 lbs
Spec 11:
Packaging dimensions (LxWxH) / Weight: 34-1/4" x 21-1/4" x 28-1/4" / 225 lbs
Spindle bore diameter:
32 mm (1-1/4'')
Spindle size (RH thread):
3,500 RPM
Table inserts:
31-1/2'' x 15-3/4''
UNSPSC Number:
23241601
UPC Number:
7 72995 01443 9
Variable speeds (wood):
110V, 1 phase, 60 Hz
Other Details
13 spindles spaced 32mm (1-1/4") on centre, allowing drilling up to 13 evenly spaced holes
Comes complete with open steel stand
Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications
Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
Large 31-1/2" x 15-3/4" melamine table top
Powerful 1.5 HP, 110V motor
