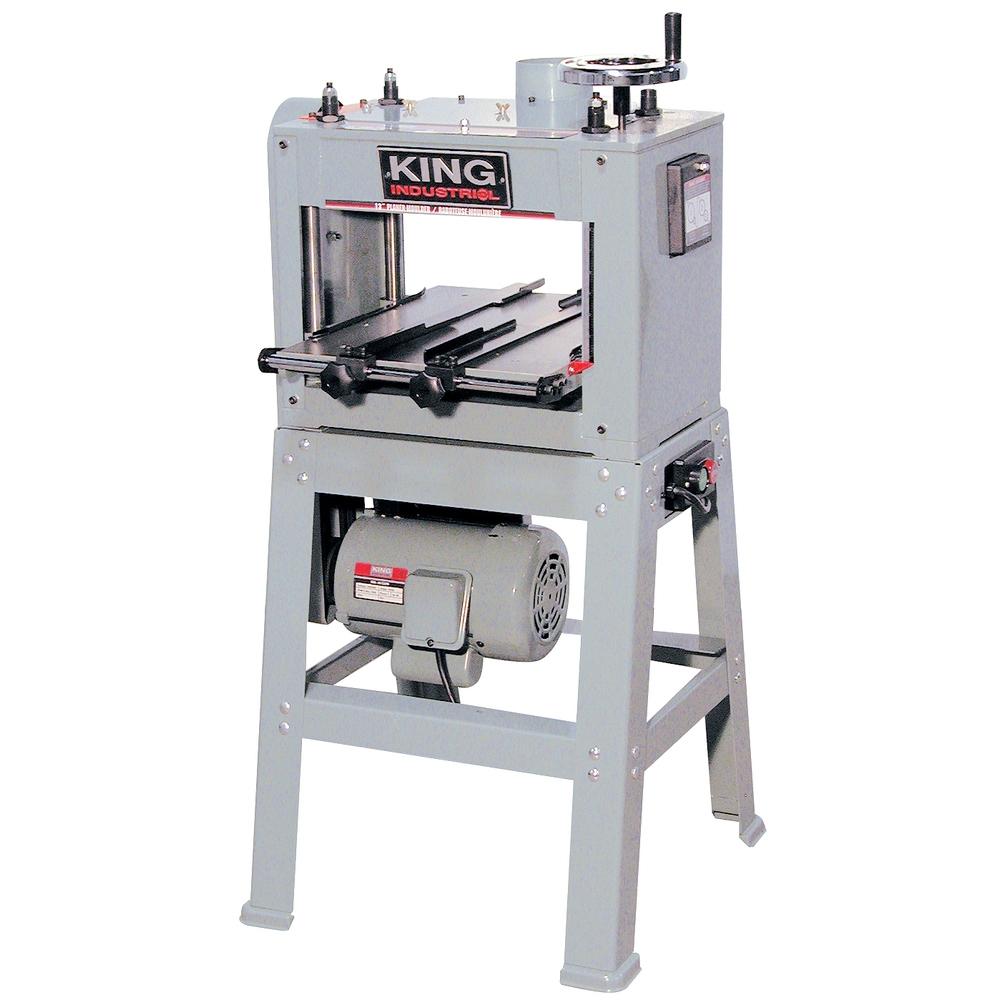

13" Planer/moulder

13" Planer/moulder

Call For Price
  • Part Number: KC-235PM
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
13" Planer / moulder
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Planers, Jointers and Beveler
Category Level 4:
Planers and Accessories
Assembled dimensions (LxWxH) / Weight:
21'' x 12'' x 50'' / 231 lbs21'' x 12'' x 50'' / 231 lbs
Cutterhead speed:
4,500 RPM
Item Length (inches):
21
Item Quantity:
1
Item Weight (lbs):
231 lbs
Maximum load weight:
3/4''
Maximum moulding depth:
6-1/8''
Maximum moulding thickness:
13''
Maximum operating pressure:
1/8''
Maximum planing depth:
6-1/8''
Maximum planing thickness:
13''
Minimum length of board:
6.7''
Minimum length of stock for moulding:
6.7''
Moteur:
18 Amp. @ 110V, 9 Amp. @ 220V
Motors (lathe/mill):
10 SFPM
Number of feed rollers:
3
Package dimensions (LxWxH) / Weight:
33-1/4'' x 19-1/2'' x 23-5/8'' / 238 lbs
Pinless blade length:
20 SFPM
Power cord length:
110V
Product Series:
KING INDUSTRIAL
Spec 01:
Maximum planing width: 13"
Spec 02:
Maximum moulding width: 13"
Spec 03:
Maximum planing thickness: 6-1/8"
Spec 04:
Maximum moulding thickness: 6-1/8"
Spec 05:
Minimum length of stock for planing: 6.7"
Spec 06:
Minimum length of stock for moulding: 6.7"
Spec 07:
Maximum planing depth: 1/8"
Spec 08:
Maximum moulding depth: 3/4"
Spec 09:
Cutterhead speed: 4,500 RPM
Spec 10:
Number of knives: 3
Spec 11:
Planing feed rate: 20 SFPM
Spec 12:
Moulding feed rate: 10 SFPM
Spec 13:
Motor: 18 Amp. @ 110V, 9 Amp. @ 220V
Spec 14:
Voltage: 110/220V, 1 phase, 60 Hz
Spec 15:
Pre-wired: 110V
Spec 16:
Assembled dimensions (LxWxH) / Weight: 21" x 12" x 50" / 231 lbs21" x 12" x 50" / 231 lbs
Spec 17:
Packaging dimensions (LxWxH) / Weight: 33-1/4" x 19-1/2" x 23-5/8" / 238 lbs
UNSPSC Number:
23231904
UPC Number:
7 72995 00233 7
Variable speeds (wood):
110/220V, 1 phase, 60 Hz
Other Details
Comes complete with stand, planing knives, setting gauge and 4" dust chute for dust collector hook-up
Double drive belt system
Jack Screw cutterhead system - Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
Moulding cutterhead guide system - Specially designed for guiding the workpiece into the moulding cutters
Powerful 1.5 HP Motor
Table raises and lowers on four precision ground columns
