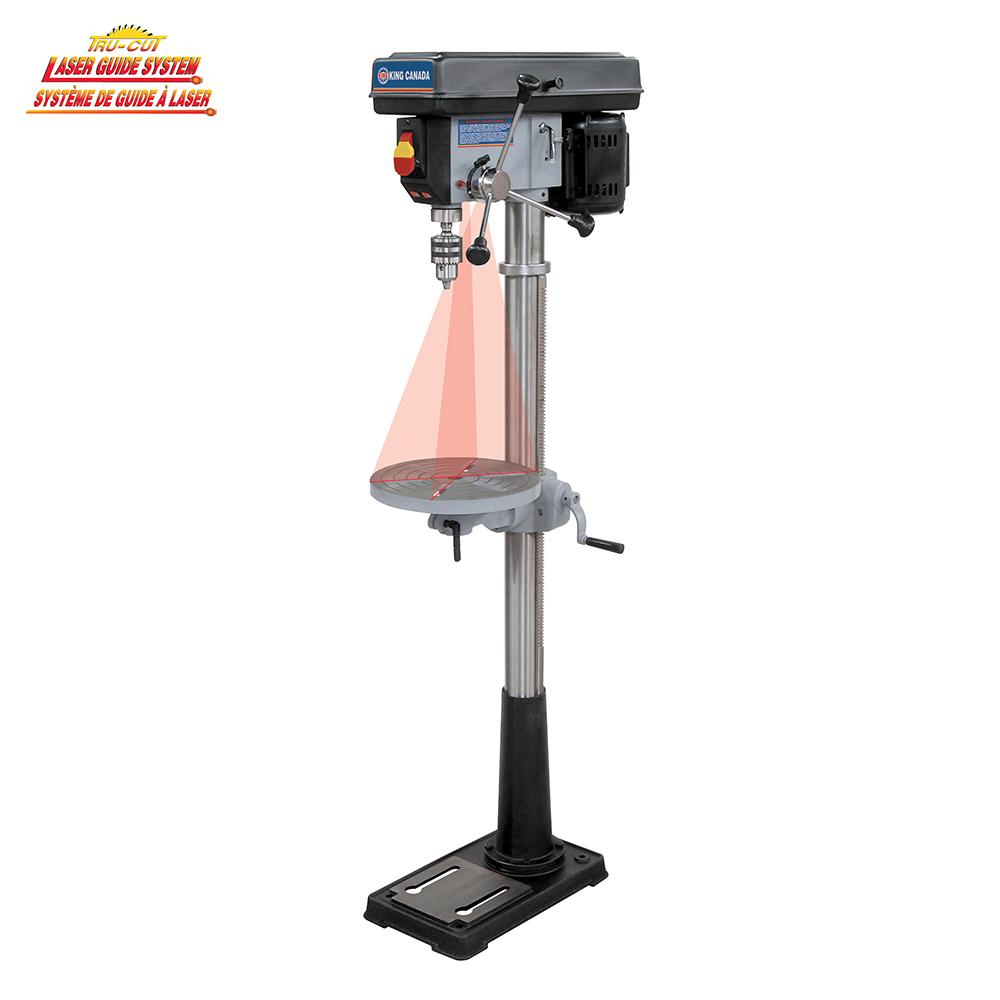

13" Floor model drill press with dual laser guide system

13" Floor model drill press with dual laser guide system

Call For Price
  • Part Number: KC-116FN
  • UPC:
  • Availability: Call for availability

Info & Guides

Video
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
13" Floor model drill press with dual laser guide system
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Power Drills
Industrial Subtype:
Floor Standing and Bench Mounted Drill Presses
Assembled dimensions (LxWxH) / Weight:
11-3/4'' x 24'' x 62-1/2'' / 120 lbs
Chuck size:
5/8''
Item Length (inches):
11.75
Item Quantity:
1
Item Weight (lbs):
120 lbs
Max. Distance chuck to table:
45''
Max. Distance from chuck to column:
23-1/2''
Moteur:
7.5 Amp.
Package dimensions (LxWxH) / Weight:
55-1/4'' x 19-1/4'' x 9-1/2'' / 130 lbs
Product Series:
KING CANADA
Qty:
55 mm
Spec 01:
Chuck size: 5/8"
Spec 02:
Swing: 13"
Spec 03:
Stroke: 3-1/8"
Spec 04:
Max. Distance from chuck to table: 23-1/2"
Spec 05:
Max. Distance from chuck to base: 45"
Spec 06:
Table size: 11-3/4"
Spec 07:
Spindle taper: MT #2
Spec 08:
Quill diameter: 55 mm
Spec 09:
Speeds: 16 (220-3,600) RPM
Spec 10:
Motor: 7.5 Amp.
Spec 11:
Voltage: 120V, 1 phase, 60 Hz
Spec 12:
Assembled dimensions (LxWxH) / Weight: 11-3/4" x 24" x 62-1/2" / 120 lbs
Spec 13:
Packaging dimensions (LxWxH) / Weight: 55-1/4" x 19-1/4" x 9-1/2" / 130 lbs
Speed (wheel / motor):
16 (220-3,600) RPM
Spindle stroke:
MT #2
Steel drum capacity:
3-1/8''
Suction head lift:
13''
Table inserts:
11-3/4''
UNSPSC Number:
23241801
UPC Number:
7 72995 01161 2
Variable speeds (wood):
120V, 1 phase, 60 Hz
Other Details
13" floor drill press with dual intersecting adjustable laser guides
16 Speed (220-3,600 spindle RPM)
45° tilting table for angular drilling
Accepts up to 5/8" shanked drill bits
Comes with 5/8" drill chuck, chuck key and chuck key holder
Halogen light incorporated into head (halogen light bulb included)
Heavy-duty cast-iron table and base
Positive depth stop for quick and easy adjustment
Powerful 7.5 Amp. Motor
Spindle is supported by high quality ball bearings
