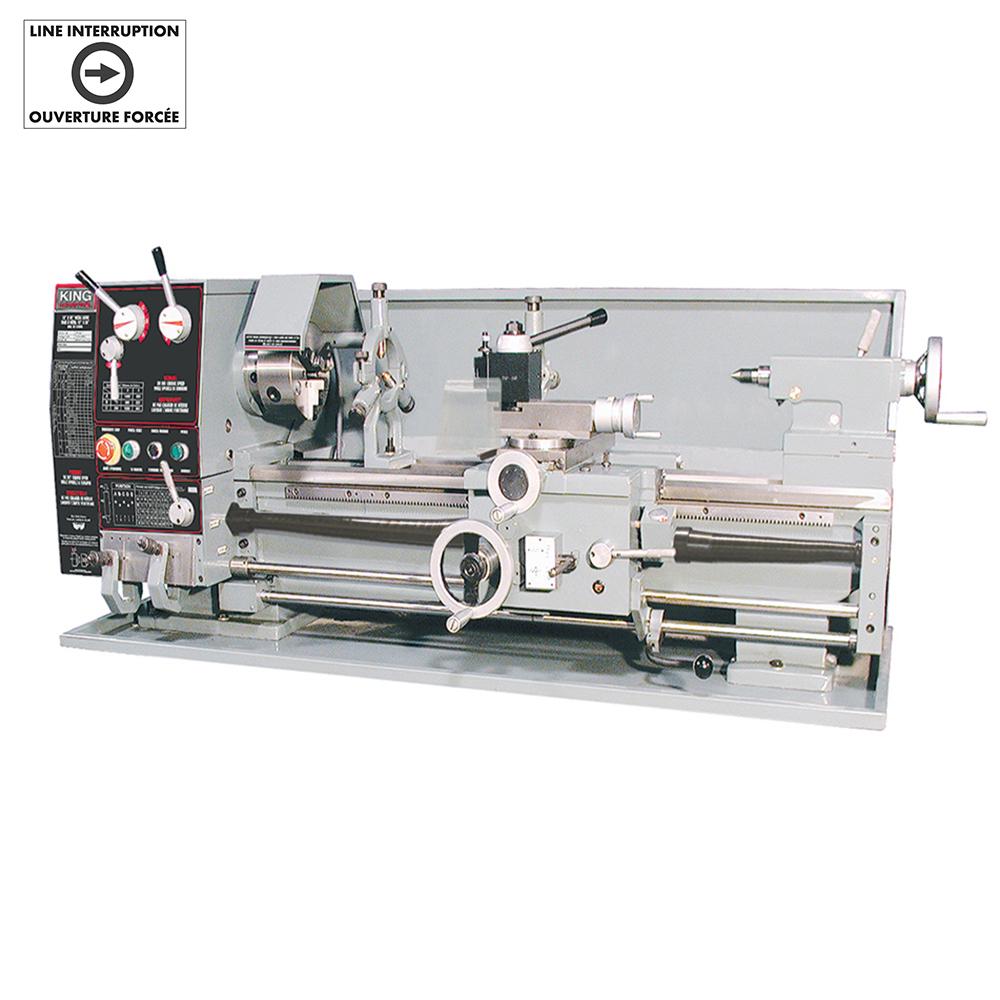

12" x 36" Gearhead metal lathe (KC-1236ML)
by King Canada
12" x 36" Gearhead metal lathe
Product Specification
Item #
KC-1236ML
Dimensions
Height: 28.00"
Width: 28.00"
Additional product details
Vendor Item #
KC-1236ML
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight
65'' x 28'' x 28'' / 710 lbs
Distance between centres
36''
Item Length (inches)
65
Item Quantity
1
Item Weight (lbs)
710 lbs
Moteur
8.7 Amp.
Package dimensions (LxWxH) / Weight
65-3/8'' x 29'' x 29'' / 925 lbs
Product Series
KING INDUSTRIAL
Spec 01
Distance between centres: 36"
Spec 02
Swing over bed: 12"
Spec 03
Spindle bore: 1-1/2"
Spec 04
Swing over cross slide: 7-1/4"
Spec 05
Taper in headstock: MT #5
Spec 06
Taper in tailstock: MT #3
Spec 07
Width of bedways: 7-1/4"
Spec 08
Total travel of cross slide: 6-3/8"
Spec 09
Total travel of top slide: 3-3/8"
Spec 10
Spindle speeds: 9 (60-1,500) RPM
Spec 11
Thread cutting range: 40 (4-112 TPI) 30 (.2-4.5mm)
Spec 12
Motor: 8.7 Amp.
Spec 13
Voltage: 220V, 1 phase, 60 Hz
Spec 14
Assembled dimensions (LxWxH) / Weight: 65" x 28" x 28" / 710 lbs
Spec 15
Packaging dimensions (LxWxH) / Weight: 65-3/8" x 29" x 29" / 925 lbs
Spindle
1-1/2''
Spindle speed
9 (60-1,500) RPM
Swing over base
12''
Swing over bed and carriage
7-1/4''
Tank size
MT #5
Taper in spindle bore
MT #3
Thread cutting
40 (4-112 TPI) 30 (.2-4.5mm)
Total surface of work table
6-3/8''
Total travel of cross slide
3-3/8''
UNSPSC Number
23242300
UPC Number
7 72995 00268 9
Variable speeds (wood)
220V, 1 phase, 60 Hz
Width of bed
7-1/4''
Manufactured By
King Canada
Other Details:
- Also comes with a MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex. keys
- Comes complete with 6"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool post, steady rest, follow rest, 10" DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center
- Guideway and gears in headstock are all hardened and precision ground
- Line interruption switch system needs a restart after a power failure
- Powerful 1.5 HP Motor
- Safety guard with limit switch protection
$
