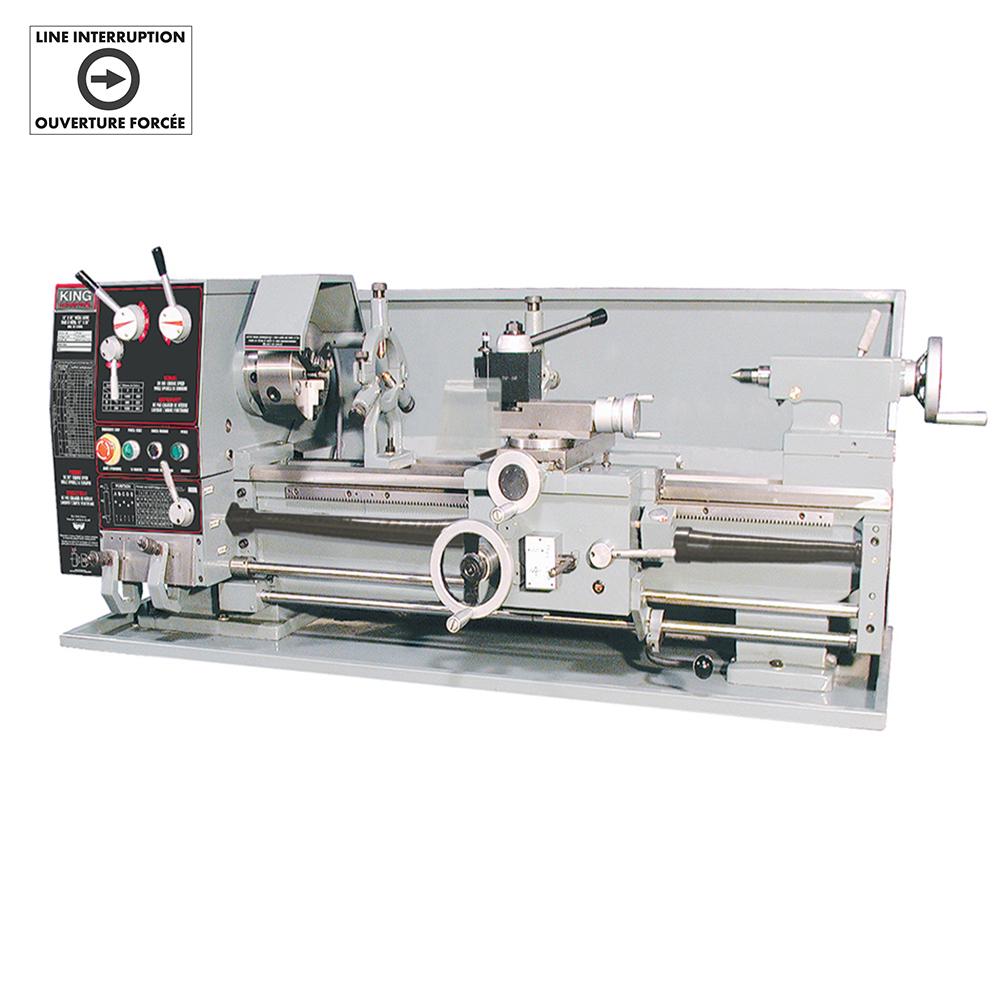

12" x 36" Gearhead metal lathe with taper attachment

12" x 36" Gearhead metal lathe with taper attachment

Call For Price
  • Part Number: KC-1236ML/KM-053
  • UPC:
  • Availability: Call for availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
12" x 36" Gearhead metal lathe with taper attachment
Specifications
Details
Industrial Category:
Power Tools
Industrial Subcategory:
Finishing Tools
Industrial Subtype:
Specialty Finishing Tools
Category Level 4:
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight:
65'' x 28'' x 28'' / 710 lbs
Distance between centres:
36''
Item Length (inches):
65
Item Quantity:
1
Item Weight (lbs):
710 lbs
Moteur:
8.7 Amp.
Package dimensions (LxWxH) / Weight:
65-3/8'' x 29'' x 29'' / 925 lbs
Product Series:
KING INDUSTRIAL
Spec 01:
Distance between centres: 36"
Spec 02:
Swing over bed: 12"
Spec 03:
Spindle bore: 1-1/2"
Spec 04:
Swing over cross slide: 7-1/4"
Spec 05:
Taper in headstock: MT #5
Spec 06:
Taper in tailstock: MT #3
Spec 07:
Width of bedways: 7-1/4"
Spec 08:
Total travel of cross slide: 6-3/8"
Spec 09:
Total travel of top slide: 3-3/8"
Spec 10:
Spindle speeds: 9 (60-1,500) RPM
Spec 11:
Thread cutting range: 40 (4-112 TPI) 30 (.2-4.5mm)
Spec 12:
Motor: 8.7 Amp.
Spec 13:
Voltage: 220V, 1 phase, 60 Hz
Spec 14:
Assembled dimensions (LxWxH) / Weight: 65" x 28" x 28" / 710 lbs
Spec 15:
Packaging dimensions (LxWxH) / Weight: 65-3/8" x 29" x 29" / 925 lbs
Spindle:
1-1/2''
Spindle speed:
9 (60-1,500) RPM
Swing over base:
12''
Swing over bed and carriage:
7-1/4''
Tank size:
MT #5
Taper in spindle bore:
MT #3
Thread cutting:
40 (4-112 TPI) 30 (.2-4.5mm)
Total surface of work table:
6-3/8''
Total travel of cross slide:
3-3/8''
UNSPSC Number:
23242300
UPC Number:
7 72995 00273 3
Variable speeds (wood):
220V, 1 phase, 60 Hz
Width of bed:
7-1/4''
Other Details
Also comes with a MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex. keys
Comes complete with 6"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool post, steady rest, follow rest, 10" DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center
Guideway and gears in headstock are all hardened and precision ground
Line interruption switch system needs a restart after a power failure
Powerful 1.5 HP Motor
Safety guard with limit switch protection
