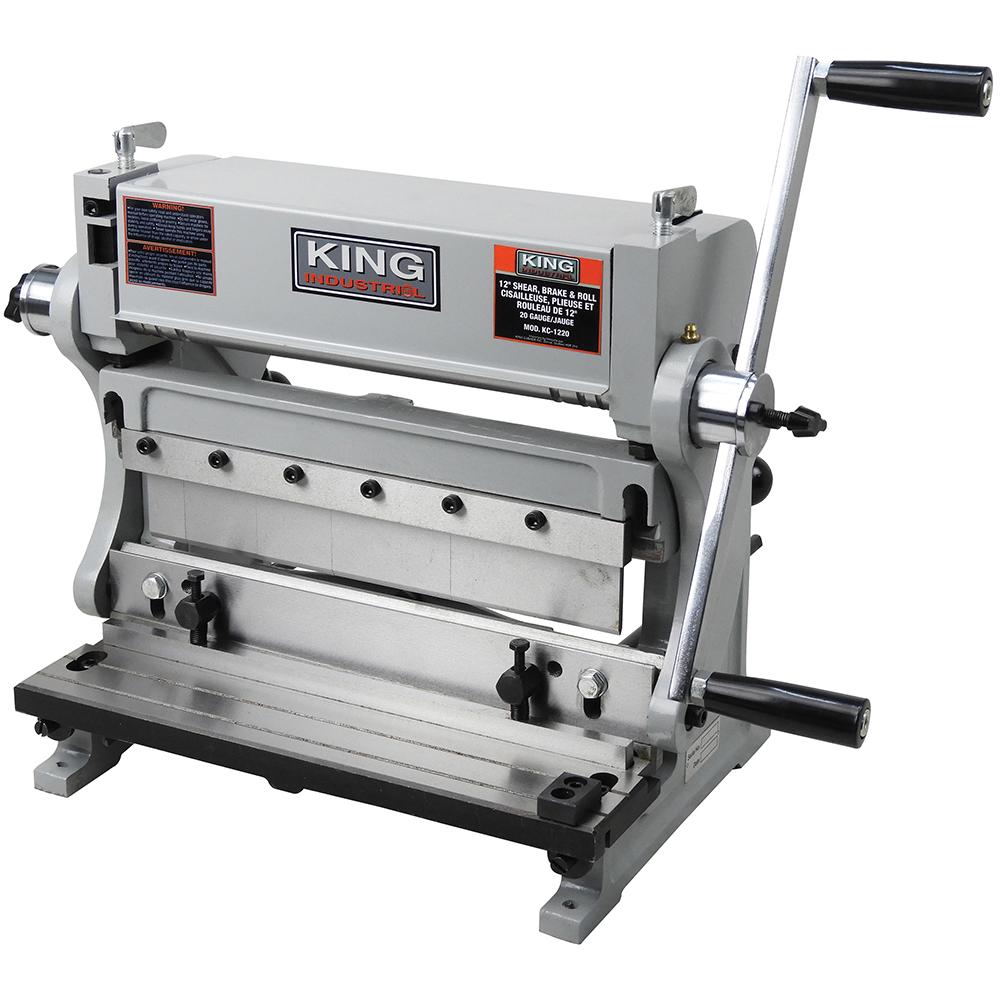

12" x 20 Ga. 3 in 1 brake, shear & roll (KC-1220)
by King Canada
12" x 20 Ga. 3-in-1 brake, shear & roll
Product Specification
Item #
KC-1220
Dimensions
Height: 15.00"
Width: 16.00"
Additional product details
Vendor Item #
KC-1220
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Metal Forming Machines
Assembled dimensions (LxWxH) / Weight
20'' x 16'' x 15'' / 95 lbs
Brake - male die sizes
4'', 3'', 2x2'', 1''
Brake - material stop range
1-3/4'' - 10-1/4''
Brake - maximum thickness (mild steel)
20 Gauge
Brake - shut height
2-1/2''
Item Length (inches)
20
Item Quantity
1
Item Weight (lbs)
95 lbs
Main table size
2-1/2'' - 10-5/8''
Minimum length of stock for planing
13/16''
Minimum reverse bend
1-5/8'' id
Package dimensions (LxWxH) / Weight
19-1/4'' x 13'' x 16-1/2'' / 99 lbs
Product Series
KING INDUSTRIAL
Shear - material stop range
12''
Shear - maximum length
20 Gauge
Sliding table travel (right-left)
10-3/4''
Slip roll - maximum length
20 Gauge
Slip roll - maximum thickness (mild steel)
3
Slip roll - number of rolls
1-1/2''
Spec 01
Shear - maximum thickness (mild steel): 20 Gauge
Spec 02
Shear - maximum length: 12"
Spec 03
Material stop range: 2-1/2" - 10-5/8"
Spec 04
Brake - maximum thickness (mild steel): 20 Gauge
Spec 05
Brake - shut height: 2-1/2"
Spec 06
Brake - material stop range: 1-3/4" - 10-1/4"
Spec 07
Brake - male die sizes: 4", 3", 2x2", 1"
Spec 08
Slip roll - number of rolls: 3
Spec 09
Slip roll - maximum thickness (mild steel): 20 Gauge
Spec 10
Slip roll - maximum length: 10-3/4"
Spec 11
Slip roll - roller diameter: 1-1/2"
Spec 12
Minimum roll diameter: 1-5/8" id
Spec 13
Minimum radius: 13/16"
Spec 14
Wire groove diameters: 5/64", 7/64", 9/64", 11/64", 13/64", 15/64"
Spec 15
Assembled dimensions (LxWxH) / Weight: 20" x 16" x 15" / 95 lbs
Spec 16
Packaging dimensions (LxWxH) / Weight: 19-1/4" x 13" x 16-1/2" / 99 lbs
UNSPSC Number
23181511
UPC Number
7 72995 01283 1
Width of bedways
5/64'', 7/64'', 9/64'', 11/64'', 13/64'', 15/64''
Manufactured By
King Canada
Other Details:
- Bed is precision ground for an accurate working surface
- Dual edge, reversible shear blade
- Includes adjustable length stop, height stop block and extension bars with 90° angles
- One female "V” shaped die
- Slip rolls are precision turned, ground and polished with wire grooves
- Sturdy cast-iron frame
