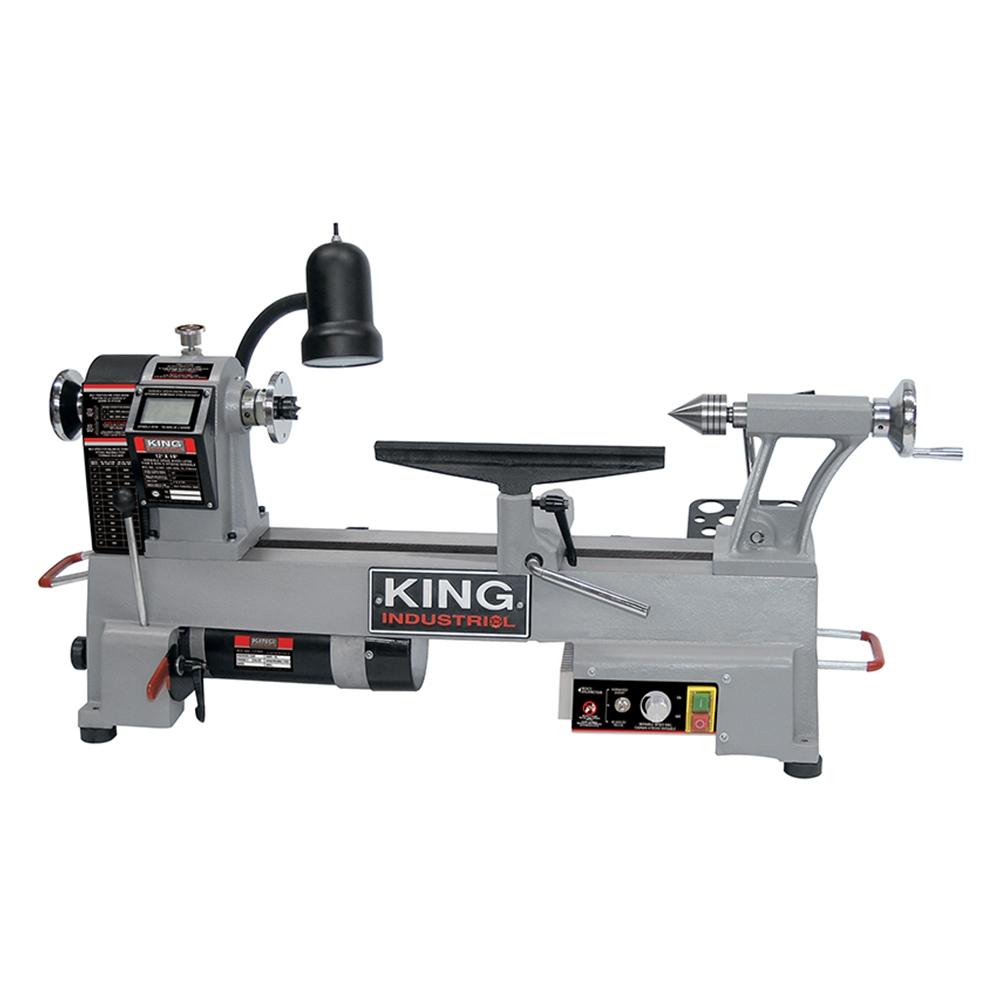

12" x 18" Variable speed wood lathe (KWL-1218VS)
by King Canada
12" x 18" Variable speed wood lathe
Downloads
Product Specification
Item #
KWL-1218VS
Dimensions
Height: 18.00"
Width: 15.00"
Additional product details
Vendor Item #
KWL-1218VS
Industrial Category
Power Tools
Industrial Subcategory
Finishing Tools
Industrial Subtype
Specialty Finishing Tools
Category Level 4
Lathe Machine and Accessories
Assembled dimensions (LxWxH) / Weight
39'' x 15'' x 18'' / 105 lbs
Dc motor
1 HP / 7 Amp.
Distance between centres
18''
Gap in bed distance
1-1/4''
Headstock and tailstock taper
MT #2
Item Length (inches)
39
Item Quantity
1
Item Weight (lbs)
105 lbs
Package dimensions (LxWxH) / Weight
36'' x 14-1/2'' x 18-3/8'' / 110 lbs
Product Series
KING INDUSTRIAL
Spec 01
Swing over bed: 12"
Spec 02
Distance between centres: 18"
Spec 03
Spindle size: 1" x 8 TPI
Spec 04
Spindle bore: 3/8"
Spec 05
Spindle speeds: 2 (450-1,800 / 950-3,800 RPM)
Spec 06
Headstock and tailstock taper: MT #2
Spec 07
Gap in bed distance : 1-1/4"
Spec 08
Dc motor : 1 HP / 7 Amp.
Spec 09
Voltage: 110V, 1 phase, 60 Hz
Spec 10
Assembled dimensions (LxWxH) / Weight: 39" x 15" x 18" / 105 lbs
Spec 11
Packaging dimensions (LxWxH) / Weight: 36" x 14-1/2" x 18-3/8" / 110 lbs
Spindle
3/8''
Spindle openings on table
1'' x 8 TPI
Spindle speed
2 (450-1,800 / 950-3,800 RPM)
Swing over base
12''
UNSPSC Number
23242300
UPC Number
7 72995 01279 4
Variable speeds (wood)
110V, 1 phase, 60 Hz
Manufactured By
King Canada
Other Details:
- 1 HP high performance DC motor
- 24 indexing positions with spindle lock
- Comes complete with 3" faceplate, 6" and 12" tool rests with 1" post diameter, MT#2 spur centre and MT#2 heavy-duty live centre, safety goggles, knock-out rod, tool storage rack, screwdriver and 4 hex. keys
- Heavy-duty precision cast iron bed ensures stability, accepts optional extension bed for turning operations up to 44"
- Precise spindle speed digital readout
- Reliable single board computer microprocessor for precise control
- Variable speed from 450 - 3,800 RPM
- Work light with 18" flex. shaft for improved visibility during intricate work
